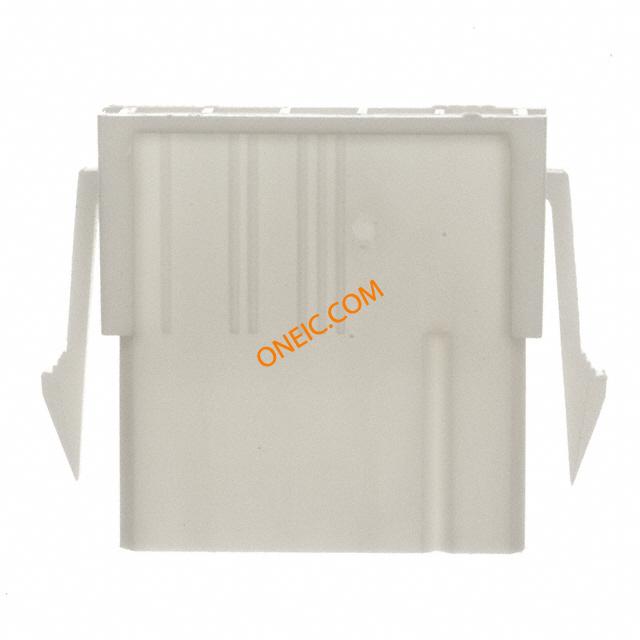

点击放大查看
39-01-4053
| 制造商 | Molex, LLC |
| 描述 | CONN PLUG 5POS VERT PANEL MOUNT Plug Housing 4.20mm Dual row,5way Headers & Wire Housings MINI-FIT JR. PLUG 94 Conn Housing PL 5 POS 4.2mm Crimp ST Panel Mount Bag Molex MINI-FIT JR. 系列 4.2mm 节距 5 路 直 公 面板安装 压接连接器外壳 |
| 分类 |
商业参数
| 商标名 | Mini-Fit Jr. | 零件号别名 | 0039014053 5559-05P2-210 |
| 产品类别 | Headers & Wire Housings | 标准包装数量 | 1 |
| 工厂包装数量 | 3000 | ||
合规参数
| RoHS | Compliant | ||
电气参数
| 额定电压 | 600 V | 最大额定电流 | 11 A, 8 A |
| 连接器类型 - 电压输入 | Male | ||
机械参数
| 颜色 | Natural | 深度 | 23.9mm |
| 间距 | 0.165" (4.20mm) | 宽度 | 7.4mm |
| 长度 | 22.2mm | 包装方式 | Bulk |
| 导线线规 | 20-16 | 方向 | 直 |
| 触头类型 | Male Pin | 安装类型 | Panel Mount, Snap-In |
| 连接器类型 | Plug | 紧固类型 | Locking Ramp |
| 排数 | 1 | 壳体材料 | Nylon |
| 触点数 | 5 | 接触件端接 | Crimp |
| 位数 | 5 | ||
产品信息
| 备注 | Contacts Not Provided | 类型 | Plug Housing |
| 连接器性别 | Male | 系列 | 5559 |
| CAD图纸 | 3D CAD Model | 产品子类型 | Wire Housings |
| 基础产品编号 | 5559 | 适用产品/相关产品 | Mini-Fit Jr. Plug |
