| 制造商 | Molex, LLC |

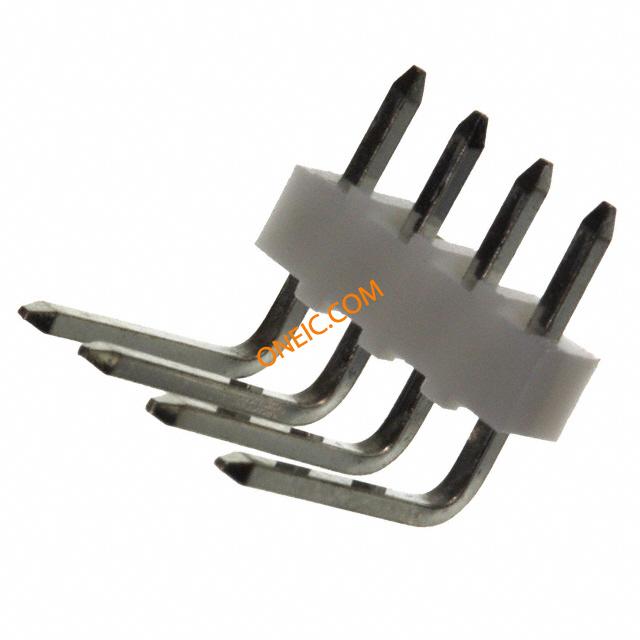

| 描述 | CONN HEADER 4POS .100 R/A TIN Molex 4094 Series 2.54mm Pitch 4 Way 1 Row Right Angle PCB Header, Solder Termination, 4A Headers & Wire Housings R/A PCB HDR 4P TIN PLATING Conn Unshrouded Header HDR 4 POS 2.54mm Solder RA Thru-Hole Bag HEADER, R/A, SQ PIN, 0.1", 4WAY .100 RT Angle:4 Circuits Molex KK 254 系列 2.54mm节距 4路 (1排) 直角 PCB 针座, 焊接端接, 4A , 通孔 |
| 分类 |
商业参数
| 商标名 | KK | 零件号别名 | 0022052041 A-4094-04A102 |
| 产品类别 | Headers & Wire Housings | 标准包装数量 | 10 |
| 工厂包装数量 | 2000 | ||
合规参数
| RoHS | Compliant | 海关税号 | 85369010 |
| 认证机构 | :CSA, UL | 材料阻燃等级 | :UL94V-0 |
电气参数
| 额定电压 | 250 V | 极数 | :4 |
| 工作电压 | :250V | 接触电阻 | :20mohm |
| 最大额定电流 | 4A | ||
机械参数
| 颜色 | White | 间距 | 0.100" (2.54mm) |
| 重量 | 0.02 | 材料（通用） | :Nylon |
| 包装方式 | Bulk | 端接方式 | Solder |
| 触头类型 | Male Pin | 引脚间距 | :2.54mm |
| 安装类型 | Through Hole, Right Angle | 释放力 | :0.57N |
| 连接器类型 | Header, Unshrouded | 接触镀层 | Tin |
| 排数 | 1 | 插入力 | :2N |
| 触头材料 | Brass | 壳体材料 | Nylon |
| 端接样式 | Through Hole | 连接器颜色 | :White |
| 触点数 | 4 | 接触件端接 | :Solder |
| 位数 | 4 | 接触长度 - 配合 | 0.369" (9.37mm) |
| 接触镀层厚度 | 200µin (5.08µm) | ||
产品信息
| 类型 | Unshrouded Header | 连接器性别 | :Header |
| 系列 | 4094 | CAD图纸 | 3D CAD Model |
| 产品子类型 | Headers | 加载位置数 | All |
环境参数
| 工作温度 | :+75°C | ||
