点击放大查看

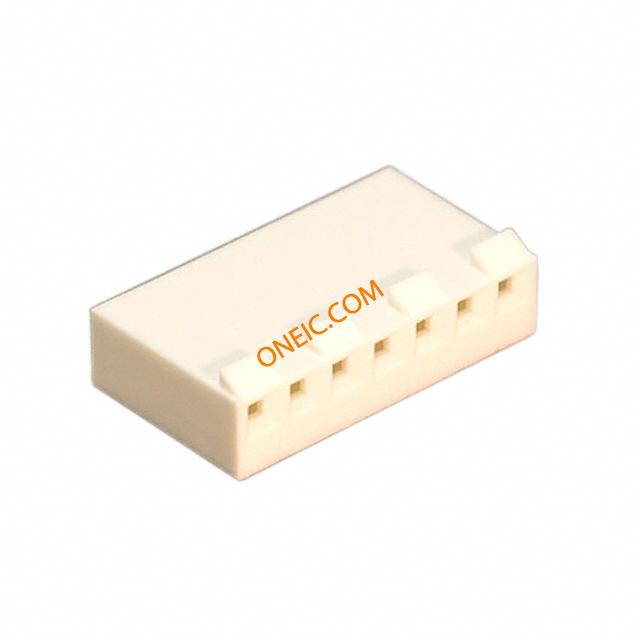

09-50-8071

制造商	Molex, LLC
描述	CONN HOUSING 7POS .156 W/RAMP Headers & Wire Housings HSG 7P W/LKG RAMP UL94V-0 Conn Housing RCP 7 POS 3.96mm ST Bag Conn Housing RCP 7 POS 3.96mm Crimp ST Cable Mount Bag HOUSING, CRIMP, 3.96MM, 7WAY KK 156 Crimp Housing Ramp 07 Ckt
分类	连接器解决方案板对板连接器板对板连接器

对参数有疑问？问 AI 助手

商业参数

商标名	KK	零件号别名	0009508071 09-50-8071-PB 41695-N-B07 9508071
产品类别	Headers & Wire Housings	标准包装数量	10
工厂包装数量	1000

合规参数

RoHS	RoHS Compliant	SVHC	:No SVHC (20-Jun-2013)
海关税号	85369010

机械参数

颜色	Natural	间距	0.156" (3.96mm)
重量	0.002	包装方式	Bulk
触头类型	Non Gendered	安装类型	Free Hanging (In-Line)
连接器类型	Receptacle	紧固类型	Locking Ramp
安装样式	Wire	排数	1
壳体材料	Polyester	端接样式	Crimp
第一触头极性	Socket (Female)	触点数	7
接触件端接	Crimp	位数	7

产品信息

备注	Contacts Not Provided	系列	41695
产品子类型	Receptacles / Sockets - Housings	适用产品/相关产品	:2478, 2578, 8818 KK Crimp Terminals, 7258, 6438, 6838 Trifurcon Crimp Terminals

文档与媒体

PDF 文档

09-50-8071

PDF 文档

1688138.pdf

PDF 文档

009508071_sd.pdf
