点击放大查看

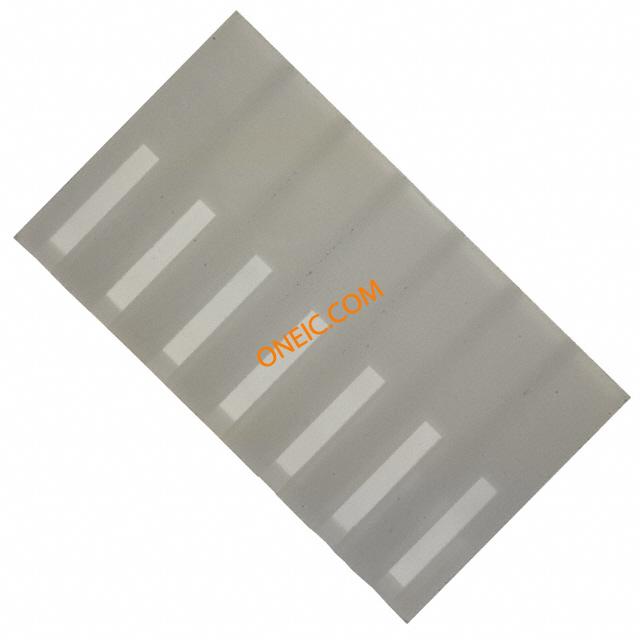

09-50-7071

制造商	Molex, LLC
描述	CONN HOUSING 7POS .156 W/O RAMP Headers & Wire Housings CRIMP TERMINAL HSG 7 3.96mm Pitch KK® Crimp Terminal Housing, 7 Circuits Conn Housing RCP 7 POS 3.96mm Crimp ST Cable Mount Bag .156 TERMINAL HOUSING; W/O LCK RAMP; 7 CIRCUITS
分类	连接器解决方案板对板连接器板对板连接器

对参数有疑问？问 AI 助手

商业参数

商标名	KK	零件号别名	0009507071 2139-7C 9507071
产品类别	Headers & Wire Housings	标准包装数量	1
工厂包装数量	1000

合规参数

RoHS

RoHS Compliant

机械参数

颜色	Natural	间距	0.156" (3.96mm)
包装方式	Bulk	触头类型	Non Gendered
安装类型	Free Hanging (In-Line)	连接器类型	Receptacle
安装样式	Wire	排数	1
壳体材料	Nylon	端接样式	Crimp
第一触头极性	Socket (Female)	触点数	7
接触件端接	Crimp	位数	7

产品信息

备注	Contacts Not Provided	系列	2139
产品子类型	Receptacles / Sockets - Housings

文档与媒体

PDF 文档

09-50-7071

PDF 文档

1710795.pdf

PDF 文档

0009507071_CRIMP_HOUSINGS.pdf

相关型号

0008500106

molex

Contact SKT Crimp ST Cable Mount Bag CONN TERM FEMALE 18-24AWG TIN Conn Contact F 1 POS Crimp ST Cable Mount Bag

¥0.4396

详情

0026614070

molex

Conn Wire to Board HDR 7 POS 3.96mm Solder ST Thru-Hole Bag CONN HEADER 7POS .156 VERT GOLD

¥9.1079

详情

暂无图片

0008580104

molex

Contact SKT Crimp ST Cable Mount Loose Piece CONN TERM CRIMP 18-24 AWG GOLD

¥3.4034

详情

0008520811

molex

Contact SKT Crimp ST Cable Mount Reel CONN TERM CRIMP 18-24 AWG TIN

¥0.2645

详情

0008520072

molex

Contact SKT Crimp ST Cable Mount Bag CONN TERM FEMALE 18-24AWG TIN Conn Contact F 1 POS Crimp ST Cable Mount Loose Piece

¥0.4522

详情

暂无图片

0008600004

molex

Contact SKT Crimp ST Cable Mount T/R CONN TERM CRIMP 22-26-AWG TIN

¥0.2373

详情

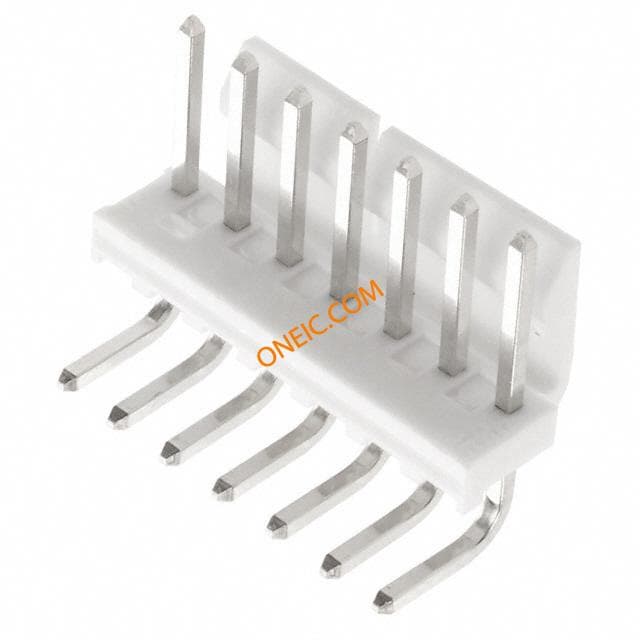

26-60-5070

molex

Conn Wire to Board HDR 7 POS 3.96mm Solder RA Thru-Hole Bag CONN HEADER 7POS .156 R/A TIN Headers & Wire Housings R/A PCB HDR 7P TIN FRICTION LOCK

¥1.6728

详情

0026604070

Molex

Conn Wire to Board HDR 7 POS 3.96mm Solder ST Thru-Hole Bag CONN HEADER 7POS .156 VERT TIN

¥2.8927

详情

0026481076

Molex

Conn Wire to Board HDR 7 POS 3.96mm Solder RA Thru-Hole Bag CONN HEADER 7POS .156 R/A TIN

¥2.1080

详情

08-50-0133

molex

Contact SKT Crimp ST Cable Mount Reel CONN TERM FEMALE 22-26AWG TIN TERM FEMALE CRIMP 22-26AWG TIN Crimp,3.96mm,22-26 AWG,phos bronze,reel Headers & Wire Housings KK TERM 22-26G Reel of 7000 Crimp Contact Molex KK 396 系列母压接接线端子, 压接, 镀锡触点

¥0.0959

详情

0008520127

Molex

Contact SKT Crimp ST Cable Mount Loose Piece CONN TERM CRIMP 18-20 AWG TIN

¥0.2047

详情

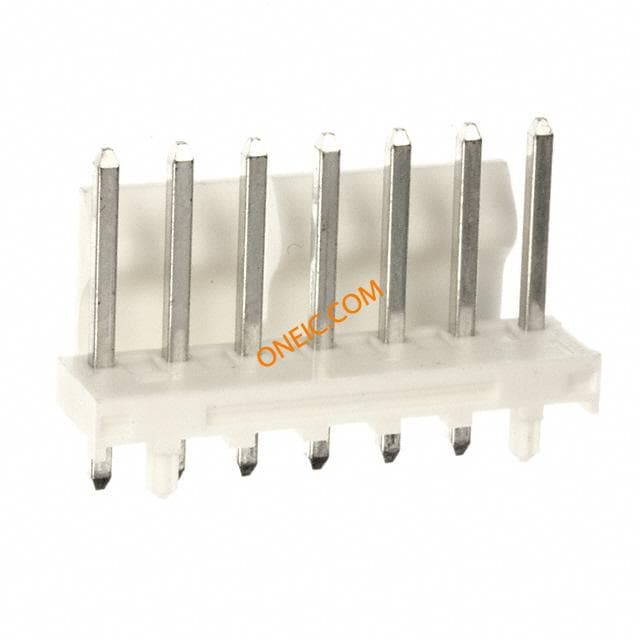

26-64-4070
