点击放大查看

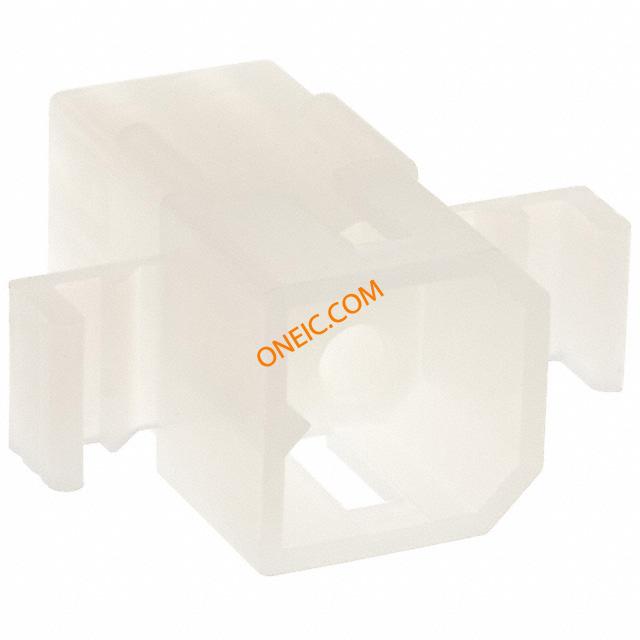

03-09-2040

制造商	Molex, LLC
描述	CONN PLUG 4POS .093 PANEL MOUNT Molex 5.03mm 4 Way 2 Row Straight Male Housing Receptacle Pin & Socket Connectors 4 CIRCUIT PLUG 2.36mm Diameter Standard .093" Pin and Socket Plug Housing, 4 Circuits, Dual Row .093 pin and socket plug housing, dual row, 4 pos .093pinandsocketplughousing,dualrow,4pos Molex STANDARD .093" 系列 4路 (2行) 5.03mm节距直外壳
分类	连接器解决方案矩形连接器电源混合矩形连接器

对参数有疑问？问 AI 助手

商业参数

商标名	Standard .093 in	零件号别名	0003092040 2163-P 3092040
产品类别	Pin & Socket Connectors	标准包装数量	10
工厂包装数量	2500

合规参数

RoHS

Compliant

电气参数

最大额定电流

11A

机械参数

颜色	Natural	间距	0.198" (5.03mm)
高度	13.7mm	包装方式	Bulk
方向	直	排间距	0.198" (5.03mm)
触头类型	Male or Female	安装类型	Panel Mount, Snap-In
连接器类型	Plug	紧固类型	Detent Lock
安装样式	Through Hole	排数	2
壳体材料	Nylon	端接样式	Crimp
第一触头极性	Pin (Male), Socket (Female)	触点数	4
接触件端接	Crimp	位数	4

产品信息

备注	Contacts Not Provided	连接器性别	Male
系列	2163	CAD图纸	3D CAD Model
产品子类型	Plug Housings	基础产品编号	1490

文档与媒体

PDF 文档

03-09-2040

PDF 文档

1767701.pdf

PDF 文档

0003092040_CRIMP_HOUSINGS.pdf
