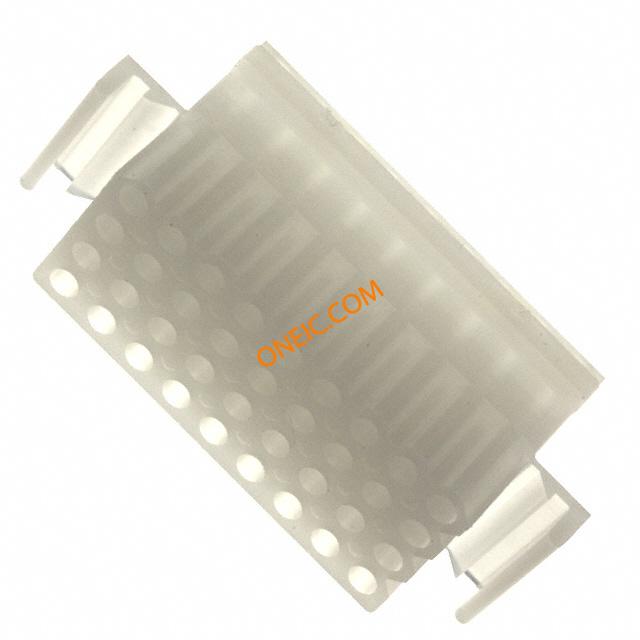

点击放大查看
03-06-1361
| 制造商 | Molex, LLC |
| 描述 | CONN RECEPT 36POS .062 PNL MOUNT Pin & Socket Connectors 36C RECEPTACLE Conn Housing RCP 36 POS 4.19mm Crimp ST Bag TERMINAL HOUSE; MINI; RECEPT W/MNT EAR & DTENT WNDW; 36 CIRC |
| 分类 |
商业参数
| 商标名 | Standard .062 in | 零件号别名 | 0003061361 1772-36R 3061361 |
| 产品类别 | Pin & Socket Connectors | 标准包装数量 | 1 |
| 工厂包装数量 | 25000 | ||
合规参数
| RoHS | RoHS Compliant | 认证机构标志 | CSA, UL |
| 材料阻燃等级 | UL94V-2 | ||
电气参数
| 额定电压 | 250 V | 最大额定电流 | 4 A |
机械参数
| 颜色 | Natural | 间距 | 0.145" (3.68mm) |
| 包装方式 | Bulk | 排间距 | 0.145" (3.68mm) |
| 端接方式 | Crimp | 触头类型 | Male or Female |
| 安装类型 | Panel Mount, Snap-In | 行程角度 | Straight |
| 连接器类型 | Receptacle | 紧固类型 | Locking Ramp |
| 安装样式 | Panel | 排数 | 4 |
| 壳体材料 | Nylon | 总长度 | 0.781 " |
| 端接样式 | Crimp | 第一触头极性 | Pin (Male), Socket (Female) |
| 触点数 | 36 | 接触件端接 | Crimp |
| 位数 | 36 | 安装孔直径 | 1.677×0.707 " |
产品信息
| 备注 | Contacts Not Provided | 类型 | Panel Socket |
| 系列 | 1772 | 制造商全称 | 1772 Series |
| 产品子类型 | Receptacle Housings | ||
环境参数
| 工作温度 | -40 to +105 °C | ||
