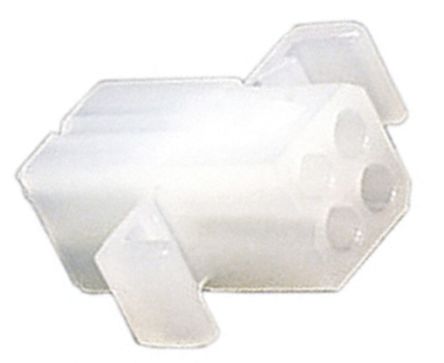

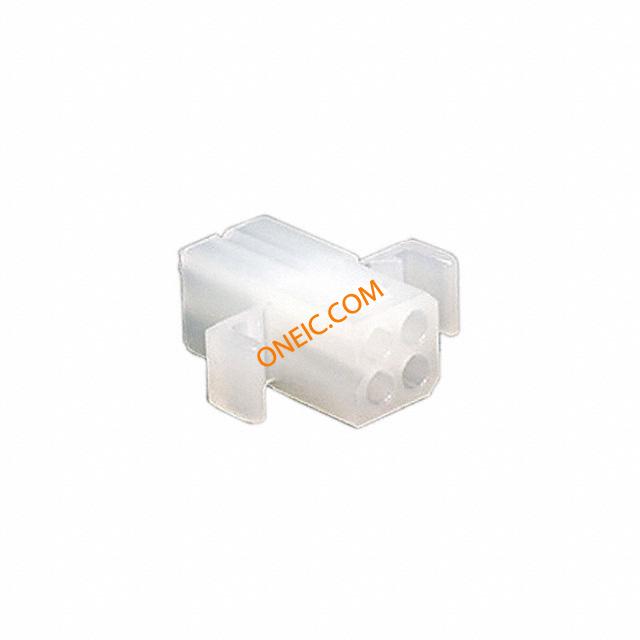

03-06-1043
| 制造商 | Molex, LLC |
| 描述 | CONN RECEPT 4POS .062 PANEL MNT Pin & Socket Connectors 4 CIRCUIT RECEPTACLE Conn Housing RCP 4 POS 3.68mm Crimp ST Bag 062PWRCONNRECEPTACLEPANLMNT4CKT Molex STANDARD .062" 系列 2 行 3.68mm 节距 4 路 直 母 面板安装 压接连接器外壳 |
| 分类 |
商业参数
| 商标名 | Standard .062 in | 零件号别名 | 0003061043 2004-R 3061043 |
| 产品类别 | Pin & Socket Connectors | 标准包装数量 | 10 |
| 工厂包装数量 | 6000 | ||
合规参数
| RoHS | RoHS Compliant | 认证机构标志 | CSA, UL, TUV |
电气参数
| 最大额定电流 | 5 A | ||
机械参数
| 颜色 | Natural | 深度 | 19.6mm |
| 间距 | 0.145" (3.68mm) | 宽度 | 8.6mm |
| 长度 | 8.6mm | 包装方式 | Bulk |
| 方向 | 直 | 排间距 | 0.145" (3.68mm) |
| 触头类型 | Male or Female | 安装类型 | Panel Mount, Snap-In |
| 行程角度 | Straight | 连接器类型 | Receptacle |
| 紧固类型 | Locking Ramp | 安装样式 | Panel |
| 排数 | 2 | 壳体材料 | Nylon |
| 端接样式 | Crimp | 第一触头极性 | Socket (Female) |
| 触点数 | 4 | 接触件端接 | Crimp |
| 位数 | 4 | ||
产品信息
| 备注 | Contacts Not Provided | 系列 | 2004 |
| 制造商全称 | 2004 Series | 产品子类型 | Receptacle Housings |
| 基础产品编号 | 2004 年 | 适用产品/相关产品 | 压接接线端子 2189、压接接线端子 2190、压接接线端子 4529、压接接线端子 4559、包容式压接接线端子 1561、包容式压接接线端子 1787、包容式压接接线端子 1855、插入式压接接线端子 1560、插入式压接接线端子 1786、插入式压接接线端子 1854、插入式 PC 尾线 1778 |
