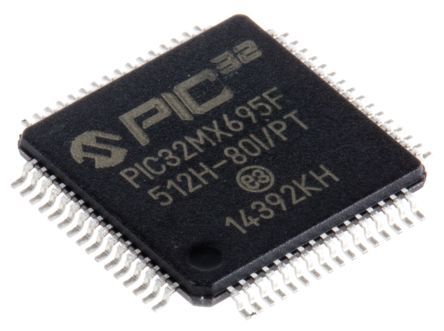

PIC32MX695F512H-80I/PT
| 制造商 | Microchip Technology Inc. |
| 描述 | MCU 32-bit PIC32 PIC RISC 512KB Flash 2.5V/3.3V 64-Pin TQFP Tray 32 bit MCU TQFP64 IC MCU 32BIT 512KB FLASH 64TQFP PIC32MX695F512H-80I/PT, 32 bit Microcontroller PIC 80MHz 512+12kb Flash, 128kb RAM, USB CAN I2C SPI 64-Pin TQFP 32-bit Microcontrollers - MCU 81 MHz USB ENET 8 DMA MCU, 32BIT, 512K FLASH, USB, 64TQFP 512KBFlash,128KBRAM,80MHz,USB,ENET,8DMA,TQFP-6410X10X1mmTray PIC microcontroller; SRAM:128kB; 80MHz; TQFP64; 2.3÷3.6V Microchip PIC32MX 系列 32 bit PIC MCU, 80MHz, 12 kB，512 kB ROM 闪存, 128 kB RAM, 1xUSB, 64针 TQFP封装 PIC32MX 512K TQFP64 85°C |
| 分类 |
商业参数
| 最小起订量 | 1 | 单位包装 | 160 |
| 其他名称 | PIC32MX695F512H80IPT | 标准包装数量 | Trays |
合规参数
| RoHS | Lead free / RoHS Compliant | SVHC | :No SVHC (20-Jun-2013) |
| 海关税号 | 85411000 | 汽车级 | NO |
| 抗辐射加固 | No | 无铅定义 | RoHS-conform |
电气参数
| 输入端 | 53 | 转速 | 80 MHz |
| 定时器 | 5 x 16 bit | 存储器 | 512KBytes |
| 以太网 | 1 | RAM 大小 | 128 KB |
| 内核大小 | 32-Bit | 核心类型 | PIC |
| 频率 | 80 MHz | 接口 | Ethernet/I2C/SPI/UART/USB |
| 时钟速率 | 80 MHz | 比较器数量 | 2 |
| EEPROM容量 | 0Byte | 存储器容量 | 512KByte |
| 存储器类型 | FLASH | 显示类型 | 0 |
| I/O 数量 | 53 | 电压范围 | 2.3-3.6V |
| 位数 | 32 | 额定电压 | 2.3 → 3.6 V |
| 看门狗定时器 | 1 | 时钟频率 | :80MHz |
| 数据转换器 | A/D 16x10b | 最大频率 | 80MHz |
| DAC数量 | 5 | 振荡器类型 | Internal |
| 供电电压 | 2.5|3.3 V | 数字I/O线数 | 85pins |
| 分辨率（位） | 10Bit | 通道数量 | 5 |
| 模拟输入/输出 | 2 | 非易失性存储器 | 0Bytes |
| 程序存储器大小 | 512 KB | 程序存储器类型 | Flash |
| ADC/DAC 数量 | 16channels | 最小输入电压 | 3.6V |
| 最小供电电压 | 2.3 V | 频率（中心/带宽） | 16bit |
| 每元件位数 | 10 bit | 供电电压 (Vcc/Vdd) | 2.3 V ~ 3.6 V |
机械参数
| 宽度 | 10mm | 高度 | 1.05mm |
| 长度 | 10mm | 重量 | 0.006667 |
| 包装方式 | TRAY | 端接方式 | :SMD |
| 安装类型 | Surface Mount | 安装样式 | SMD/SMT |
| 引脚数 | :64 | 封装形式 | 64TQFP |
| 冷却的封装 | TQFP | 材料表面处理 | :MSL 3 - 168 hours |
| 包装数量 | 15 | 尺寸/外形 | 10 x 10 x 1.05mm |
| 位数 | 64 | 供应商器件封装 | 64-TQFP (10x10) |
| 核心数/总线宽度 | 32 Bit | 脉冲宽度失真（最大） | 5(CCP) |
产品信息
| SPG | 15 | USB | 1 |
| 类型 | PIC microcontroller | 系列 | PIC32 |
| 匹配码 | PIC32MX695F512H-80I/PT | CAN编号 | 0 |
| 闪存大小 | :512KB | SPI编号 | 4 |
| 片内RAM（通道数×位宽） | 16-chx10-bit | 外设 | Brown-out Detect/Reset, DMA, POR, PWM, WDT |
| 架构 | RISC | 连接性 | Ethernet, I²C, SPI, UART/USART, USB OTG |
| 可编程性 | Yes | 核心处理器 | MIPS32® M4K™ |
| 内置振荡器 | 32kHz, 8MHz | 单元数量 | 1 |
| 定时器数量 | 5 | 控制器系列 | :PIC32 |
| 标准交期 | 14 weeks | 射频系列/标准 | PIC32 |
| 宏单元数量 | 2 | A/D转换器数量 | :16 |
环境参数
| 测试温度 | -40°C | 工作温度 | -40 to 85 °C |
| 结工作温度 | 85C | ||
文档与媒体
相关型号
DV244005
microchip
MPLAB Real ICE In Circuit Emulator Probe Kit Emulators / Simulators In Circuit Emulator MPLAB REAL ICE REAL ICE with Base Probe KIT PROBE MPLAB REAL ICE DV244005, Development Kit, 32 bit, PIC PROBE KIT, MPLAB REAL ICE MPLABREALIn-CircuitEmulator(ICE)withIDE Programmer: microcontrollers; USB; No.of diodes:2 MPLAB REAL ICE, in-circuit emulator PC hosted mode, DV244005, Microchip Microchip 处理器和微控制器开发套件
DM320011
microchip
Audio Development Board For PIC32 MCUs Audio IC Development Tools PIC32MX Audio Development Board PIC32MX Audio Development Board BOARD AUDIO DEV FOR PIC32 PIC32, AUDIO, USB I/F, DEV BOARD PIC32MXAudioDevelopmentBoard Development kit: Microchip; PIC32MX795F512L, WM8960 audio codec
DM320004
microchip
PIC32 Ethernet Starter Kit Development Boards & Kits - PIC / DSPIC Starter Kit PIC32 Ethernet KIT EVAL PIC32 ETHERNET STARTER DM320004, Development Kit, 32 bit, PIC32 PIC32, ETHERNET, STARTER KIT StarterKits,PIC32EthernetStarterKit Development kit: Microchip; PIC32MX795F512L; Package: TQFP100 PIC32 Ethernet Starter Kit PC hosted mode, DM320004, Microchip
DM320005
microchip
Multimedia Expansion Board The Multimedia Expansion Board Is An Integrated Yet Flexible Solution Development Boards & Kits - PIC / DSPIC Multimedia Expansion Board Multimedia Expansion Board BOARD EXPANSION FOR PIC32 KIT DM320005, Development Kit, 32 bit, Graphics, PIC32, Multimedia Expansion Board EXP BOARD, MULTIMEDIA, FOR PIC32 KIT MultimediaExpansionBoard,PIC32Boardsandkits Expansion board; PIC32; 3,2" TFT 240x320
SW006015
microchip
MPLAB C Compiler For PIC32 MCUs Is A Full Featured Ansi Compliant C Compiler Development Software MPLAB C32 C Compiler MPLAB C32 COMPILER C COMPILER MPLAB C32 MPLAB C COMPLIER, FOR PIC32 CCOMPILERFORPIC32DEVICES C Compiler for PIC32 Microcontrollers
DM240001
microchip
Explorer 16 Demonstration Board For 6-Bit Microcontrollers Development Boards & Kits - PIC / DSPIC PICDEM PIC24/dsPIC33 EXPLORER 16 KIT PICDEM PIC24/dsPIC33 Explorer BOARD DEMO PIC24/DSPIC33/PIC32 DM240001, Development Kit, 16 bit, PIC, Explorer 16 Demo Board PIC24, EXPLORER 16, DEV BOARD EXPLORER16DEVELOPMENTBOARD Development kit: Microchip; PIC24,PIC32,dsPIC33 Explorer 16 development board PC hosted mode 9 V, DM240001, Microchip Microchip 16 位 MCU 微控制器开发套件
SST25VF032B-80-4I-S2AF
microchip
Flash Serial-SPI 3.3V 32Mbit 4M x 8bit 6ns 8-Pin SOIC Tube IC FLASH 32MBIT 80MHZ 8SOIC SST25VF032B-80-4I-S2AF, Serial-SPI Flash Memory 32Mbit, 4M x 8 bit, 6ns, 2.7V, 8-Pin, SOIC MEMORY, FLASH, 32MBIT, SPI, 8SOIC IC,MEMORY;TYPE,SERIAL;32MBIT;66MHZ;SOIJ-8 Microchip 闪存, 32Mbit (4M x 8 位), 串行 - SPI接口, 6ns, 2.7 → 3.6 V, 8针 SOIC封装
MA320003
microchip
PIC32 Can-USB PIM Which Has Plug-In Module Enables Can And USB Development Daughter Cards & OEM Boards PIC32MX USB/CAN PIM PIC32MX USB/CAN PIM MODULE PLUG-IN PIC32 CAN USB MA320003, Module, 32 bit, CAN, PIC32, Plug-in Module for the PIC32MX795F512L MCU PIC32, CAN, USB, PLUG-IN MODULE PIC32MX795F512LPIC32CAN100-pinPIM Plug-in module; PIC32MX795F512L; Works with: EXPLORER-16 PIC32 USB CAN plug-in module - PIC32MX795F512L, MA320003, Microchip
AC164131
microchip
USB Pictail Plus Daughter Board Daughter Cards & OEM Boards USB PICtail Plus Daughter Board USB PICtail Plus Daughter Board BOARD DAUGHTER USB PICTAIL PLUS AC164131, Module, USB PICTAIL PLUS, USB, DAUGHTER BOARD USB OTG expansion board; Connector type: PICtail Plus USB PICtail Plus Daughter Board Stand-alone mode 9 V, AC164131, Microchip Microchip PICtail Plus USB接口 子板, 使用于 Explorer 16 开发板
DKSB1000C
Digi-Key Evaluation Boards

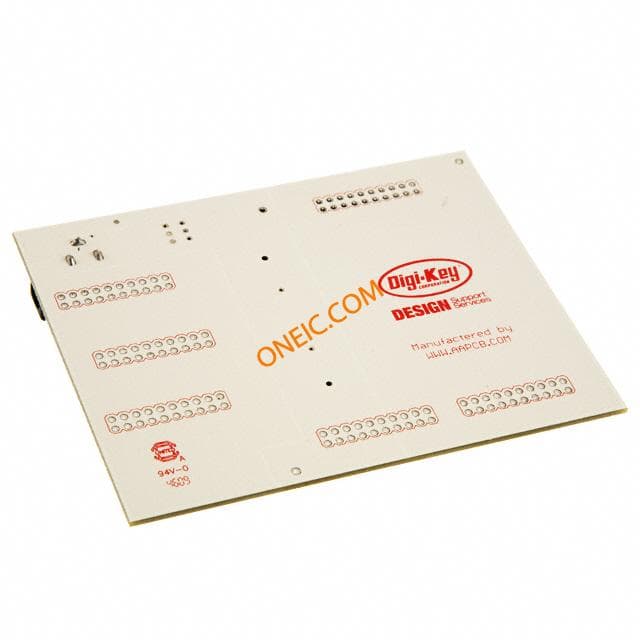

PIC32 BREAKOUT BOARD
