点击放大查看

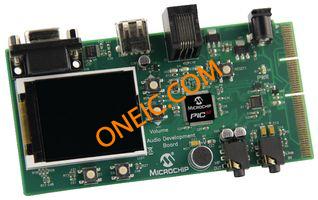

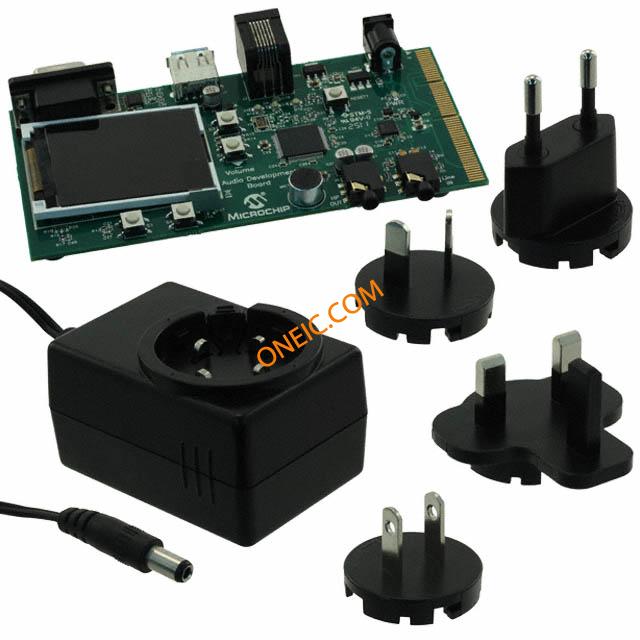

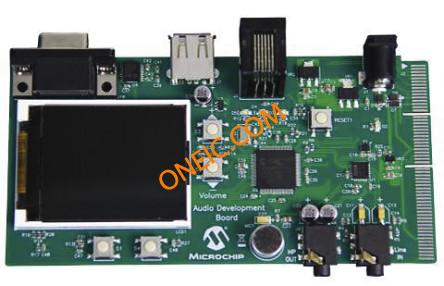

DM320011
| 制造商 | Microchip Technology Inc. |
| 描述 | Audio Development Board For PIC32 MCUs Audio IC Development Tools PIC32MX Audio Development Board PIC32MX Audio Development Board BOARD AUDIO DEV FOR PIC32 PIC32, AUDIO, USB I/F, DEV BOARD PIC32MXAudioDevelopmentBoard Development kit: Microchip; PIC32MX795F512L, WM8960 audio codec |
| 分类 |
商业参数
| 最小起订量 | 1 | 单位包装 | 1 |
| 标准包装数量 | Boxed | ||
合规参数
| RoHS | RoHS Compliant | SVHC | :No SVHC (16-Dec-2013) |
| 欧盟RoHS | Supplier Unconfirmed | 海关税号 | 85423990 |
| 无铅定义 | RoHS-conform | ||
电气参数
| 核心类型 | PIC | 供电电压 | 9 V |
| 元件数量 | :PIC32MX | ||
机械参数
| 重量 | 0.3 | 包装数量 | 1 |
产品信息
| SPG | 1 | 类型 | Development Kit |
| 内容 | Board | 嵌入式 | Yes, MCU, 32-Bit |
| 产品特性 | Board Information Sheet: http://ww1.microchip.com/downloads/en/DeviceDoc/ADB%20%20for%20PIC32%20Info%20Sheet.pdf User Guide: http://ww1.microchip.com/downloads/en/DeviceDoc/ADB%20for%20PIC32%20User%20Guide.pdf | 套件类型 | :Microcontroller |
| 匹配码 | DM320011 | 技术 | Microcontroller |
| 套件内容 | PIC32MX Audio Development Board | 主要用途 | Audio, Audio Processing |
| 卡标准 | Development Kit | 显示样式 | TFT 176x220 2" RGB |
| 按键数 | 4 | 单元数量 | 1 |
| 标准交期 | 6 weeks | 工具类型/特性 | PIC32MX795F512 |
| 主要特性 | USB Type A Interface, MFi Dock Edge Connector | 使用的IC/零件 | PIC32MX795F512 |
| 芯片组制造商 | :Microchip | 次要特性 | 24-Bit Wolfson CODEC |
| 应用细节 | :Audio Processor | 适用产品/相关产品 | prototype board |
相关型号
DV244005
microchip
MPLAB Real ICE In Circuit Emulator Probe Kit Emulators / Simulators In Circuit Emulator MPLAB REAL ICE REAL ICE with Base Probe KIT PROBE MPLAB REAL ICE DV244005, Development Kit, 32 bit, PIC PROBE KIT, MPLAB REAL ICE MPLABREALIn-CircuitEmulator(ICE)withIDE Programmer: microcontrollers; USB; No.of diodes:2 MPLAB REAL ICE, in-circuit emulator PC hosted mode, DV244005, Microchip Microchip 处理器和微控制器开发套件
DV164035
microchip
MPLAB ICD 3 In Circuit Debugger In-Circuit Debuggers MPLAB ICD3 MPLAB ICD3 In-Circuit Debugger MPLAB ICD3 IN-CIRC DEBUGGER DV164035, Programmer, 16 bit, PIC DEBUGGER, MPLAB ICD 3, DSPIC FOR PIC MPLAB ICD 3 In-Circuit Debugger Kit MPLABICD3IncircuitDebugger Programmer: microcontrollers; USB; No.of diodes:3 In-Circuit Debugger/Programmer ICD3 PC hosted mode, DV164035, Microchip Microchip MPLAB ICD 3 在线调试器 处理器和微控制器开发套件
MAX3232CAE+
Analog Devices, Inc.
IC TRANSCEIVER FULL 2/2 16SSOP
WM8960GEFL/RV
Wolfson Microelectronics
Interface - CODECs STEREO CODEC 32-pin CODEC, STEREO, SPEAKER & HP, 32QFN
3-1734592-7
te connectivity / amp
Conn FPC Connector SKT 37 POS 0.5mm Solder RA SMD T/R FPC Connectors CONN FPC 37POS .5MM RT ANG SMD FFC & FPC Connectors FPC CONN. 0.5MM PITCH B/C 37P Conn FPC Connector SKT 37 POS 0.5mm Solder RA SMD T/R Search Keywords:high density, light weight, zero insertion force, flat etched circuitry, flat flex wire, FEC, FPC CONNECTOR, RECEPTACLE 37POS 0.5PITCH FPC CONN. 0.5MM PITCH B/C, 37P

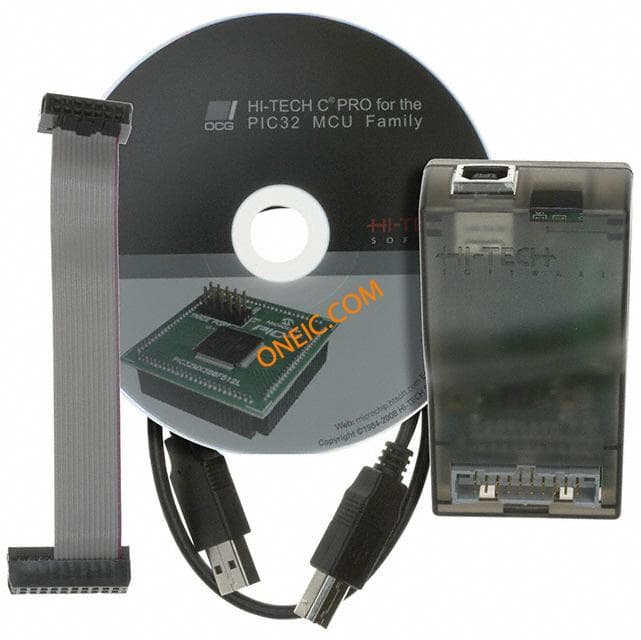

SW500011
