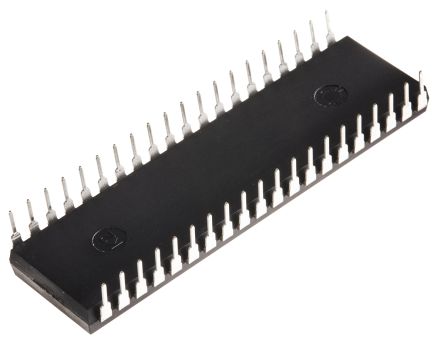

PIC18F4680-I/P
| 制造商 | Microchip Technology Inc. |
| 描述 | MCU 8-bit PIC18 PIC RISC 64KB Flash 5V 40-Pin PDIP Tube 8-bit Microcontrollers - MCU 64KB 3328 RAM w/ECAN IC MCU 8BIT 64KB FLASH 40DIP PIC18F4680-I/P, 8 bit Microcontroller PIC 40MHz 64kb Flash, 3328B RAM, I2C SPI 40-Pin PDIP IC, 8BIT FLASH MCU, 18F4680, DIP40 IC, 8-BIT FLASH MCU, TUBE10 MCU,8-Bit,CMOS,40-Pin,64KBFlash,3328RAM,36I/Ow/ECAN Microcontroller 8 Bit PDIP-40, PIC18F4680-I/P, Microchip Microchip PIC18F 系列 8 bit PIC MCU, 40MHz, 64 kB、1024 B ROM 闪存, 3328 B RAM, 40针 PDIP封装 |
| 分类 |
商业参数
| 其他名称 | PIC18F4680IP | 产品类别 | 8-bit Microcontrollers - MCU |
| 标准包装数量 | Rail / Tube | 工厂包装数量 | 10 |
合规参数
| RoHS | RoHS Compliant | SVHC | :No SVHC (20-Jun-2013) |
| 海关税号 | 85423190 | 零件状态 | :18F4680 |
电气参数
| 输入端 | 36 | 转速 | 40 MHz |
| 定时器 | 1 x 8 bit, 3 x 16 bit | 存储器 | 64KBytes |
| RAM 大小 | 3.25 KB | 内核大小 | 8-Bit |
| 核心类型 | PIC | 接口 | I2C/SPI/USART |
| 时钟速率 | 40 MHz | 比较器数量 | 2 |
| EEPROM容量 | 1K x 8 | 存储器容量 | 3328 B |
| 存储器类型 | :Flash | I/O 数量 | 44 |
| 电压范围 | 2-5.5V | 位数 | :8 |
| 额定电压 | 4.2 → 5.5 V | 看门狗定时器 | 1 |
| 时钟频率 | :40MHz | 数据转换器 | A/D 11x10b |
| 最大频率 | 40MHz | DAC数量 | 2 |
| 振荡器类型 | Internal | 供电电压 | 5 V |
| 分辨率（位） | 10bit | 通道数量 | 11 |
| 模拟输入/输出 | 2 | 非易失性存储器 | 1KBytes |
| 程序存储器大小 | 64 KB | 程序存储器类型 | Flash |
| ADC/DAC 数量 | 11 | 频率（中心/带宽） | 16 bit, 8 bit |
| 最大功耗 | 1000 mW | 每元件位数 | 10 bit |
| 供电电压 (Vcc/Vdd) | 4.2 V ~ 5.5 V | ||
机械参数
| 宽度 | 0.58in | 高度 | 0.195in |
| 长度 | 2.095in | 重量 | 0.02 |
| 包装方式 | Tube | 安装类型 | Through Hole |
| 安装样式 | Through Hole | 引脚数 | :40 |
| 封装形式 | 40PDIP | 冷却的封装 | PDIP |
| 材料表面处理 | :- | 尺寸/外形 | 2.095 x 0.58 x 0.195in |
| 位数 | 40 | 供应商器件封装 | 40-PDIP |
| 核心数/总线宽度 | 8 Bit | 脉冲宽度失真（最大） | 1(CCP), 1(ECCP) |
产品信息
| USB | 0 | 系列 | PIC18 |
| 闪存大小 | :64KB | 片内RAM（通道数×位宽） | 11-chx10-bit |
| 外设 | Brown-out Detect/Reset, HLVD, POR, PWM, WDT | 架构 | RISC |
| 连接性 | CAN, I²C, SPI, UART/USART | 核心处理器 | PIC |
| 定时器数量 | 4 | 控制器系列 | :PIC18F4xxx |
| 射频系列/标准 | PIC18 | 微控制器特性 | :EEPROM, ADC, Comparators, CCP/ECCP, ECAN, BOR, PWRT, POR, WDT, PSP, MSSP |
| A/D转换器数量 | :11 | ||
