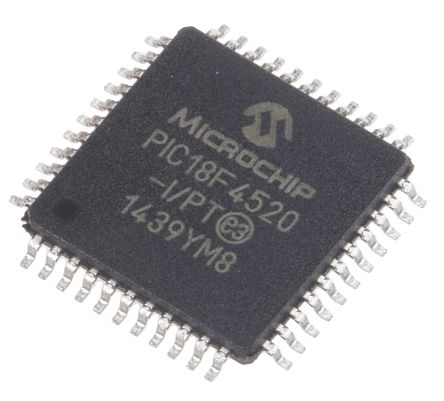

PIC18F4520-I/PT
| 制造商 | Microchip Technology Inc. |
| 描述 | MCU 8-Bit PIC18 PIC RISC 32KB Flash 5V 44-Pin TQFP T/R MCU 8-bit PIC18 PIC RISC 32KB Flash 5V 44-Pin TQFP T/R 8 bit MCU TQFP44 IC MCU 8BIT 32KB FLASH 44TQFP PIC18F4520-I/PT, 8 bit Microcontroller PIC 40MHz 32kb Flash, 1536B RAM, I2C SPI 44-Pin TQFP 8-bit Microcontrollers - MCU 32KB 1536 RAM 36I/O IC, SM 8-BIT FLASH MCU, WAFFLE80 IC MCU, 8BIT, PIC18, 40MHZ, TQFP44 44-Pin,32KBFlash,1536RAM,36I/O PIC microcontroller; EEPROM:256B; SRAM:1536B; 40MHz; TQFP44 Microcontroller 8 Bit TQFP-44, PIC18F4520-I/PT, Microchip Microchip PIC18F 系列 8 bit PIC MCU, 40MHz, 32 kB、256 B ROM 闪存, 1536 B RAM, 44针 TQFP封装 PIC18F 32K TQFP44 85°C |
| 分类 |
商业参数
| 最小起订量 | 1 | 单位包装 | 160 |
| 其他名称 | PIC18F4520IPT | 产品类别 | 8-bit Microcontrollers - MCU |
| 标准包装数量 | Trays | 工厂包装数量 | 160 |
| 标准封装名称 | QFP | ||
合规参数
| RoHS | Lead free / RoHS Compliant | SVHC | :No SVHC (20-Jun-2013) |
| 欧盟RoHS | Compliant | 海关税号 | 85423190 |
| 汽车级 | NO | 零件状态 | :18F4520 |
| 抗辐射加固 | No | 无铅定义 | RoHS-conform |
| 认证机构 | No | ||
电气参数
| 输入端 | 36 | 转速 | 40 MHz |
| 定时器 | 1 x 8 bit, 3 x 16 bit | 存储器 | 32KBytes |
| 以太网 | 0 | RAM 大小 | 1.5 KB |
| 内核大小 | 8-Bit | 核心类型 | PIC |
| 频率 | 40 MHz | 接口 | I2C/SPI/USART |
| 时钟速率 | 40 MHz | 比较器数量 | 2 |
| EEPROM容量 | 256Byte | 存储器容量 | 32KByte |
| 存储器类型 | FLASH | 显示类型 | 0 |
| I/O 数量 | 36 | 电压范围 | 2-5.5V |
| 位数 | 10 | 额定电压 | 4.2 → 5.5 V |
| 看门狗定时器 | 1 | 时钟频率 | :40MHz |
| 数据转换器 | A/D 13x10b | 最大频率 | 32MHz |
| DAC数量 | 2 | 振荡器类型 | Internal |
| 供电电压 | 5 V | 数字I/O线数 | 36pins |
| 分辨率（位） | 16bit | 串行接口 | 1 |
| 通道数量 | 1 | 模拟输入/输出 | 2 |
| 非易失性存储器 | 256Bytes | 程序存储器大小 | 32 KB |
| 程序存储器类型 | Flash | ADC/DAC 数量 | 13 |
| 最小输入电压 | 5.5V | 8位定时器数量 | 1 |
| 最小供电电压 | 4.2 V | 频率（中心/带宽） | 16 bit, 8 bit |
| 最大功耗 | 1000 mW | 每元件位数 | 10 bit |
| 供电电压 (Vcc/Vdd) | 4.2 V ~ 5.5 V | ||
机械参数
| 宽度 | 10mm | 高度 | 1.05mm |
| 长度 | 10mm | 重量 | 0.17604 |
| 包装方式 | TRAY | 引脚样式 | Gull-wing |
| 引脚间距 | :0.5mm | 安装类型 | Surface Mount |
| 安装样式 | SMD/SMT | 引脚数 | :44 |
| 封装形式 | 44TQFP | 冷却的封装 | TQFP |
| 材料表面处理 | :MSL 3 - 168 hours | 总长度 | 10 |
| 包装数量 | TQFP | 尺寸/外形 | 10 x 10 x 1.05mm |
| 位数 | 44 | 外壳尺寸-插件 | 1 |
| 供应商器件封装 | 44-TQFP (10x10) | 核心数/总线宽度 | 8 Bit |
| 脉冲宽度失真（最大） | 1(CCP), 1(ECCP) | ||
产品信息
| SPI | 1 | SPG | 160 |
| USB | No | 类型 | PIC microcontroller |
| 系列 | PIC18 | 协议 | 1 |
| 匹配码 | PIC18F4520-I/PT | CAN编号 | 0 |
| 闪存大小 | :32KB | SPI编号 | 1 |
| 片内RAM（通道数×位宽） | 13-chx10-bit | 外设 | Brown-out Detect/Reset, HLVD, POR, PWM, WDT |
| 架构 | RISC | 连接性 | I²C, SPI, UART/USART |
| 可编程性 | Yes | 核心处理器 | PIC |
| 内置振荡器 | 32kHz, 8MHz | 单元数量 | 1 |
| 定时器数量 | 4 | 控制器系列 | :PIC18F4xxx |
| 标准交期 | 14 weeks | 射频系列/标准 | PIC18 |
| 使用的IC/零件 | :PIC18F4520-I/PT | DigiKey可编程 | Yes |
| 印刷电路板数量 | 44 | 微控制器特性 | :EEPROM, POR, PWRT, OST, WDT, ICSP, ICD, BOR, ADC, LVD, CCP/ECCP, LIN BUS, PSP, PLL, Int. Osc., Pwr Mgt. Mode. |
| A/D转换器数量 | :13 | ||
