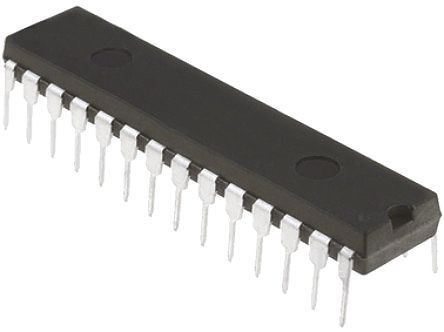

PIC18F2685-E/SP
| 制造商 | Microchip Technology Inc. |
| 描述 | MCU 8-bit PIC18 PIC RISC 96KB Flash 5V 28-Pin SPDIP Tube 96KB, Flash, 3328bytes-RAM, 25I/O, 8 IC MCU 8BIT 96KB FLASH 28SDIP 8-bit Microcontrollers - MCU 96KB 3328bytes-RAM 25I/O MCU, 8-BIT, 96K FLASH, SPDIP28 Microchip PIC18F 系列 8 bit PIC MCU, 40MHz, 96 kB ROM 闪存, 3328 B RAM, 1xUSB, 28针 PDIP封装 |
| 分类 |
商业参数
| 最小起订量 | 81 | 单位包装 | 15 |
| 产品类别 | 8-bit Microcontrollers - MCU | 标准包装数量 | Rail / Tube |
| 工厂包装数量 | 15 | ||
合规参数
| RoHS | Lead free / RoHS Compliant | SVHC | :No SVHC (20-Jun-2013) |
| 海关税号 | 85411000 | 零件状态 | :18F2685 |
电气参数
| 转速 | 40 MHz | RAM 大小 | 3.25 KB |
| 内核大小 | 8-Bit | 核心类型 | PIC |
| 接口 | CAN/I2C/SPI/USART | 时钟速率 | 40 MHz |
| EEPROM容量 | 1K x 8 | 存储器容量 | 3.25 KB |
| I/O 数量 | 25 | 位数 | :8 |
| 看门狗定时器 | 1 | 时钟频率 | :40MHz |
| 数据转换器 | A/D 8x10b | DAC数量 | :1 |
| 振荡器类型 | Internal | 供电电压 | 5 V |
| 通道数量 | 8 | 模拟输入/输出 | 2 |
| 程序存储器大小 | 96 KB | 程序存储器类型 | Flash |
| 最大功耗 | 1000 mW | 每元件位数 | 10 bit |
| 供电电压 (Vcc/Vdd) | 4.2 V ~ 5.5 V | ||
机械参数
| 重量 | 0.001333 | 包装方式 | Tube |
| 端接方式 | :Through Hole | 安装样式 | Through Hole |
| 引脚数 | :28 | 封装形式 | 28SPDIP |
| 材料表面处理 | :- | 位数 | :18F2685 |
| 供应商器件封装 | 28-SPDIP | 核心数/总线宽度 | 8 Bit |
产品信息
| 系列 | PIC18 | 产品特性 | CAN Controller |
| 闪存大小 | :96KB | 片内RAM（通道数×位宽） | 8-chx10-bit |
| 外设 | Brown-out Detect/Reset, HLVD, POR, PWM, WDT | 连接性 | CAN, I²C, SPI, UART/USART |
| 核心处理器 | PIC | 定时器数量 | 4 |
| 控制器系列 | :PIC18F2xxx | 射频系列/标准 | PIC18 |
| A/D转换器数量 | :8 | ||
环境参数
| 温度范围 | :Extended | 工作温度 | -40 to 125 °C |
文档与媒体
