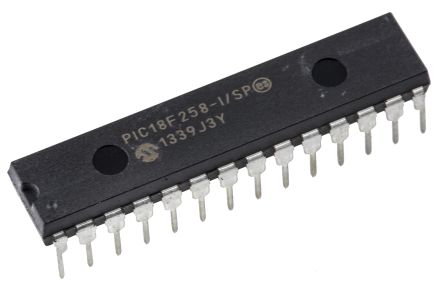

PIC18F258-I/SP
| 制造商 | Microchip Technology Inc. |
| 描述 | MCU 8-bit PIC18 PIC RISC 32KB Flash 5V 28-Pin SPDIP Tube 32 KB Flash, 1536 RAM, 23 I/O IC MCU 8BIT 32KB FLASH 28SDIP PIC18F258-I/SP, 8 bit Microcontroller PIC 40MHz 32kb Flash, 1536B RAM, I2C SPI 28-Pin SPDIP 8-bit Microcontrollers - MCU 32KB 1536 RAM 23 I/O IC, 8BIT FLASH MCU CAN, ADC, 18F258 IC, 8-BIT FLASH MCU, CAN, TUBE15 Microcontroller;32KBFlash;1536RAM;256EEPROM;25I/O;SPDIP-28 PIC microcontroller; EEPROM:256B; SRAM:1024B; 40MHz; DIP28 Microcontroller 8 Bit DIL-28, PIC18F258-I/SP, Microchip Microchip PIC18F 系列 8 bit PIC MCU, 40MHz, 32 kB、256 B ROM 闪存, 1536 B RAM, 28针 SPDIP封装 |
| 分类 |
商业参数
| 最小起订量 | 1600 | 单位包装 | 15 |
| 产品类别 | 8-bit Microcontrollers - MCU | 标准包装数量 | Rail / Tube |
| 工厂包装数量 | 15 | ||
合规参数
| RoHS | Lead free / RoHS Compliant | SVHC | :No SVHC (20-Jun-2013) |
| 海关税号 | 85423190 | 零件状态 | :18F258 |
| 抗辐射加固 | No | ||
电气参数
| 输入端 | 25 | 转速 | 40 MHz |
| 定时器 | 1 x 8 bit, 3 x 16 bit | 存储器 | 32KBytes |
| RAM 大小 | 1.5 KB | 内核大小 | 8-Bit |
| 核心类型 | PIC | 频率 | 40 MHz |
| 接口 | CAN/I2C/SPI/USART | 时钟速率 | 40 MHz |
| 比较器数量 | 0 | 分辨率 | 10bit |
| EEPROM容量 | 256 x 8 | 存储器容量 | 1536 B |
| 存储器类型 | :Flash | I/O 数量 | 22 |
| 电压范围 | 2-5.5V | 位数 | :8 |
| 额定电压 | 4.2 → 5.5 V | 看门狗定时器 | 1 |
| 时钟频率 | :40MHz | 数据转换器 | A/D 5x10b |
| FPGA 核心单元数 | :10 | 最大频率 | 40MHz |
| DAC数量 | 1 | 振荡器类型 | External |
| 供电电压 | 5 V | 分辨率（位） | 10bit |
| 通道数量 | 1 | 模拟输入/输出 | 5-Channel,10-Bit |
| 非易失性存储器 | 256Bytes | 程序存储器大小 | 32 KB |
| 程序存储器类型 | Flash | ADC/DAC 数量 | 5 |
| 8位定时器数量 | 1 | 最小供电电压 | 4.2 V |
| 频率（中心/带宽） | 16 bit, 8 bit | 最大功耗 | 1000 mW |
| 每元件位数 | 10 bit | 供电电压 (Vcc/Vdd) | 4.2 V ~ 5.5 V |
机械参数
| 宽度 | 7.49mm | 高度 | 3.43mm |
| 长度 | 35.18mm | 重量 | 0.000001 |
| 包装方式 | Tube | 端接方式 | :Through Hole |
| 安装类型 | Through Hole | 安装样式 | Through Hole |
| 引脚数 | :28 | 封装形式 | 28SPDIP |
| 冷却的封装 | SPDIP | 材料表面处理 | :- |
| 包装数量 | 2 | 尺寸/外形 | 35.18 x 7.49 x 3.43mm |
| 位数 | 28 | 供应商器件封装 | 28-SPDIP |
| 核心数/总线宽度 | 8 Bit | 脉冲宽度失真（最大） | 1(10 bit) (CCP) |
产品信息
| SPG | 2 | USB | 0 |
| 类型 | PIC microcontroller | 系列 | PIC18 |
| 产品特性 | CAN Controller | 闪存大小 | :32KB |
| 片内RAM（通道数×位宽） | 5-chx10-bit | 外设 | Brown-out Detect/Reset, LVD, POR, PWM, WDT |
| 架构 | RISC | 连接性 | CAN, I²C, SPI, UART/USART |
| 可编程性 | Yes | 核心处理器 | PIC |
| 单元数量 | 1 | 定时器数量 | 4 |
| 控制器系列 | :PIC18 | 射频系列/标准 | PIC18 |
| 微控制器特性 | :USART/Capture/Compare/PWM | A/D转换器数量 | :5 |
环境参数
| 温度范围 | :Industrial | 工作温度 | -40 to 85 °C |
| 结工作温度 | 85C | ||
文档与媒体
