PIC18F13K50-I/SO
| 制造商 | Microchip Technology Inc. |
| 描述 | MCU 8-bit PIC18 PIC RISC 8KB Flash 3.3V/5V 20-Pin SOIC W Tube 8 bit MCU SOIC20 IC MCU 8BIT 8KB FLASH 20SOIC PIC18F13K50-I/SO, 8 bit Microcontroller PIC 48MHz 8kb Flash, 512B RAM, USB I2C SPI 20-Pin SOIC 8-bit Microcontrollers - MCU 8KB Flash 512 RAM 15 I/O 10-B ADC USB 2.0 MCU, 8BIT, 8K FLASH, USB2.0, 20SOIC 20Pin,8KBFlash,512RAM,15I/O,10-bitADC,USB2.0 PIC microcontroller; EEPROM:256B; SRAM:512B; 48MHz; SO20 Microcontroller 8 Bit SO-20, PIC18F13K50-I/SO, Microchip Microchip PIC18F 系列 8 bit PIC MCU, 48MHz, 8 kB、256 B ROM 闪存, 512 B RAM, 1xUSB, 20针 SOIC封装 PIC18F 8K SOIC20 85°C |
| 分类 |
商业参数
| 最小起订量 | 38 | 单位包装 | 38 |
| 其他名称 | PIC18F13K50ISO | 产品类别 | 8-bit Microcontrollers - MCU |
| 标准包装数量 | Rail / Tube | 工厂包装数量 | 38 |
| 标准封装名称 | SOIC W | ||
合规参数
| RoHS | Lead free / RoHS Compliant | SVHC | :No SVHC (20-Jun-2013) |
| 欧盟RoHS | Compliant | 海关税号 | 85411000 |
| 汽车级 | NO | 无铅定义 | RoHS-conform |
| 认证机构 | No | ||
电气参数
| 输入端 | 15 | 转速 | 48 MHz |
| 定时器 | 1 x 8 bit, 3 x 16 bit | 存储器 | 8KBytes |
| 以太网 | 0 | RAM 大小 | 512 byte |
| 内核大小 | 8-Bit | 核心类型 | PIC |
| 接口 | I2C/SPI/USART/USB | 时钟速率 | 48 MHz |
| 比较器数量 | 2 | EEPROM容量 | 256Byte |
| 存储器容量 | 8KByte | 存储器类型 | FLASH |
| 显示类型 | 0 | I/O 数量 | 15 |
| 电压范围 | 1.8-5.5V | 位数 | 10 |
| 额定电压 | 1.8 → 5.5 V | 看门狗定时器 | 1 |
| 时钟频率 | :48MHz | 数据转换器 | A/D 11x10b |
| 最大频率 | 48MHz | DAC数量 | 1 |
| 振荡器类型 | Internal | 供电电压 | 3.3|5 V |
| 数字I/O线数 | 15pins | 分辨率（位） | 16bit |
| 串行接口 | 1 | 通道数量 | 1 |
| 模拟输入/输出 | 2 | 非易失性存储器 | 256Bytes |
| 程序存储器大小 | 8 KB | 程序存储器类型 | Flash |
| ADC/DAC 数量 | 11 | 最小输入电压 | 5.5V |
| 8位定时器数量 | 1 | 最小供电电压 | 1.8...5.5V |
| 频率（中心/带宽） | 16 bit, 8 bit | 最大功耗 | 800 mW |
| 每元件位数 | 10 bit | 供电电压 (Vcc/Vdd) | 1.8 V ~ 5.5 V |
机械参数
| 宽度 | 7.5mm | 高度 | 2.35mm |
| 长度 | 12.8mm | 重量 | 0.000789 |
| 包装方式 | TUBE | 引脚样式 | Gull-wing |
| 端接方式 | :SMD | 安装类型 | Surface Mount |
| 安装样式 | SMD/SMT | 引脚数 | :20 |
| 封装形式 | 20SOIC W | 冷却的封装 | SOIC |
| 材料表面处理 | :MSL 1 - Unlimited | 总长度 | 12.8 |
| 包装数量 | SOIC W | 尺寸/外形 | 12.8 x 7.5 x 2.35mm |
| 位数 | 20 | 外壳尺寸-插件 | 2.05(Min) |
| 供应商器件封装 | 20-SOIC | 核心数/总线宽度 | 8 Bit |
| 脉冲宽度失真（最大） | 1(ECCP) | ||
产品信息
| SPI | 1 | SPG | 25 |
| USB | 1 | 类型 | PIC microcontroller |
| 系列 | PIC18 | 协议 | 1 |
| 匹配码 | PIC18F13K50-I/SO | CAN编号 | 0 |
| 闪存大小 | :8KB | SPI编号 | 1 |
| 片内RAM（通道数×位宽） | 11-chx10-bit | 外设 | Brown-out Detect/Reset, POR, PWM, WDT |
| 架构 | RISC | 连接性 | I²C, SPI, UART/USART, USB |
| 核心处理器 | PIC | 内置振荡器 | 16MHz, 32kHz |
| 单元数量 | 1 | 定时器数量 | 4 |
| 控制器系列 | :PIC18FxxKxx | 标准交期 | 14 weeks |
| 射频系列/标准 | PIC18 | DigiKey可编程 | Yes |
| 印刷电路板数量 | 20 | A/D转换器数量 | :9 |
环境参数
| 测试温度 | -40°C | 工作温度 | -40 to 85 °C |
文档与媒体
相关型号
SW500008
microchip
Hi-Tech C Compiler For Pic18 MCUs Development Software PICC-18STD Compiler HI-TECH C Compiler for PIC18 MCUs - PICC-18 STD HI-TECH C COMPILER, FOR PIC18, STD Compilers,HI-TECHCCompilerforPIC18MCUs-Standard
PIC18F13K50-I/SO
microchip
MCU 8-bit PIC18 PIC RISC 8KB Flash 3.3V/5V 20-Pin SOIC W Tube 8 bit MCU SOIC20 IC MCU 8BIT 8KB FLASH 20SOIC PIC18F13K50-I/SO, 8 bit Microcontroller PIC 48MHz 8kb Flash, 512B RAM, USB I2C SPI 20-Pin SOIC 8-bit Microcontrollers - MCU 8KB Flash 512 RAM 15 I/O 10-B ADC USB 2.0 MCU, 8BIT, 8K FLASH, USB2.0, 20SOIC 20Pin,8KBFlash,512RAM,15I/O,10-bitADC,USB2.0 PIC microcontroller; EEPROM:256B; SRAM:512B; 48MHz; SO20 Microcontroller 8 Bit SO-20, PIC18F13K50-I/SO, Microchip Microchip PIC18F 系列 8 bit PIC MCU, 48MHz, 8 kB、256 B ROM 闪存, 512 B RAM, 1xUSB, 20针 SOIC封装 PIC18F 8K SOIC20 85°C
DV164035
microchip
MPLAB ICD 3 In Circuit Debugger In-Circuit Debuggers MPLAB ICD3 MPLAB ICD3 In-Circuit Debugger MPLAB ICD3 IN-CIRC DEBUGGER DV164035, Programmer, 16 bit, PIC DEBUGGER, MPLAB ICD 3, DSPIC FOR PIC MPLAB ICD 3 In-Circuit Debugger Kit MPLABICD3IncircuitDebugger Programmer: microcontrollers; USB; No.of diodes:3 In-Circuit Debugger/Programmer ICD3 PC hosted mode, DV164035, Microchip Microchip MPLAB ICD 3 在线调试器 处理器和微控制器开发套件
AC164114
microchip
Programming Adapter Is Designed To Prevent Damage To The USB PIC Microcontroller Sockets & Adapters PIC18F1xK50 Program Adapter PIC18F1xK50 Programming Adapter ADAPTER PROGRAMMING MPLAB PM3 AC164114, Adapter, 8 bit, PIC, Programming Adapter for the PIC18F1xK50 PROGRAMMING ADAPTER, FOR PIC18F1XK50 Accessories,PIC18F1xK50ProgrammingAdapter Microchip 编程适配器 8 位 MCU 微控制器开发套件 (PIC 内核)
AC164307
microchip
28L SSOP SOCKET MODULE FOR MPLAB PM3 Sockets & Adapters 28L Sckt Mod for MPLAB PM3 SSOP Socket Module For MPLAB PM3 MODULE SKT FOR PM3 28SSOP AC164307, Module, 8 bit, PIC, Socket Module for MPLAB PM3 SOCKET MODULE, MPLAB PM3 PROGRAMMER 28LSSOPSOCKETMODULEFORMPLABPM3 Microchip 8 位 MCU 处理器和微控制器开发套件
DM183032
microchip
PIC18 Low Cost DEMO Board Development Boards & Kits - PIC / DSPIC PIC 18 Explorer Board PICDEM PIC18 Explorer Board BOARD EXPLORER PICDEM PIC18 DM183032, Development Kit, 8 bit, PIC, PIC18F87J11 Processor PIM, PICDEM PIC18 Explorer Board PICDEM, PIC18, EXPLORER BOARD PICDEMPIC18EXPLORERBOARD Development kit: Microchip; PIC18F8722,PIC18F87J11 PICDEM PIC18 Explorer board PC hosted mode 9 V, DM183032, Microchip Microchip 8 位 MCU 微控制器开发套件

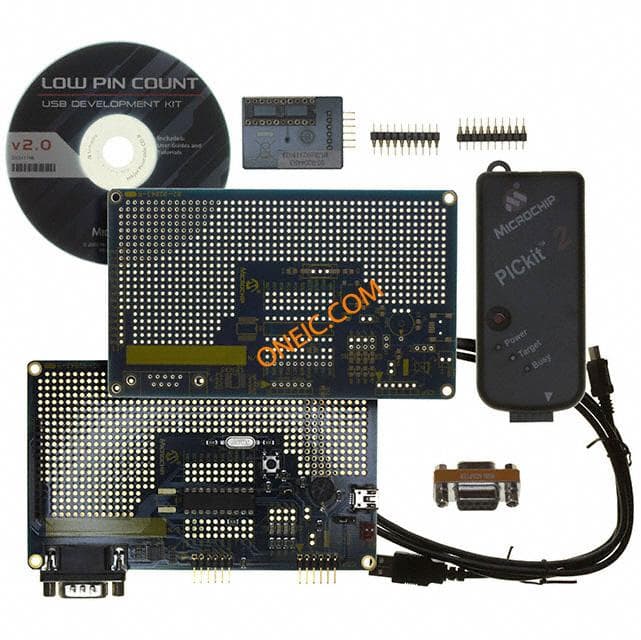

DV164126
