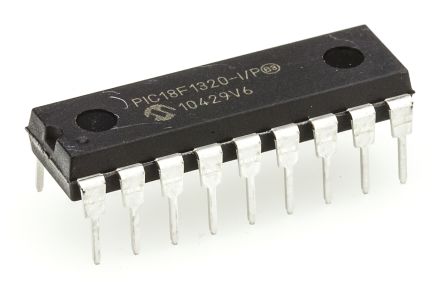

PIC18F1320-I/P
| 制造商 | Microchip Technology Inc. |
| 描述 | MCU 8-bit PIC18 PIC RISC 8KB Flash 5V 18-Pin PDIP Tube 8 bit MCU PDIP18 IC MCU 8BIT 8KB FLASH 18DIP PIC18F1320-I/P, 8 bit Microcontroller PIC 40MHz 8kb Flash, 256B RAM, 18-Pin PDIP 8-bit Microcontrollers - MCU 8KB 256 RAM 16 I/O IC, 8BIT FLASH MCU, 18F1320, DIP18 IC, 8BIT FLASH MCU, TUBE25, 18F1320 Microcontroller;8KBFlash;256RAM;256EEPROM;16I/O;PDIP-18 PIC microcontroller; EEPROM:256B; SRAM:256B; 40MHz; DIP18; 2÷5.5V Microcontroller 8 Bit DIL-18, PIC18F1320-I/P, Microchip Microchip PIC18F 系列 8 bit PIC MCU, 40MHz, 8 kB、256 B ROM 闪存, 256 B RAM, 18针 PDIP封装 PIC18F 8K PDIP18 85°C |
| 分类 |
商业参数
| 最小起订量 | 25 | 单位包装 | 25 |
| 其他名称 | PIC18F1320IP | 产品类别 | 8-bit Microcontrollers - MCU |
| 标准包装数量 | Rail / Tube | 工厂包装数量 | 25 |
| 标准封装名称 | PDIP | ||
合规参数
| RoHS | Lead free / RoHS Compliant | SVHC | :No SVHC (20-Jun-2013) |
| 欧盟RoHS | Compliant | 海关税号 | 85423190 |
| 汽车级 | NO | 零件状态 | :18F1320 |
| 抗辐射加固 | No | 无铅定义 | RoHS-conform |
| 认证机构 | No | ||
电气参数
| 输入端 | 16 | 转速 | 40 MHz |
| 定时器 | 1 x 8 bit, 1 x 8/16 bit, 2 x 16 bit | 存储器 | 8KBytes |
| 以太网 | 0 | RAM 大小 | 256 byte |
| 内核大小 | 8-Bit | 核心类型 | PIC |
| 频率 | 40 MHz | 接口 | USART |
| 时钟速率 | 40 MHz | 比较器数量 | 0 |
| EEPROM容量 | 256Byte | 存储器容量 | 8KByte |
| 存储器类型 | FLASH | 显示类型 | 0 |
| I/O 数量 | 16 | 电压范围 | 2-5.5V |
| 位数 | 10 | 额定电压 | 4.2 → 5.5 V |
| 看门狗定时器 | 1 | 时钟频率 | :40MHz |
| 数据转换器 | A/D 7x10b | FPGA 核心单元数 | :10 |
| 最大频率 | 40MHz | DAC数量 | 1 |
| 振荡器类型 | Internal | 供电电压 | 5 V |
| 数字I/O线数 | 15pins | 分辨率（位） | 16bit |
| 串行接口 | 1 | 通道数量 | 0 |
| 模拟输入/输出 | 7-Channel,10-Bit | 非易失性存储器 | 256Bytes |
| 程序存储器大小 | 8 KB | 程序存储器类型 | Flash |
| ADC/DAC 数量 | 7 | 最小输入电压 | 5.5V |
| 8位定时器数量 | 1 | 最小供电电压 | 4.2 V |
| 频率（中心/带宽） | 16 bit, 8 bit | 最大功耗 | 1000 mW |
| 每元件位数 | 10 bit | 供电电压 (Vcc/Vdd) | 4.2 V ~ 5.5 V |
机械参数
| 宽度 | 0.28in | 高度 | 0.195in |
| 长度 | 0.92in | 重量 | 0.000001 |
| 包装方式 | TUBE | 引脚样式 | Through Hole |
| 端接方式 | :Through Hole | 安装类型 | Through Hole |
| 安装样式 | Through Hole | 引脚数 | :18 |
| 封装形式 | 18PDIP | 冷却的封装 | PDIP |
| 材料表面处理 | :- | 包装数量 | PDIP |
| 尺寸/外形 | 0.92 x 0.28 x 0.195in | 位数 | 18 |
| 供应商器件封装 | 18-PDIP | 核心数/总线宽度 | 8 Bit |
| 脉冲宽度失真（最大） | 1(ECCP) | ||
产品信息
| SPG | 225 | USB | No |
| 类型 | PIC microcontroller | 系列 | PIC18 |
| 匹配码 | PIC18F1320-I/P | CAN编号 | 0 |
| 闪存大小 | :8KB | SPI编号 | 0 |
| 片内RAM（通道数×位宽） | 7-chx10-bit | 外设 | Brown-out Detect/Reset, LVD, POR, PWM, WDT |
| 架构 | RISC | 连接性 | UART/USART |
| 可编程性 | Yes | 核心处理器 | PIC |
| 内置振荡器 | 32kHz, 8MHz | 单元数量 | 1 |
| 定时器数量 | 4 | 控制器系列 | :PIC18 |
| 标准交期 | 14 weeks | 射频系列/标准 | PIC18 |
| 使用的IC/零件 | :PIC18F1320-I/P | DigiKey可编程 | Yes |
| 微控制器特性 | :ADC, BOR, PWM, TIMERS, USART, WDT | A/D转换器数量 | :7 |
环境参数
| 温度范围 | :Industrial | 测试温度 | -40°C |
| 工作温度 | -40 to 85 °C | 结工作温度 | 85C |
文档与媒体
相关型号
