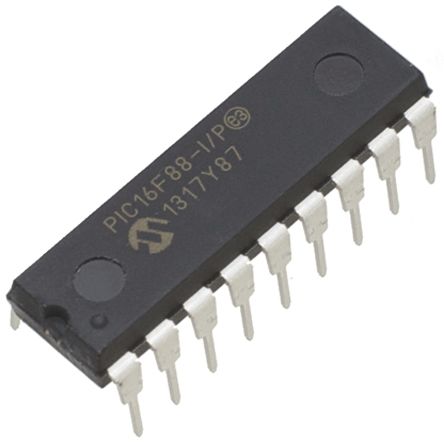

PIC16F88-I/P
| 制造商 | Microchip Technology Inc. |
| 描述 | MCU 8-bit PIC16 PIC RISC 7KB Flash 5V 18-Pin PDIP Tube 8-bit Microcontrollers - MCU 7KB 368 RAM 16 I/O 8 bit MCU PDIP18 IC MCU 8BIT 7KB FLASH 18DIP PIC16F88-I/P, 8 bit Microcontroller PIC 20MHz 256, 7168B Flash, 368B RAM, I2C SPI 18-Pin PDIP IC, 8BIT FLASH MCU, 16F88, DIP18 IC, 8-BIT FLASH MCU, TUBE25 18-Pin,7KBFlash,368RAM,16I/O PIC microcontroller; EEPROM:256B; SRAM:368B; 20MHz; DIP18; 2÷5.5V Microcontroller 8 Bit DIL-18, PIC16F88-I/P, Microchip Microchip PIC16F 系列 8 bit PIC MCU, 20MHz, 256 B，7168 B ROM 闪存, 368 B RAM, 18针 PDIP封装 PIC16F 7K PDIP18 85°C |
| 分类 |
商业参数
| 最小起订量 | 1 | 单位包装 | 25 |
| 其他名称 | PIC16F88IP | 产品类别 | 8-bit Microcontrollers - MCU |
| 标准包装数量 | Rail / Tube | 工厂包装数量 | 25 |
| 标准封装名称 | PDIP | ||
合规参数
| RoHS | RoHS Compliant | SVHC | :No SVHC (20-Jun-2013) |
| 欧盟RoHS | Compliant | 海关税号 | 85423190 |
| 零件状态 | :16F88 | 抗辐射加固 | No |
| 无铅定义 | RoHS-conform | 认证机构 | No |
电气参数
| 输入端 | 16 | 转速 | 20 MHz |
| 定时器 | 1 x 16 bit, 2 x 8 bit | 存储器 | 7KBytes |
| RAM 大小 | 368 byte | 内核大小 | 8-Bit |
| 核心类型 | PIC | 频率 | 20 MHz |
| 接口 | I2C/SPI/USART | 时钟速率 | 20 MHz |
| 比较器数量 | 2 | 分辨率 | 10bit |
| EEPROM容量 | 256Byte | 存储器容量 | 368 B |
| 存储器类型 | FLASH | I/O 数量 | 16 |
| 电压范围 | 2-5.5V | 位数 | 10 |
| 额定电压 | 4 → 5.5 V | 看门狗定时器 | 1 |
| 时钟频率 | :20MHz | 数据转换器 | A/D 7x10b |
| 最大频率 | 20MHz | DAC数量 | 1 |
| 振荡器类型 | Internal | 供电电压 | 5 V |
| 数字I/O线数 | 16pins | 分辨率（位） | 10Bit |
| 串行接口 | 1 | 通道数量 | 7 |
| 模拟输入/输出 | 2 | 非易失性存储器 | 256Bytes |
| 程序存储器大小 | 7 KB | 程序存储器类型 | Flash |
| ADC/DAC 数量 | 7 | 最小输入电压 | 5.5V |
| 8位定时器数量 | 2 | 最小供电电压 | 4 V |
| 频率（中心/带宽） | 16 bit, 8 bit | 最大功耗 | 1000 mW |
| 每元件位数 | 10 bit | 供电电压 (Vcc/Vdd) | 4 V ~ 5.5 V |
机械参数
| 宽度 | 6.6mm | 高度 | 3.68mm |
| 长度 | 22.99mm | 重量 | 0.000001 |
| 包装方式 | Tube | 引脚样式 | Through Hole |
| 端接方式 | :Through Hole | 安装类型 | Through Hole |
| 安装样式 | Through Hole | 引脚数 | :18 |
| 封装形式 | 18PDIP | 冷却的封装 | PDIP |
| 材料表面处理 | :- | 包装数量 | PDIP |
| 尺寸/外形 | 22.99 x 6.6 x 3.68mm | 位数 | 18 |
| 供应商器件封装 | 18-PDIP | 核心数/总线宽度 | 8 Bit |
| 脉冲宽度失真（最大） | 1(10 bit) (CCP) | ||
产品信息
| SPI | 1 | SPG | 225 |
| USB | No | 类型 | PIC microcontroller |
| 系列 | PIC16 | 协议 | 1 |
| 匹配码 | PIC16F88-I/P | CAN编号 | 0 |
| 闪存大小 | :7KB | SPI编号 | 0 |
| 片内RAM（通道数×位宽） | 7-chx10-bit | 外设 | Brown-out Detect/Reset, POR, PWM, WDT |
| 架构 | RISC | 连接性 | I²C, SPI, UART/USART |
| 可编程性 | Yes | 核心处理器 | PIC |
| 内置振荡器 | 8MHz | 单元数量 | 1 |
| 定时器数量 | 3 | 控制器系列 | :PIC16F |
| 标准交期 | 14 weeks | 射频系列/标准 | PIC16 |
| 使用的IC/零件 | :PIC16F88-I/P | DigiKey可编程 | Yes |
| 微控制器特性 | :ADC, BOD, ICSP, SPI/I2C, TIMERS, PWM, USART | A/D转换器数量 | :7 |
环境参数
| 温度范围 | :Industrial | 测试温度 | 85°C |
| 工作温度 | -40 to 85 °C | 结工作温度 | 85C |
