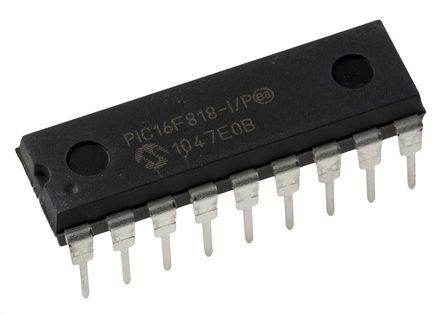

PIC16F818-I/P
| 制造商 | Microchip Technology Inc. |
| 描述 | MCU 8-bit PIC16 PIC RISC 1.75KB Flash 5V 18-Pin PDIP Tube 8 bit MCU PDIP18 IC MCU 8BIT 1.75KB FLASH 18DIP PIC16F818-I/P, 8 bit Microcontroller PIC 20MHz 128, 1792B Flash, 128B RAM, I2C SPI 18-Pin PDIP 8-bit Microcontrollers - MCU 1.75KB 128RAM 16 I/O Ind Temp PDIP18 IC, 8BIT FLASH MCU, 16F818, DIP18 IC, 8-BIT FLASH MCU, TUBE25 18-Pin,1.75KBFlash,128RAM,16I/O PIC microcontroller; EEPROM:128B; SRAM:128B; 20MHz; DIP18; 2÷5.5V Microcontroller 8 Bit DIL-18, PIC16F818-I/P, Microchip Microchip PIC16F 系列 8 bit PIC MCU, 20MHz, 128 B，1792 B ROM 闪存, 128 B RAM, 18针 PDIP封装 PIC16F 1,75K PDIP18 85°C |
| 分类 |
商业参数
| 最小起订量 | 1 | 单位包装 | 25 |
| 其他名称 | PIC16F818IP | 产品类别 | 8-bit Microcontrollers - MCU |
| 标准包装数量 | Rail / Tube | 工厂包装数量 | 25 |
合规参数
| RoHS | Lead free / RoHS Compliant | SVHC | :No SVHC (20-Jun-2013) |
| 海关税号 | 85423190 | 零件状态 | :16F818 |
| 抗辐射加固 | No | 无铅定义 | RoHS-conform |
电气参数
| 输入端 | 16 | 转速 | 20 MHz |
| 定时器 | 1 x 16 bit, 2 x 8 bit | 存储器 | 1.75KBytes |
| RAM 大小 | 128 byte | 内核大小 | 8-Bit |
| 核心类型 | PIC | 频率 | 20 MHz |
| 接口 | I2C/SPI | 时钟速率 | 20 MHz |
| 比较器数量 | 0 | 分辨率 | 10bit |
| EEPROM容量 | 128Byte | 存储器容量 | 1.75KByte |
| 存储器类型 | FLASH | I/O 数量 | 16 |
| 电压范围 | 2-5.5V | 位数 | :8 |
| 额定电压 | 4 → 5.5 V | 看门狗定时器 | 1 |
| 时钟频率 | :20MHz | 数据转换器 | A/D 5x10b |
| 最大频率 | 20MHz | DAC数量 | 1 |
| 振荡器类型 | Internal | 供电电压 | 5 V |
| 数字I/O线数 | 16pins | 分辨率（位） | 10Bit |
| 通道数量 | 1 | 模拟输入/输出 | 5-Channel,10-Bit |
| 非易失性存储器 | 128Bytes | 程序存储器大小 | 1.75 KB |
| 程序存储器类型 | Flash | ADC/DAC 数量 | 5channels |
| 最小输入电压 | 5.5V | 8位定时器数量 | 2 |
| 最小供电电压 | 4 V | 频率（中心/带宽） | 16 bit, 8 bit |
| 最大功耗 | 1000 mW | 每元件位数 | 10 bit |
| 供电电压 (Vcc/Vdd) | 4 V ~ 5.5 V | ||
机械参数
| 宽度 | 6.6mm | 高度 | 3.68mm |
| 长度 | 22.99mm | 重量 | 0.000001 |
| 包装方式 | Tube | 端接方式 | :Through Hole |
| 安装类型 | Through Hole | 安装样式 | Through Hole |
| 引脚数 | :18 | 封装形式 | 18PDIP |
| 冷却的封装 | PDIP | 材料表面处理 | :- |
| 包装数量 | 50 | 尺寸/外形 | 22.99 x 6.6 x 3.68mm |
| 位数 | 18 | 供应商器件封装 | 18-PDIP |
| 核心数/总线宽度 | 8 Bit | 脉冲宽度失真（最大） | 1(10 bit) (CCP) |
产品信息
| SPG | 50 | USB | 0 |
| 类型 | PIC microcontroller | 系列 | PIC16 |
| 匹配码 | PIC16F818-I/P | 闪存大小 | :1.75KB |
| SPI编号 | 1 | 片内RAM（通道数×位宽） | 5-chx10-bit |
| 外设 | Brown-out Detect/Reset, POR, PWM, WDT | 架构 | RISC |
| 连接性 | I²C, SPI | 可编程性 | Yes |
| 核心处理器 | PIC | 单元数量 | 1 |
| 定时器数量 | 3 | 控制器系列 | :PIC16F |
| 标准交期 | 14 weeks | 射频系列/标准 | PIC16 |
| 使用的IC/零件 | :PIC16F818-I/P | 微控制器特性 | :ADC, BOR, ICSP, INTERNAL RC, PWM, SPI, WDT |
| A/D转换器数量 | :5 | ||
环境参数
| 温度范围 | :Industrial | 测试温度 | -40°C |
| 工作温度 | -40 to 85 °C | 结工作温度 | 85C |
