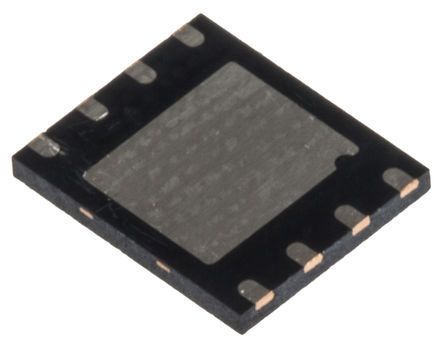

点击放大查看
PIC12F629-I/MF
| 制造商 | Microchip Technology Inc. |
| 描述 | MCU 8-bit PIC12 PIC RISC 1.75KB Flash 2.5V/3.3V/5V 8-Pin DFN-S EP Tube 8 bit MCU DFN-S8 IC MCU 8BIT 1.75KB FLASH 8DFN PIC12F629-I/MF, 8 bit Microcontroller PIC 20MHz 1024 Flash, 64B RAM, 8-Pin DFN-S 8-bit Microcontrollers - MCU 1.75KB 64 RAM 6 I/O Ind Temp DFN8 IC, 8-BIT MCU, 1.75K FLASH, DFN8 IC,PIC12F629-I/MF Microchip PIC12F 系列 8 bit PIC MCU, 20MHz, 1024 x 14 字，128 B ROM 闪存, 64 B RAM, 8针 DFN-S封装 |
| 分类 |
商业参数
| 最小起订量 | 600 | 单位包装 | 60 |
| 产品类别 | 8-bit Microcontrollers - MCU | 标准包装数量 | Rail / Tube |
| 工厂包装数量 | 60 | ||
合规参数
| RoHS | Lead free / RoHS Compliant | SVHC | :No SVHC (20-Jun-2013) |
| 海关税号 | 85411000 | 无铅定义 | RoHS-conform |
电气参数
| 转速 | 20 MHz | 定时器 | 1 x 16 bit, 1 x 8 bit |
| RAM 大小 | 64 byte | 内核大小 | 8-Bit |
| 核心类型 | PIC | 接口 | RS-232, USB |
| 时钟速率 | 20 MHz | EEPROM容量 | 128Byte |
| 存储器容量 | 1.7KByte | 存储器类型 | FLASH |
| I/O 数量 | 6 | 额定电压 | 2 → 5.5 V |
| 看门狗定时器 | 1 | 时钟频率 | :20MHz |
| 最大频率 | 20MHz | 振荡器类型 | Internal |
| 供电电压 | 2.5|3.3|5 V | 数字I/O线数 | 6pins |
| 通道数量 | 0 | 程序存储器大小 | 1.75 KB |
| 程序存储器类型 | Flash | 频率（中心/带宽） | 16 bit, 8 bit |
| 最大功耗 | 800 mW | 每元件位数 | :10 |
| 供电电压 (Vcc/Vdd) | 2 V ~ 5.5 V | ||
机械参数
| 宽度 | 6mm | 高度 | 0.95mm |
| 长度 | 5mm | 重量 | 0.00005 |
| 包装方式 | Tube | 端接方式 | :SMD |
| 安装类型 | Surface Mount | 安装样式 | SMD/SMT |
| 引脚数 | :8 | 封装形式 | 8DFN-S EP |
| 冷却的封装 | DFN-S | 材料表面处理 | :MSL 1 - Unlimited |
| 尺寸/外形 | 5 x 6 x 0.95mm | 位数 | 8 |
| 供应商器件封装 | 8-DFN-S (6x5) | 核心数/总线宽度 | 8 Bit |
产品信息
| USB | 0 | 系列 | PIC12 |
| 匹配码 | PIC12F629-I/MF | 闪存大小 | :1.75KB |
| 片内RAM（通道数×位宽） | No | 外设 | POR, WDT |
| 架构 | RISC | 核心处理器 | PIC |
| 定时器数量 | 2 | 控制器系列 | :PIC12F6xx |
| 标准交期 | 14 weeks | 射频系列/标准 | PIC12 |
环境参数
| 测试温度 | -40°C | 工作温度 | -40 to 85 °C |
