点击放大查看

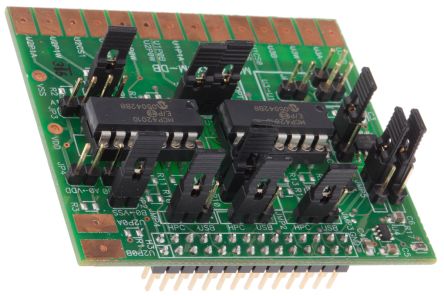

MCP4XXXDM-DB
| 制造商 | |
| 描述 | MCP4XX Digital Potentiometer Daughter Board Daughter Cards & OEM Boards MCP4XXX Digipot Dghtr Brd DEVTOOL MCP4021 MCP4011 MCP42X BOARD DAUGHTER DIGIPOT MCP4XXX MCP4XXXDM-DB, Development Kit MCP40XX, DIGITAL POT, DAUGHTER BOARD Microchip 模拟开发套件 |
| 分类 |
商业参数
| 最小起订量 | 1 | 产品 | Daughter Boards |
| 单位包装 | 1 | 其他名称 | MCP4XXXDMDB |
| 产品类别 | Daughter Cards & OEM Boards | 标准包装数量 | Boxed |
| 工厂包装数量 | 1 | ||
合规参数
| RoHS | RoHS Compliant | SVHC | :No SVHC (20-Jun-2013) |
| 海关税号 | 85423190 | 汽车级 | NO |
| 无铅定义 | RoHS-conform | ||
电气参数
| 通道数 | 2 | 核心类型 | :PIC |
| 元件数量 | :MCP4011, MCP4021, MCP42xxx | ||
机械参数
| 重量 | 0.45 | 封装形式 | EvalBoard |
产品信息
| 类型 | Development Kit | 内容 | Daughter Board, CD |
| 嵌入式 | Yes, MCU, 8-Bit | 产品特性 | :28-pin Header, PICDEM LCD, TC1240A Voltage, Doubler |
| 功能 | Digital potentiometer daughter boardÿ | 基本单元 | :4 |
| 匹配码 | MCP4XXXDM-DB | 技术 | Switches & Multiplexer |

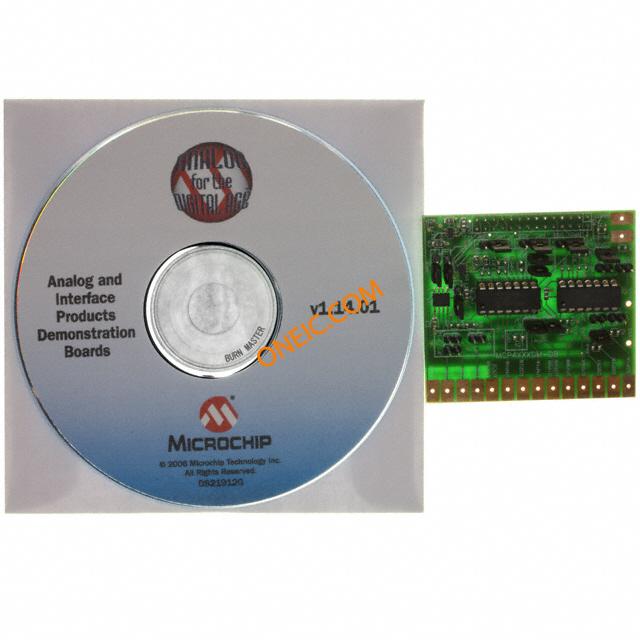

| 套件内容 | CD with Documentation, MCP4XXX Digital Potentiometer Daughter Board | 主要用途 | Digital Potentiometer |
| 制造商全称 | :(Not Available) | 卡标准 | Development Kit |
| 标准交期 | 19 weeks | 工具类型/特性 | MCP4021, MCP4011, MCP42xxx |
| 主要特性 | 2 Dual Pots and 1 Single Pot, 10 kOhm, Non Volatile | 使用的IC/零件 | MCP42010-103, MCP4021-103 |
| 芯片组制造商 | :Microchip | 次要特性 | 2.7 ~ 5.5 V, 150 ppm/°C or 800 ppm/°C |
| 支持MCU系列 | :MCP42XXX, MCP402X | 适用产品/相关产品 | DM183022, DM163025, DM163022-1, DM163030 |
