点击放大查看

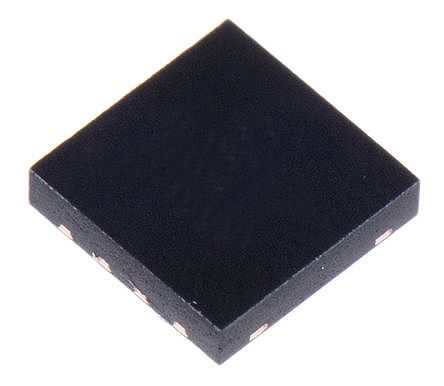

MCP1726-2502E/MF
| 制造商 | Microchip Technology Inc. |
| 描述 | LDO Regulator Pos 2.5V 1A 8-Pin DFN EP Tube 1A CMOS LDO, Vout=2.5V, Extended Tem IC REG LDO 2.5V 1A 8DFN MCP1726-2502E/MF, Low Dropout Voltage Regulator, 1A, 2.5V 2%, 2.3 to 6Vin, 8-Pin DFN LDO Voltage Regulators 1A 2.5V Vout Extended Temp IC, LDO, 1A, 2.5V, 8DFN Microchip , LDO 调节器, 1A, 2.5 V输出 2%, 2.3 → 6 V输入, 8针 DFN封装 |
| 分类 |
商业参数
| 最小起订量 | 600 | 单位包装 | 120 |
| 其他名称 | MCP17262502EMF | 产品类别 | LDO Voltage Regulators |
| 标准包装数量 | Rail / Tube | 工厂包装数量 | 120 |
合规参数
| RoHS | Lead free / RoHS Compliant | SVHC | :No SVHC (20-Jun-2013) |
| 海关税号 | 85423990 | ||
电气参数
| 精度 | ±2.5 % | 输出类型 | Fixed |
| 额定电压 | 2.3 V | 电源调整率 | 0.05(Typ) %/V |
| 负载调整率 | 0.5(Typ) % | 输出电流 | 1(Min) A |
| 供电电压 | 0.22@1A V | 输出数量 | 1 |
| 稳压器拓扑 | Positive Fixed | 稳压器数量 | 1 |
| 最小输入电压 | 2.5V | 静态电流（最大） | 0.22 mA |
| 电压负载调整率 | 2.5 % | 输入偏置电流（最大） | 0.14 mA |
| 最大持续工作电压（MCOV） | :6V | ||
机械参数
| 重量 | 0.0002 | 包装方式 | Tube |
| 安装类型 | Surface Mount | 安装样式 | SMD/SMT |
| 引脚数 | :8 | 封装形式 | 8DFN EP |
| 材料表面处理 | :MSL 1 - Unlimited | 供应商器件封装 | 8-DFN-EP (3x3) |
产品信息
| 类型 | Linear | 极性 | Positive |
| 基本单元 | :1726 | ||
环境参数
| 工作温度 | -40 to 125 °C | ||
