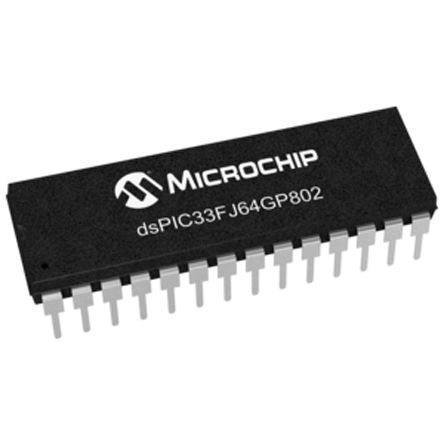

DSPIC33FJ64GP802-I/SP
| 制造商 | Microchip Technology Inc. |
| 描述 | MCU 16-bit dSPIC33 dsPIC RISC 64KB Flash 3.3V 28-Pin SPDIP Tube 16-bit DSC, 64KB Flash,CAN, DMA,40 M IC DSC 16BIT 64KB FLASH 28SDIP DSPIC33FJ64GP802-I/SP, 16 bit Microcontroller dsPIC 40MIPS 64kb Flash, 16kb RAM, I2C SPI 28-Pin SPDIP Digital Signal Processors & Controllers - DSP, DSC 16B DSC 28LD64KB DMA 40MIPS MCU 16-bit dsPIC33F dsPIC RISC 64KB Flash 3.3V 28-Pin SPDIP Tube DSC, 16BIT, 64K FLASH, 40MIPS, 28SPDIP 16-BitDSC,28LD,64KBFlash,CAN,DMA,40MIPS,nanoWatt Micro16b,16kb RAM,, |
| 分类 |
商业参数
| 最小起订量 | 1600 | 产品 | DSCs |
| 单位包装 | 15 | 其他名称 | DSPIC33FJ64GP802ISP |
| 产品类别 | Digital Signal Processors & Controllers - DSP, DSC | 标准包装数量 | Rail / Tube |
| 工厂包装数量 | 15 | ||
合规参数
| RoHS | Lead free / RoHS Compliant | SVHC | :No SVHC (20-Jun-2013) |
| 海关税号 | 85423190 | 抗辐射加固 | No |
电气参数
| 输入端 | 21 | 转速 | 40 MHz |
| 定时器 | 5 x 16 bit | 存储器 | 64KBytes |
| RAM 大小 | 16 KB | 内核大小 | 16-Bit |
| 核心类型 | dsPIC | 频率 | 40 MHz |
| 接口 | CAN/I2C/SPI/UART | 时钟速率 | 40 MHz |
| 比较器数量 | 2 | 分辨率 | 16bit |
| 存储器容量 | 16 KB | 存储器类型 | Flash |
| I/O 数量 | 21 | 电压范围 | 3-3.6V |
| 位数 | 16 | 核心电压 | :2.75V |
| 额定电压 | 3 → 3.6 V | 看门狗定时器 | 1 |
| 时钟频率 | 40MIPS | 数据转换器 | A/D 10x10b/12b, D/A 4x16b |
| 最大频率 | 40MIPS | DAC数量 | 4 |
| 振荡器类型 | Internal | 供电电压 | 3.3 V |
| 分辨率（位） | 10 bit, 12 bit | 通道数量 | 1 |
| 模拟输入/输出 | 10-Channel,12-Bit | 非易失性存储器 | 0Bytes |
| 程序存储器大小 | 64 KB | 程序存储器类型 | Flash |
| 工作频率 | :40MHz | ADC/DAC 数量 | 10 |
| 最小供电电压 | 2.7/3 V | 频率（中心/带宽） | 16bit |
| 供电电压 (Vcc/Vdd) | 3 V ~ 3.6 V | ||
机械参数
| 宽度 | 0.295in | 高度 | 0.15in |
| 长度 | 1.4in | 重量 | 0.001333 |
| 包装方式 | Tube | 端接方式 | :Through Hole |
| 安装类型 | Through Hole | 安装样式 | Through Hole |
| 引脚数 | :28 | 封装形式 | 28SPDIP |
| 冷却的封装 | SPDIP | 材料表面处理 | :- |
| 尺寸/外形 | 1.4 x 0.295 x 0.15in | 位数 | 28 |
| 供应商器件封装 | 28-SPDIP | 核心数/总线宽度 | 16 Bit |
| 脉冲宽度失真（最大） | 4(16 bit) | ||
产品信息
| USB | 0 | 类型 | dSPIC33 |
| 系列 | DSPIC33F | 产品特性 | CAN Controller |
| 基本单元 | :33 | 闪存大小 | :64KB |
| 片内RAM（通道数×位宽） | 10-chx10-bit|10-chx12-bit | 外设 | AC'97, Brown-out Detect/Reset, DMA, I²S, POR, PWM, WDT |
| 架构 | RISC | 连接性 | CAN, I²C, IrDA, LIN, SPI, UART/USART |
| 可编程性 | Yes | 核心处理器 | dsPIC |
| 定时器数量 | 5 | 射频系列/标准 | dSPIC33 |
环境参数
| 工作温度 | -40 to 85 °C | 结工作温度 | 85C |
