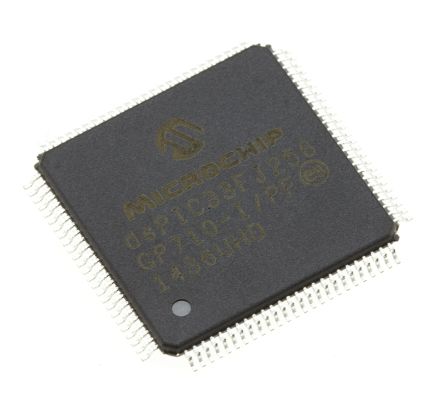

DSPIC33FJ256GP710-I/PF
| 制造商 | Microchip Technology Inc. |
| 描述 | MCU 16-Bit dSPIC33 dsPIC RISC 256KB Flash 3.3V 100-Pin TQFP Tray MCU 16-bit dsPIC33F dsPIC RISC 256KB Flash 3.3V 100-Pin TQFP Tray 16 bit MCU / DSP TQFP100 14x14 IC DSC 16BIT 256KB FLASH 100TQFP DSPIC33FJ256GP710-I/PF, 16 bit Microcontroller dsPIC 40MIPS 256kb Flash, 30kb RAM, I2C SPI 100-Pin TQFP Digital Signal Processors & Controllers - DSP, DSC 40MIPS 256KB MCU 16-bit dSPIC33 dsPIC RISC 256KB Flash 3.3V 100-Pin TQFP Tray IC, MCU-DSP, 16BIT 40MIPS 256K, SMD 16-BitMCU/DSP100LD40MIPS256KBFlash DsPIC microcontroller; Memory:256kB; SRAM:30720B; TQFP100 Microcontroller 16 Bit TQFP-100,40 MHz, DSPIC33FJ256GP710-I/PF, Microchip Micro, 16 Bit MCU/DSP 40MIPS 256KB FLASH dsPIC33FJ 256K TQFP100 85°C |
| 分类 |
商业参数
| 最小起订量 | 1 | 产品 | DSCs |
| 单位包装 | 90 | 其他名称 | DSPIC33FJ256GP710IPF |
| 产品类别 | Digital Signal Processors & Controllers - DSP, DSC | 标准包装数量 | Trays |
| 工厂包装数量 | 90 | 标准封装名称 | QFP |
合规参数
| RoHS | Lead free / RoHS Compliant | SVHC | :No SVHC (20-Jun-2013) |
| 欧盟RoHS | Compliant | 海关税号 | 85411000 |
| 抗辐射加固 | No | 无铅定义 | RoHS-conform |
| 认证机构 | No | ||
电气参数
| 输入端 | 85 | 转速 | 40 MHz |
| 定时器 | 9 x 16 bit | 存储器 | 256KBytes |
| RAM 大小 | 30 KB | 内核大小 | 16-Bit |
| 核心类型 | dsPIC | 频率 | 40 MHz |
| 接口 | CAN/I2C/SPI/UART | 时钟速率 | 40 MHz |
| 比较器数量 | 8 | 分辨率 | 16bit |
| 存储器容量 | 128KByte | 存储器类型 | FLASH |
| 显示类型 | no | I/O 数量 | 85 |
| 电压范围 | 3-3.6V | 位数 | 10/12 |
| 核心电压 | :2.75V | 额定电压 | 3 → 3.6 V |
| 看门狗定时器 | 1 | 时钟频率 | 40MIPS |
| 数据转换器 | A/D 32x10b/12b | 最大频率 | 160MHz |
| DAC数量 | 8 | 振荡器类型 | Internal |
| 串行协议 | 2 | 供电电压 | 3.3 V |
| 数字I/O线数 | 53pins | RS-232（422、485） | 2 |
| 分辨率（位） | 12Bit | 通道数量 | 2 |
| 模拟输入/输出 | 32-Channel,12-Bit | 非易失性存储器 | 0Bytes |
| 程序存储器大小 | 256 KB | 程序存储器类型 | Flash |
| 工作频率 | :40MHz | ADC/DAC 数量 | 64/64 |
| 最小输入电压 | 3V | 最小供电电压 | 3 V |
| 频率（中心/带宽） | 16bit | 供电电压 (Vcc/Vdd) | 3 V ~ 3.6 V |
机械参数
| 宽度 | 14mm | 高度 | 1.05mm |
| 长度 | 14mm | 重量 | 0.0002 |
| 包装方式 | TRAY | 引脚样式 | Gull-wing |
| 端接方式 | :SMD | 安装类型 | Surface Mount |
| 安装样式 | SMD/SMT | 引脚数 | :100 |
| 封装形式 | 100TQFP | 冷却的封装 | TQFP |
| 材料表面处理 | :MSL 3 - 168 hours | 总长度 | 14 |
| 包装数量 | TQFP | 尺寸/外形 | 14 x 14 x 1.05mm |
| 位数 | 100 | 外壳尺寸-插件 | 1 |
| 供应商器件封装 | 100-TQFP (14x14) | 核心数/总线宽度 | 16 Bit |
| 脉冲宽度失真（最大） | 8(16 bit) | ||
产品信息
| SPI | 2 | SPG | 45 |
| USB | No | 类型 | DSP |
| 系列 | DSPIC33F | 产品特性 | DMA |
| 协议 | 2 | 匹配码 | DSPIC33FJ256GP710-I/PF |
| CAN编号 | 0 | 闪存大小 | :256KB |
| SPI编号 | 2 | 片内RAM（通道数×位宽） | 64-chx10-bit|64-chx12-bit |
| 外设 | AC'97, Brown-out Detect/Reset, DMA, I²S, POR, PWM, WDT | 架构 | RISC |
| 连接性 | CAN, I²C, IrDA, LIN, SPI, UART/USART | 可编程性 | Yes |
| 核心处理器 | dsPIC | 内置振荡器 | 512kHz, 7,37MHz |
| 单元数量 | 1 | 定时器数量 | 9 |
| 标准交期 | 14 weeks | 射频系列/标准 | dSPIC33 |
| DigiKey可编程 | Yes | 宏单元数量 | 4 |
| 印刷电路板数量 | 100 | A/D转换器数量 | :64 |
环境参数
| 测试温度 | -40°C | 工作温度 | -40 to 85 °C |
| 结工作温度 | 85C | ||
文档与媒体
相关型号
