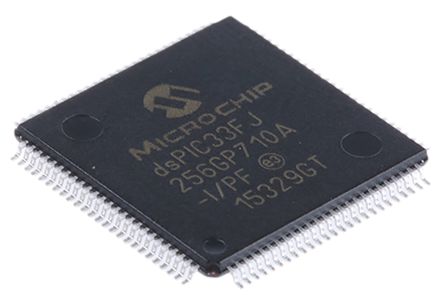

DSPIC33FJ256GP710A-I/PF
| 制造商 | Microchip Technology Inc. |
| 描述 | MCU 16-bit dSPIC33 dsPIC RISC 256KB Flash 3.3V 100-Pin TQFP Tray IC DSC 16BIT 256KB FLASH 100TQFP Digital Signal Processors & Controllers - DSP, DSC 16Bit 40MIPS 256KB Flash MCU 16-bit dsPIC33F dsPIC RISC 256KB Flash 3.3V 100-Pin TQFP Tray IC, DSC, 16BIT, 256K FLASH, 100TQFP MCU,dsPIC33,40MIPS,256KBFlash,TQFP100 DsPIC microcontroller; Memory:256kB; SRAM:30720B; TQFP100 Microcontroller 16 Bit TQFP-100, DSPIC33FJ256GP710A-I/PF, Microchip Microchip 16bit 数字信号处理器 DSP, 40MHz, 256 kB ROM 闪存, 30 kB RAM, 100针 TQFP封装 dsPIC33FJ 256K TQFP100 85°C |
| 分类 |
商业参数
| 产品 | DSCs | 其他名称 | DSPIC33FJ256GP710AIPF |
| 产品类别 | Digital Signal Processors & Controllers - DSP, DSC | 标准包装数量 | Trays |
| 工厂包装数量 | 90 | ||
合规参数
| RoHS | Lead free / RoHS Compliant | SVHC | :No SVHC (20-Jun-2013) |
| 海关税号 | 85423190 | 抗辐射加固 | No |
电气参数
| 转速 | 40 MHz | 存储器 | 256kB |
| RAM 大小 | 30 KB | 内核大小 | 16-Bit |
| 核心类型 | dsPIC | 频率 | 40 MHz |
| 接口 | CAN/I2C/SPI/UART | 时钟速率 | 40 MHz |
| 存储器容量 | 30 KB | I/O 数量 | 85 |
| 核心电压 | :2.75V | 看门狗定时器 | 1 |
| 数据转换器 | A/D 32x10b/12b | 最大频率 | 80MHz |
| 振荡器类型 | Internal | 供电电压 | 3.3 V |
| 程序存储器大小 | 256 KB | 程序存储器类型 | Flash |
| 工作频率 | :40MHz | 最小供电电压 | 3 V |
| 供电电压 (Vcc/Vdd) | 3 V ~ 3.6 V | ||
机械参数
| 重量 | 0.02 | 包装方式 | Tray |
| 安装类型 | Surface Mount | 安装样式 | SMD/SMT |
| 引脚数 | :100 | 封装形式 | 100TQFP |
| 冷却的封装 | TQFP | 材料表面处理 | :MSL 3 - 168 hours |
| 包装数量 | 15 | 位数 | 100 |
| 供应商器件封装 | 100-TQFP (14x14) | 核心数/总线宽度 | 16 Bit |
产品信息
| SPG | 15 | 类型 | dSPIC33 |
| 系列 | DSPIC33F | 产品特性 | CAN Controller |
| 闪存大小 | :256KB | 片内RAM（通道数×位宽） | 64-chx10-bit|64-chx12-bit |
| 外设 | AC'97, Brown-out Detect/Reset, DMA, I²S, POR, PWM, WDT | 架构 | RISC |
| 连接性 | CAN, I²C, IrDA, LIN, SPI, UART/USART | 可编程性 | Yes |
| 核心处理器 | dsPIC | 内置振荡器 | 512kHz, 7,37MHz |
| 单元数量 | 1 | 定时器数量 | 9 |
| 射频系列/标准 | dSPIC33 | 宏单元数量 | 4 |
环境参数
| 工作温度 | -40 to 85 °C | 结工作温度 | 85C |
