DSPIC33FJ128GP202-I/SP
| 制造商 | Microchip Technology Inc. |
| 描述 | MCU 16-bit dSPIC33 dsPIC RISC 128KB Flash 3.3V 28-Pin SPDIP Tube 16-bit DSC, 128KB Flash,DMA,40 MIPS, IC DSC 16BIT 128KB FLASH 28SDIP DSPIC33FJ128GP202-I/SP, 16 bit Microcontroller dsPIC 40MIPS 128kb Flash, 8kb RAM, I2C SPI 28-Pin SPDIP Digital Signal Processors & Controllers - DSP, DSC 16B DSC 28LD128KB DMA 40MIPS 16-bitDSC,28LD,128KBFlash,DMA,40MIPS,nanoWatt DsPIC microcontroller; Memory:128kB; SRAM:8192B; DIP28; 3÷3.6V Micro16b,8kb RAM,, |
| 分类 |
商业参数
| 最小起订量 | 1600 | 产品 | DSCs |
| 单位包装 | 15 | 产品类别 | Digital Signal Processors & Controllers - DSP, DSC |
| 标准包装数量 | Rail / Tube | 工厂包装数量 | 15 |
合规参数
| RoHS | Lead free / RoHS Compliant | ||
电气参数
| 输入端 | 21 | 转速 | 40 MHz |
| 定时器 | 5 x 16 bit | 存储器 | 128KBytes |
| RAM 大小 | 8 KB | 内核大小 | 16-Bit |
| 核心类型 | dsPIC | 接口 | I2C/SPI/UART |
| 时钟速率 | 40 MHz | 比较器数量 | 2 |
| 分辨率 | 16bit | 存储器容量 | 8 KB |
| 存储器类型 | Flash | I/O 数量 | 21 |
| 电压范围 | 3-3.6V | 计数器/定时器 | 5 |
| 位数 | 16 | 额定电压 | 3 → 3.6 V |
| 看门狗定时器 | 1 | 时钟频率 | 40MIPS |
| 数据转换器 | A/D 10x10b/12b | 最大频率 | 40MIPS |
| DAC数量 | 4 | 振荡器类型 | Internal |
| 供电电压 | 3.3 V | 分辨率（位） | 10 bit, 12 bit |
| 通道数量 | 0 | 模拟输入/输出 | 10-Channel,10-Bit |
| 非易失性存储器 | 0Bytes | 程序存储器大小 | 128 KB |
| 程序存储器类型 | Flash | ADC/DAC 数量 | 10 |
| 最小供电电压 | 3...3.6V | 频率（中心/带宽） | 16bit |
| 计数器/定时器数量 | 5 Timer | 供电电压 (Vcc/Vdd) | 3 V ~ 3.6 V |
机械参数
| 宽度 | 0.295in | 高度 | 0.15in |
| 长度 | 1.4in | 重量 | 6.6 g |
| 包装方式 | Tube | 安装类型 | Through Hole |
| 连接器类型 | 2 | 安装样式 | Through Hole |
| 引脚数 | 28 | 封装形式 | 28SPDIP |
| 冷却的封装 | SPDIP | 包装数量 | 12 |
| 尺寸/外形 | 1.4 x 0.295 x 0.15in | 触点数 | 1 |
| 位数 | 28 | 供应商器件封装 | 28-SPDIP |
| 核心数/总线宽度 | 16 Bit | 脉冲宽度失真（最大） | 4(16 bit) |
产品信息
| SPG | 12 | USB | 0 |
| 类型 | dSPIC33 | 系列 | DSPIC33F |
| 功能 | Y | 片内RAM（通道数×位宽） | 10-chx10-bit|10-chx12-bit |
| 外设 | AC'97, Brown-out Detect/Reset, DMA, I²S, POR, PWM, WDT | 架构 | RISC |
| 连接性 | I²C, IrDA, LIN, SPI, UART/USART | 制造商全称 | Microchip Technology |
| 架构类型 | RISC | 核心处理器 | dsPIC |
| 内置振荡器 | 512kHz, 7,37MHz | 单元数量 | 1 |
| 定时器数量 | 5 | 定时器分辨率 | 16Bit |
| 射频系列/标准 | dSPIC33 | 宏单元数量 | 2 |
| 输入数量及类型 | 21 I/O | ||
环境参数
| 工作温度 | -40 to 85 °C | ||
文档与媒体
相关型号
DV164005
microchip
In Circuit Debugger MPLAB ICD 2 Module Is A Low Cost Development Tool That Connects Between The PC And The Designers Target Board In-Circuit Debuggers MPLAB ICD2 KIT ICD2 SIMPLE SUIT W/USB CABLE KIT ICD2 SIMPLE SUIT W/USB CABLEIN-CIRCUIT DEBUGGER MPLAB ICD 2, FOR PIC, DSPIC, ICD I/F MPLABIN-CIRCUITDEBUGGER2MODULE(ICD2MODULEANDUSBCABLE)
DV164033
microchip
Evaluation Board For Application Development Using Microchipys PIC24F, 16Bit Microcontrollers Development Boards & Kits - PIC / DSPIC ICD 2 w/ Explorer 16 Development Board Explorer 16 Starter Kit KIT START EXPLORER 16 MPLAB ICD2 EXPLORER 16 KIT; MPLAB ICD 2 WITH EXPORER 16 PIC24, DSPIC33, EXPLORER 16 KIT EXPLORER16KIT,MPLABICD2WITHEXPORER16 Development kit: Microchip
DV244005
microchip
MPLAB Real ICE In Circuit Emulator Probe Kit Emulators / Simulators In Circuit Emulator MPLAB REAL ICE REAL ICE with Base Probe KIT PROBE MPLAB REAL ICE DV244005, Development Kit, 32 bit, PIC PROBE KIT, MPLAB REAL ICE MPLABREALIn-CircuitEmulator(ICE)withIDE Programmer: microcontrollers; USB; No.of diodes:2 MPLAB REAL ICE, in-circuit emulator PC hosted mode, DV244005, Microchip Microchip 处理器和微控制器开发套件
MA330019
microchip
DSPIC33F MC 44P QFN TO 100P PI Daughter Cards & OEM Boards 44P QFN TO 100P PIM dsPIC33FJ128GP804 dsPIC33F MC 44P QFN TO 100P PIM (dsP PIM DSPIC33F MC 44P-100P QFN MA330019, Module, 16 bit, dsPIC, Plug-in Module for the dsPIC33FJ128GP804 DSC MOD, PLUG-IN, 44P QFN-100P, 33FJ128GP804 PLUG-INMODULE,MA330019
DM240001
microchip
Explorer 16 Demonstration Board For 6-Bit Microcontrollers Development Boards & Kits - PIC / DSPIC PICDEM PIC24/dsPIC33 EXPLORER 16 KIT PICDEM PIC24/dsPIC33 Explorer BOARD DEMO PIC24/DSPIC33/PIC32 DM240001, Development Kit, 16 bit, PIC, Explorer 16 Demo Board PIC24, EXPLORER 16, DEV BOARD EXPLORER16DEVELOPMENTBOARD Development kit: Microchip; PIC24,PIC32,dsPIC33 Explorer 16 development board PC hosted mode 9 V, DM240001, Microchip Microchip 16 位 MCU 微控制器开发套件
DM330011
microchip
MPLAB Starter Kit For DSPIC DSCS Audio IC Development Tools MPLAB Starter Kit for dsPIC DSC MPLAB Starter Kit for dsPIC DSC KIT STARTER MPLAB FOR DSPIC DSC DM330011, Development Kit, 16 bit, dsPIC DSPIC, DEBUGGER, MPLAB STARTER KIT MPLABStarterKitforDSPICDSC,DSPICDEMO Development kit: Microchip; dsPIC33FJ256GP506 MPLAB Starter Kit for dsPIC DSCs PC hosted mode dsPIC33FJ256GP506, DM330011, Microchip
DM330013
microchip
Micro-Stick For DSPIC33F And PIC24H Development Board Development Boards & Kits - PIC / DSPIC Microstick PIC24H and dsPIC33F Microstick dsPIC33F and PIC24H MICROSTICK DSPIC33F/PIC24H BOARD MICROSTICK, DSPIC33F, PIC24H MicrostickfordsPIC33FandPIC24H,StarterKits
AC164127-5
microchip
Microcontrollers 16 Bit Picmcus And DSPICDSCS Daughter Cards & OEM Boards Graphics LCD Contlr SSD1926 Board Graphic PICtail Plus SSD1926 BOARD GRAPH LCD CNTLR PICTAIL AC164127-5, Module, LCD, PIC, Graphics LCD Controller PICtail Plus SSD1926 Board ADD-ON BRD, GRAPHICS CTLR, EXP16 + PIC32 LCDCONTROLLERPICTAIL Board with LCD controller; Interface: parallel 18-bit RGB Graphics LCD PICtail Plus SSD1926 Board -, AC164127-5, Microchip Microchip LCD 微控制器开发套件
MA330019-2
microchip

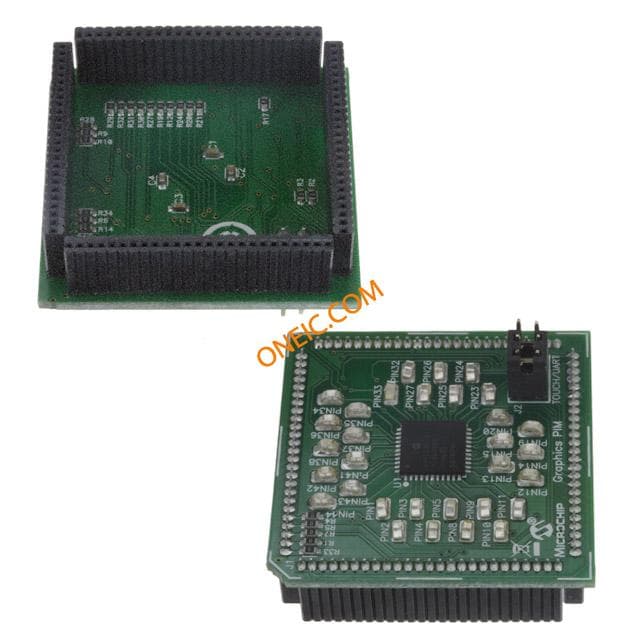

DSPIC33FJ128GP804 GRAPHICS PIM Daughter Cards & OEM Boards dsPIC33FJ128GP804 Graphics Plug-In Mod dsPIC33FJ128GP804 Graphics PIM DAUGHTER BOARD DSPIC33F MA330019-2, Module, 16 bit, dsPIC, Plug-in Module for the dsPIC33FJ128G804 DSC PIM, GFX, DSPIC33FJ128GP804 MA330019-2
