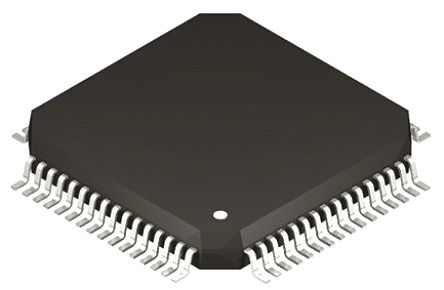

点击放大查看
DSPIC33EP256MC506-I/PT
| 制造商 | Microchip Technology Inc. |
| 描述 | MCU 16-bit dSPIC33 dsPIC RISC 256KB Flash 3.3V 64-Pin TQFP Tray 16 Bit DSC, 256KB Flash, 32KB RAM, 6 IC DSC 16BIT 256KB FLASH 64TQFP Digital Signal Processors & Controllers - DSP, DSC 16B 256KB FL 32KBR 60MHz 64P OpAmps DSC, 16BIT, 256KB, 70MIPS, 3.6V, TQFP-64 IC, MCU, 16BIT, 256KB FLASH, 64TQFP Microchip DSPIC33EP 系列 16 bit dsPIC MCU, 70MHz, 256 kB ROM 闪存, 32 kB RAM, 64针 TQFP封装 |
| 分类 |
商业参数
| 最小起订量 | 3300 | 产品 | DSCs |
| 单位包装 | 160 | 其他名称 | DSPIC33EP256MC506IPT |
| 标准包装数量 | Trays | ||
合规参数
| RoHS | Lead free / RoHS Compliant | SVHC | :No SVHC (16-Dec-2013) |
| 海关税号 | 85423190 | ||
电气参数
| 转速 | 70 MHz | RAM 大小 | 32 KB |
| 内核大小 | 16-Bit | 核心类型 | dsPIC |
| 接口 | CAN/I2C/SPI/UART | 时钟速率 | 60 MHz |
| 存储器容量 | 32 KB | I/O 数量 | 53 |
| 核心电压 | :1.8V | 看门狗定时器 | 1 |
| 数据转换器 | A/D 16x10b/12b | 振荡器类型 | Internal |
| 输出电流 | 10 mA | 供电电压 | 3.3 V |
| 模拟输入/输出 | 4 | 程序存储器大小 | 256 KB |
| 程序存储器类型 | Flash | 供电电压 (Vcc/Vdd) | 3 V ~ 3.6 V |
机械参数
| 重量 | 0 | 包装方式 | Tray |
| 安装样式 | SMD/SMT | 引脚数 | :64 |
| 封装形式 | 64TQFP | 材料表面处理 | :MSL 3 - 168 hours |
| 核心数/总线宽度 | 16 Bit | ||
产品信息
| 系列 | dsPIC33E | 产品特性 | CAN Controller |
| 闪存大小 | :256KB | 片内RAM（通道数×位宽） | 16-chx12-bit |
| 外设 | Brown-out Detect/Reset, DMA, Motor Control PWM, POR, PWM, WDT | 连接性 | CAN, I²C, IrDA, LIN, QEI, SPI, UART/USART |
| 核心处理器 | dsPIC | 定时器数量 | 5 |
| 射频系列/标准 | dSPIC33 | ||
环境参数
| 工作温度 | -40 to 85 °C | ||
