11AA02E48-I/SN
| 制造商 | Microchip Technology Inc. |
| 描述 | EEPROM Serial 2K-bit 256 x 8 2.5V/3.3V/5V 8-Pin SOIC N Tube EEPROM 2K, 256x8, 1.8V MAC Addressable 2K, 256 X 8 1.8V SERIAL EE, IND IC EEPROM 2KBIT 100KHZ 8SOIC 11AA02E48-I/SN, Serial EEPROM Memory 2kbit,, 1.8V, 8-Pin SOIC IC, EEPROM, SERIAL, 2K, 1.8V, 8SOIC 2K,256X81.8VSERIALEE,IND,SOIC-8 Memory; EEPROM; UNI/O; 256x8bit; 1.8÷5.5V; 100kHz; SO8 |
| 分类 |
商业参数
| 最小起订量 | 3300 | 单位包装 | 100 |
| 产品类别 | EEPROM | 标准包装数量 | Bulk |
| 工厂包装数量 | 100 | 标准封装名称 | SOIC |
合规参数
| RoHS | RoHS Compliant | SVHC | :No SVHC (20-Jun-2013) |
| 欧盟RoHS | Compliant | 海关税号 | 85411000 |
| 零件状态 | :11AA02E48 | ESD保护 | Yes |
电气参数
| 转速 | 100kHz | 存储器 | :256 x 8 |
| 频率 | 100kHz | 接口 | Serial |
| 时钟速率 | 0.1 MHz | 存取时间 | 5ms |
| 存储器容量 | 2 Kbit | 存储器类型 | EEPROM |
| VCCB电压 | :5.5V | 额定电压 | 2.5|3.3|5 V |
| 时钟频率 | :100kHz | 数据转换器 | 200(Min) Year |
| 最大频率 | 0.1 MHz | 供电电压 | 2.5 V, 3.3 V, 5 V |
| 最大额定电流 | 5 mA | 最小供电电压 | 5.5 V |
| 平均整流电流 Io | 5 mA | 共模瞬态抗扰度（最小） | Industrial |
机械参数
| 宽度 | 3.9mm | 高度 | 1.25mm |
| 长度 | 4.9mm | 重量 | 0.000175 |
| 包装方式 | Tube | 引脚样式 | Gull-wing |
| 端接方式 | :SMD | 安装类型 | Surface Mount |
| 安装样式 | SMD/SMT | 引脚数 | :8 |
| 封装形式 | 8SOIC N | 冷却的封装 | SOIC N |
| 材料表面处理 | :MSL 1 - Unlimited | 总长度 | 4.9 |
| 包装数量 | SOIC N | 尺寸/外形 | 4.9 x 3.9 x 1.25mm |
| 位数 | 8 | 外壳尺寸-插件 | 1.25(Min) |
| 供应商器件封装 | 8-SOIC N | ||
产品信息
| SPG | 20 | 类型 | memory |
| 密度 | 2 Kb | 产品特性 | EUI-48 |
| 基本单元 | :02 | 制造商全称 | 256x8 |
| 存储器格式 | EEPROMs - Serial (with MAC Address) | 单元数量 | 1 |
| 存储器架构 | 256x8bit | 印刷电路板数量 | 8 |
环境参数
| 插拔次数 | 1000000 | 工作温度 | -40 to 85 °C |
文档与媒体
相关型号
ENC28J60-I/SO
microchip
Ethernet CTLR Single Chip 10Mbps 3.3V 28-Pin SOIC W Tube Ethernet ICs 8 KB RAM MAC&PHY Ethernet Controller ETHERNET CONTROLLER with SPI-In IC ETHERNET CTRLR W/SPI 28SOIC ENC28J60-I/SO, Ethernet Controller 10, 100, 1000Mbit/s Serial-SPI, 3.3V, 28-Pin SOIC ETHERNET CONTROLLER W/SPI, 28SOIC 8KBRAM,MAC&PHY,ETHERNETCONTROLLER,28PINSOIC Ethernet controller; 10Base-T; SPI; SO28; 3.1÷3.6V Ethernet controller SO-28, ENC28J60-I/SO, Microchip 10 Mbps, 100 Mbps, 1000 Mbps 以太网控制器, SPI, 串行 - SPI, 3.3 V, 28针 SOIC封装
25AA02E48-I/SN
microchip
EEPROM Serial-SPI 2K-bit 256 x 8 2.5V/3.3V/5V 8-Pin SOIC N Tube IC EEPROM 2KBIT 10MHZ 8SOIC 25AA02E48-I/SN, Serial EEPROM Memory 2kbit, Serial-SPI, 50ns, 1.8V, 8-Pin SOIC EEPROM 2K, 256x8, 1.8V MAC Addressable IC, EEPROM, SERIAL, 2K, 1.8V, 8SOIC EEPROM,25AA02E48-I/SN Memory; EEPROM; SPI; 256x8bit; 1.8÷5.5V; 10MHz; SO8 EEPROM SPI 256 x 8 Bit SO-8, 25AA02E48-I/SN, Microchip Microchip 串行 EEPROM 存储器, 2kbit, 串行 - SPI接口, 50ns, 1.8 → 5.5 V, 8针 SOIC封装 E²ser.SPI 256x8 SO8 1.8V EUI
DV243003
microchip
MPLAB Starter Kit For Serial Memory Products Memory IC Development Tools MPLAB Starter Kit for Memory Products KIT STARTER FOR SRL MEM PRODUCTS DV243003, Memory Development Kit, EEPROM MPLAB, MEMORY PRODUCTS, STARTER KIT KITSTARTERFORSRLMEMPRODUCTS Development kit: Microchip; Communication with PC: USB; 3.3÷5V MPLAB Starter Kit for Serial EEPROM, DV243003, Microchip
AC243003
microchip
SERIAL EEPROM PIM PICTAIL PACK Serial EEPROM PIM PICtail Pack PACK SERIAL EEPROM PIM PICTAIL Memory IC Development Tools Ser EEPROM PIM PICtail Pack PLUG IN MODULE, SERIAL EEPROM
24AA025E48-I/SN
microchip
EEPROM Serial-I2C 2K-bit 256 x 8 1.8V/2.5V/3.3V/5V 8-Pin SOIC N Tube IC EEPROM 2KBIT 400KHZ 8SOIC 24AA025E48-I/SN, Serial EEPROM Memory 2kbit,, 3.9mm x, 8bit, Serial-I2C 1.7 to 5.5V, 8-Pin SOIC EEPROM 2K 256 X 8 1.8V SERIAL EE, IND IC, EEPROM, 2K, 1.8V, 8SOIC 2K,256X81.8VSERIALEE,IND,8SOIC3.90mm(.150inch)TUBE Memory; EEPROM; I2C; 131kx8bit; 1.7÷5.5V; 400kHz; SO8 E²ser.I²C 256x8 SOP8 1.7V EUI

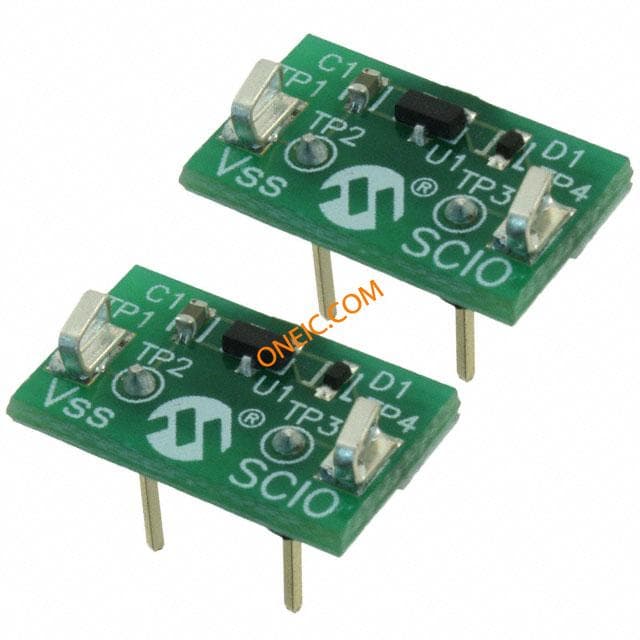

AC243004
