点击放大查看

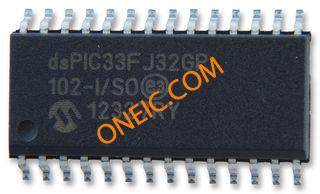

DSPIC33FJ32GP102-I/SO
| 制造商 | Microchip Technology Inc. |
| 描述 | IC DSC 16BIT 32KB FLASH 28SOIC 16-bit General Purpose DSC Family, 1 MCU,dsPIC33,GP,16MIPS,32KB Flash,SOIC28 Digital Signal Processors & Controllers - DSP, DSC 16bit Gen Prp Fam16 MIPS 32KBFLSH 2KBRAM 16-bit General Purpose DSC Family, 16 MIPS, 32KB Flash, 2KB RAM 28 SOIC .300in T IC, DSC, 16BIT, 32KB, 28SOIC DsPIC microcontroller; Memory:32kB; SRAM:2048B; SO28; 3÷3.6V |
| 分类 |
商业参数
| 最小起订量 | 270 | 产品 | DSCs |
| 单位包装 | 27 | 其他名称 | DSPIC33FJ32GP102ISO |
| 标准包装数量 | 27 | ||
合规参数
| RoHS | Lead free / RoHS Compliant | SVHC | :No SVHC (16-Dec-2013) |
| 海关税号 | 85423190 | ||
电气参数
| 转速 | 16 MIPs | 定时器 | 5 x 16 bit |
| 存储器 | 32kB | RAM 大小 | 1K x 16 |
| 内核大小 | 16-Bit | 核心类型 | PIC |
| 接口 | I2C, SPI, UART | 时钟速率 | 7.37 MHz, 32 kHz |
| 存储器容量 | 2 KB | I/O 数量 | 21 |
| 额定电压 | 3.3 V | 时钟频率 | :40MHz |
| 数据转换器 | A/D 8x10b | 最大频率 | 16MHz |
| 振荡器类型 | Internal | 输出电流 | 10 mA |
| 供电电压 | 3 V to 3.6 V | 分辨率（位） | 10bit |
| 程序存储器大小 | 32KB (11K x 24) | 程序存储器类型 | FLASH |
| ADC/DAC 数量 | 8 | 最小供电电压 | 3...3.6V |
| 频率（中心/带宽） | 16bit | 供电电压 (Vcc/Vdd) | 3 V ~ 3.6 V |
机械参数
| 宽度 | 7.5mm | 高度 | 2.35mm |
| 长度 | 17.9mm | 重量 | 0 |
| 包装方式 | Tube | 安装类型 | Surface Mount |
| 安装样式 | SMD/SMT | 引脚数 | :28 |
| 封装形式 | 28-SOIC (0.295", 7.50mm Width) | 冷却的封装 | SOIC |
| 材料表面处理 | :MSL 1 - Unlimited | 包装数量 | 27 |
| 尺寸/外形 | 17.9 x 7.5 x 2.35mm | 位数 | 28 |
| 核心数/总线宽度 | 16bit | ||
产品信息
| SPG | 27 | USB | 0 |
| 类型 | dsPIC33FJ32(GP/MC)101/102/104 | 片内RAM（通道数×位宽） | Yes |
| 外设 | Brown-out Detect/Reset, POR, PWM, WDT | 架构 | Modified Harvard |
| 连接性 | I²C, IrDA, LIN, SPI, UART/USART | 核心处理器 | dsPIC |
| 内置振荡器 | 32kHz, 7,37MHz | 单元数量 | 1 |
| 定时器数量 | 5 | 控制器系列 | :dsPIC33F |
| 射频系列/标准 | dsPIC33F | 宏单元数量 | 2 |
环境参数
| 工作温度 | -40°C ~ 85°C | ||
