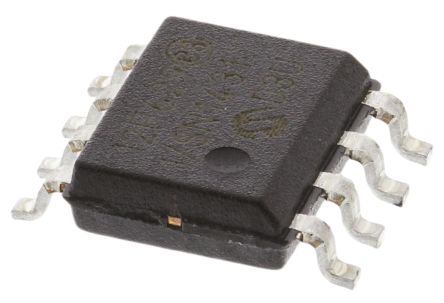

PIC12F629-I/SN
| 制造商 | Microchip Technology Inc. |
| 描述 | . PIC12F629-I/SN - PIC PIC® 12F Microcontroller IC 8-Bit 20MHz 1.75KB (1K x 14) FLASH 8-SOIC from Microchip Technology. from now! |
| 分类 |
商业参数
| 最小起订量 | 1 | 单位包装 | 100 |
| 标准包装数量 | Rail / Tube | 标准封装名称 | SOIC |
合规参数
| RoHS | Lead free / RoHS Compliant | SVHC | :No SVHC (20-Jun-2013) |
| 欧盟RoHS | Compliant | 海关税号 | 85423190 |
| 零件状态 | :12F629 | 抗辐射加固 | No |
| 无铅定义 | RoHS-conform | 认证机构 | No |
电气参数
| 输入端 | 5 | 转速 | 20 MHz |
| 定时器 | 1 x 16 bit, 1 x 8 bit | 存储器 | 1.75KBytes |
| RAM 大小 | 64 byte | 内核大小 | 8-Bit |
| 核心类型 | PIC | 频率 | 20 MHz |
| 接口 | RS-232/USB | 时钟速率 | 20 |
| 比较器数量 | 1 | EEPROM容量 | 128Byte |
| 存储器容量 | 1.75KByte | 存储器类型 | FLASH |
| I/O 数量 | 6 | 电压范围 | 2-5.5V |
| 位数 | 8 | 额定电压 | 2 → 5.5 V |
| 看门狗定时器 | 1 | 时钟频率 | :20MHz |
| 最大频率 | 20MHz | DAC数量 | 0 |
| 振荡器类型 | Internal | 供电电压 | 2.5|3.3|5 V |
| 数字I/O线数 | 6pins | 通道数量 | 0 |
| 模拟输入/输出 | 0 | 非易失性存储器 | 128Bytes |
| 程序存储器大小 | 1.75 KB | 程序存储器类型 | Flash |
| ADC/DAC 数量 | 0channels | 最小输入电压 | 5.5V |
| 8位定时器数量 | 1 | 最小供电电压 | 2 V |
| 频率（中心/带宽） | 16 bit, 8 bit | 最大功耗 | 800 mW |
| 每元件位数 | :10 | 供电电压 (Vcc/Vdd) | 2 V ~ 5.5 V |
机械参数
| 宽度 | 3.9mm | 高度 | 1.5mm |
| 长度 | 4.9mm | 重量 | 0.000001 |
| 包装方式 | TUBE | 引脚样式 | Gull-wing |
| 端接方式 | :SMD | 安装类型 | Surface Mount |
| 引脚数 | :8 | 封装形式 | 8SOIC N |
| 冷却的封装 | SOIC | 材料表面处理 | :MSL 1 - Unlimited |
| 总长度 | 4.9 | 包装数量 | SOIC N |
| 尺寸/外形 | 4.9 x 3.9 x 1.5mm | 位数 | 8 |
| 外壳尺寸-插件 | 1.25(Min) | 供应商器件封装 | 8-SOIC N |
| 核心数/总线宽度 | 8 Bit | ||
产品信息
| SPG | 700 | USB | No |
| 类型 | PIC microcontroller | 匹配码 | PIC12F629-I/SN |
| CAN编号 | 0 | 闪存大小 | :1.75KB |
| SPI编号 | 0 | 外设 | POR, WDT |
| 架构 | RISC | 可编程性 | Yes |
| 核心处理器 | PIC | 内置振荡器 | 4MHz |
| 单元数量 | 1 | 定时器数量 | 2 |
| 控制器系列 | :PIC12 | 标准交期 | 14 weeks |
| 射频系列/标准 | PIC12 | 使用的IC/零件 | :PIC12F629-I/SN |
| DigiKey可编程 | Yes | 印刷电路板数量 | 8 |
| 微控制器特性 | :ISP, WDT | ||
环境参数
| 温度范围 | :Industrial | 测试温度 | -40°C |
| 工作温度 | -40 to 85 °C | 结工作温度 | 85C |
文档与媒体
相关型号
PIC12F629-I/SN
Microchip Technology Inc.
. PIC12F629-I/SN - PIC PIC® 12F Microcontroller IC 8-Bit 20MHz 1.75KB (1K x 14) FLASH 8-SOIC from Microchip Technology. from now!
