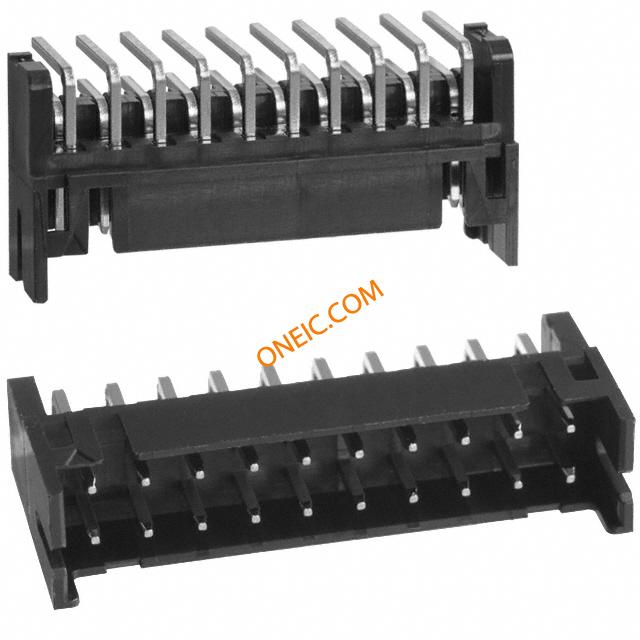

DF11-20DP-2DS(22)

制造商	Hirose Electric Co., Ltd.
描述	CONN HEADER 20POS 2MM RT ANG TIN
分类	连接器解决方案板对板连接器板对板连接器

对参数有疑问？问 AI 助手

商业参数

标准包装数量

242

机械参数

颜色	Black	间距	0.079" (2.00mm)
包装方式	Tube	排间距	0.079" (2.00mm)
端接方式	Solder	触头类型	Male Pin
安装类型	Through Hole, Right Angle	连接器类型	Header, Shrouded
接触镀层	Tin	紧固类型	Detent Lock
排数	2	位数	20
接触长度 - 配合	0.118" (3.00mm)

产品信息

加载位置数

All

文档与媒体

PDF 文档

DF11 Series
