点击放大查看

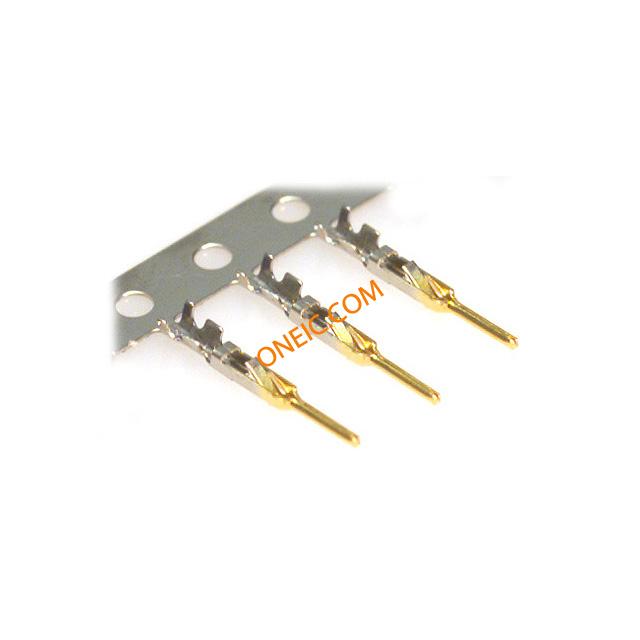

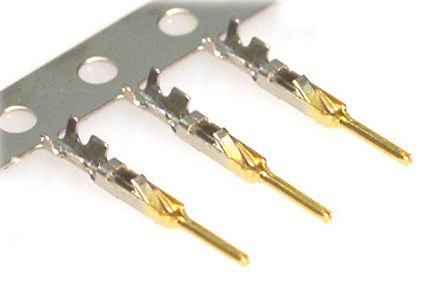

HR30-PC-211

制造商	Hirose Electric Co., Ltd.
描述	Circular Push Pull Connectors MALE CONTACTS REEL CONTACT PIN CRIMP 26-30AWG GOLD Hirose HR30 系列 2A 公压接端接圆形连接器触芯, 使用于塑料连接器, 30 → 26 AWG 线规格
分类	工具与焊接解决方案压接钳、压接机、压力机压接钳

对参数有疑问？问 AI 助手

商业参数

产品类别	Circular Push Pull Connectors	标准包装数量	10,000
工厂包装数量	10000

合规参数

RoHS

Lead free / RoHS Compliant

电气参数

最大额定电流

2 A

机械参数

长度	11mm	包装方式	Tape & Reel (TR)
导线线规	26-30 AWG	安装类型	电缆安装
插针或插孔	Pin	连接器类型	公插
接触镀层	Gold	安装样式	Wire
触头材料	磷铜	端接排数	压接
端接样式	Crimp	第一触头极性	Pin (Male)
触点数	1	接触件端接	Crimp
线规或范围 - mm²	30 → 26 AWG

产品信息

系列	HR30	产品子类型	Contacts
适用产品/相关产品	塑料连接器

环境参数

工作温度

+85°C

文档与媒体

PDF 文档

HR30 Series

PDF 文档

e13000041.pdf

相关型号

HR30-TP

Hirose Connector

Hand Tools EXTRACTION TOOL HR30 TOOL EXTRACTION HR30

¥7.1502

详情

HR30-7JB-10PC

Hirose Connector

Circular Push Pull Connectors 10P JCK SHELL SZ 7 MALE W/OVERMOLD SPCR CONN JACK 10POS MALE CRIMP

¥27.8120

详情

HR30-7J-12PC(71)

Hirose Connector

Circular Push Pull Connectors 12P JACK SHELL SZ 7 MALE CRIMP CONN JACK 12POS MALE CRIMP

¥22.1680

详情

HR30-7R-12PC(71)

Hirose Connector

Circular Push Pull Connectors 12P RECP SHELL SZ 7 MALE CRIMP CONN RECEPT 12POS MALE CRIMP Hirose HR30 Series 12 Way Straight Female Panel Mount Miniature Connector, 2A Hirose HR30系列 12路直向面板安装插头, 2A

¥18.1200

详情

HR30-7JB-12PC

Hirose Connector

Circular Push Pull Connectors 12P JCK SHELL SZ 7 MALE W/OVERMOLD SPCR CONN JACK 12POS MALE CRIMP

¥31.0080

详情

HR30-8PB-12PC

Hirose Connector

Circular Push Pull Connectors 12P PLG SHELL SZ 8 MALE W/OVERMOLD SPCR CONN PLUG 12POS MALE CRIMP

¥28.0160

详情

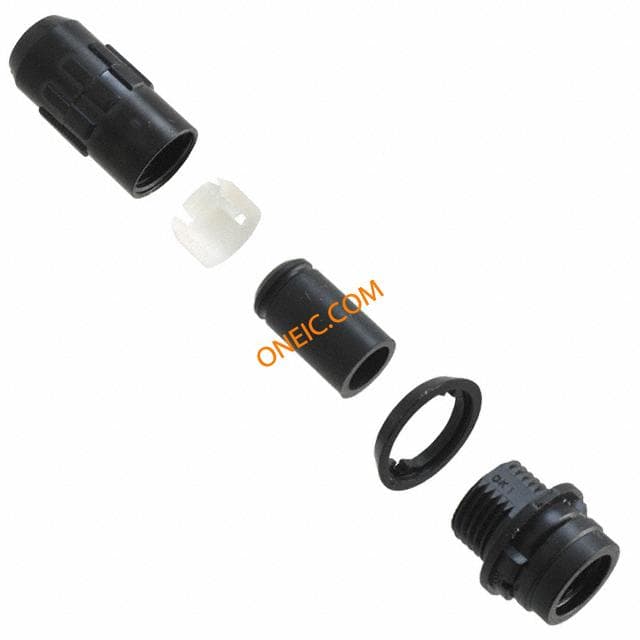

HR30-7J-10PC(71)
