点击放大查看

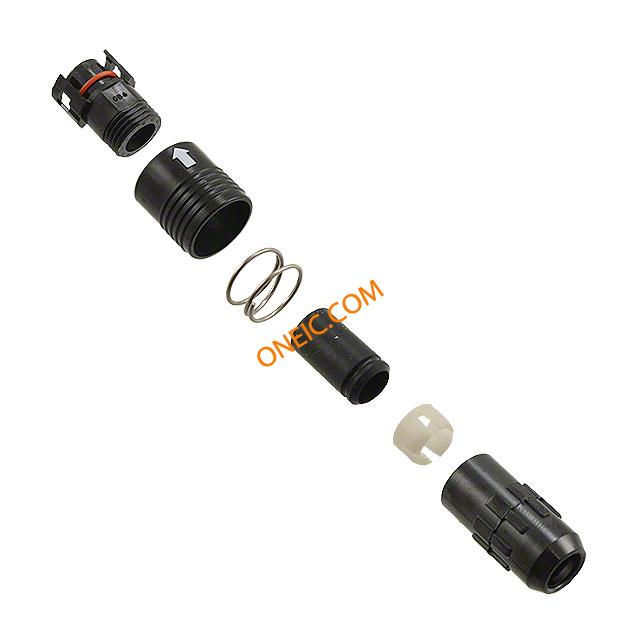

HR30-8P-12PC(71)
| 制造商 | |
| 描述 | Circular Push Pull Connectors 12P PLUG SHELL SZ 8 MALE CRIMP CONN PLUG 12POS MALE CRIMP Hirose HR30 Series 12 Way Straight Male Cable Mount Miniature Connector, 2A Hirose HR30系列 12路 直向 电缆安装 插头, 2A |
| 分类 |
商业参数
| 产品类别 | Circular Push Pull Connectors | 标准包装数量 | 50 |
| 工厂包装数量 | 1 | ||
合规参数
| RoHS | Compliant | ||
电气参数
| 额定电压 | 30 V ac | 最大额定电流 | 2A |
机械参数
| 包装方式 | Tray | 外壳尺寸 | 8 |
| 方向 | Keyed | 外壳样式 | Plug |
| 端接方式 | Crimp | 触头类型 | Crimp |
| 安装类型 | Free Hanging (In-Line) | 外壳镀层 | Gold |
| 连接器类型 | Plug for Male Contacts | 接触镀层 | Gold |
| 紧固类型 | Push-Pull | 安装样式 | Cable |
| 外壳材料（壳体） | Plastic | 触头材料 | Brass, Phosphor Bronze |
| 端接排数 | 压接 | 端接样式 | Crimp |
| 第一触头极性 | Pin (Male) | 触点数 | 12 |
| 位数 | 12 | 外壳尺寸-插件 | 8 |
| 外壳材料及表面处理 | Polyphenylene Sulfide (PPS) | ||
产品信息
| 备注 | Contacts Not Provided | 连接器性别 | Male |
| 系列 | HR30 | 产品特性 | Strain Relief |
| 产品子类型 | Connectors | ||
环境参数
| 防护等级 | IP68 - Dust Tight, Waterproof | 工作温度 | +85°C |
