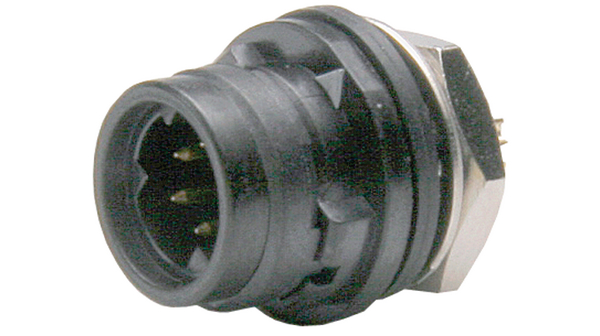

HR30-7R-12P(71)
| 制造商 | |
| 描述 | Circular Push Pull Connectors 12P RECP SHELL SZ 7 MALE TERM SOLDER CONN RECEPT 12POS MALE SOLDER Hirose HR30 Series 12 Way Straight Female Panel Mount Miniature Connector, 2A Conn Miniature Waterproof Plastic M 12 POS Solder ST Panel Mount 12 Terminal 1 Port 12WMALERECEPTACLE Device connector 12-pin Poles=12, HR30-7R-12P(71), Hirose Hirose HR30系列 12路 直向 面板安装 插头, 2A |
| 分类 |
商业参数
| 产品类别 | Circular Push Pull Connectors | 标准包装数量 | 50 |
| 工厂包装数量 | 1 | ||
合规参数
| RoHS | Compliant | 抗辐射加固 | No |
电气参数
| 额定电压 | 30VAC, 42VDC | 极数 | 12 |
| 最大额定电流 | 2A | 额定电流 - 设备输入口 | 2 |
机械参数
| 直径 | 15 mm | 包装方式 | Tray |
| 出线方向 | No | 外壳尺寸 | 7 |
| 方向 | Keyed | 外壳样式 | Receptacle |
| 端接方式 | Solder Cup | 触点形式 | 12Signal |
| 安装类型 | Panel Mount, Bulkhead - Rear Side Nut | 连接器类型 | Receptacle, Male Pins |
| 接触镀层 | Gold | 紧固类型 | Push-Pull |
| 安装样式 | Panel | 外壳材料（壳体） | Plastic |
| 锁定特性 | Push-Pull | 触头材料 | Brass, Phosphor Bronze |
| 壳体材料 | Glass fibre (GF) | 总长度 | 18.6 mm |
| 端接排数 | 焊接 | 端接样式 | Solder |
| 第一触头极性 | Pin (Male) | 触点数 | 12 |
| 位数 | 12 | 外壳尺寸-插件 | 7 |
| 第一连接器极性 | Male | 外壳材料及表面处理 | Polyphenylene Sulfide (PPS) |
产品信息
| 设计类型 | Panel-mount male receptacle | 连接器性别 | Female |
| 系列 | HR30 | 已删除 | Compliant |
| 产品子类型 | Connectors | 射频系列/标准 | HR30 |
| 输出配置 | Panel Mount, Bulkhead - Rear Side Nut | ||
