HR30-7PB-12S

制造商	Hirose Electric Co., Ltd.
描述	Circular Push Pull Connectors 12P PLG SHELL SZ 7 FEM W/OVERMOLD SPCR CONN PLUG 12POS FEMALE SOLDER
分类	连接器解决方案圆形连接器工业圆形连接器（扩展）

对参数有疑问？问 AI 助手

商业参数

产品类别

Circular Push Pull Connectors

标准包装数量

合规参数

RoHS

RoHS Compliant

电气参数

额定电压

30VAC, 42VDC

最大额定电流

机械参数

包装方式	Tray	外壳尺寸	7
方向	Keyed	外壳样式	Plug
端接方式	Solder Cup	安装类型	Free Hanging (In-Line)
连接器类型	Plug, Female Sockets	接触镀层	Gold
紧固类型	Push-Pull	安装样式	Cable
外壳材料（壳体）	Plastic	端接样式	Solder
第一触头极性	Socket (Female)	触点数	12
位数	12	外壳尺寸-插件	7
外壳材料及表面处理	Polyphenylene Sulfide (PPS)

产品信息

系列	HR30	产品特性	Strain Relief
产品子类型	Connectors

环境参数

防护等级

IP67 - Dust Tight, Waterproof

工作温度

-25°C ~ 85°C

文档与媒体

PDF 文档

HR30 Overmold Wiring Procedure

PDF 文档

HR30-7PB-12S Drawing

PDF 文档

HR30%20Overmold.pdf

相关型号

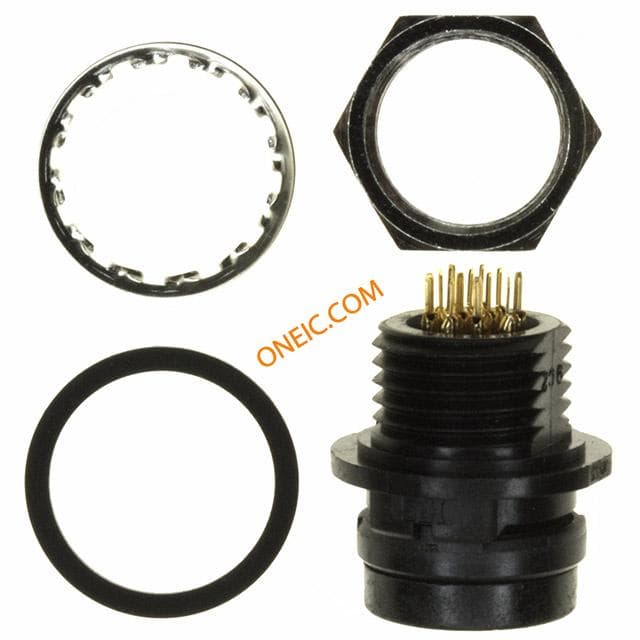

HR30-7R-12PD(71)

Hirose Connector

Circular Push Pull Connectors 12P REC SHELL SZ 7 MALE PCB TH-HOLE CONN RECEPT 12POS MALE T/H Hirose HR30 Series 12 Way Straight Female Through Hole Miniature Connector, 2A Hirose HR30系列 12路直向通孔插头, 2A

¥28.3560

详情

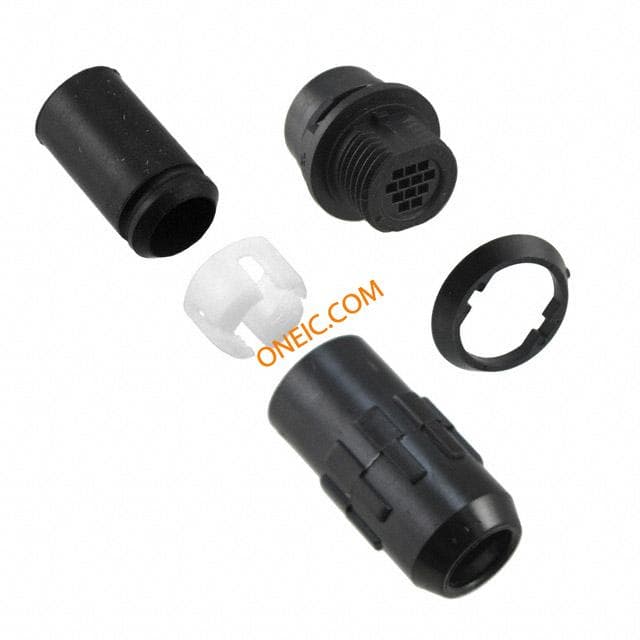

HR30-7J-12PC(71)
