点击放大查看

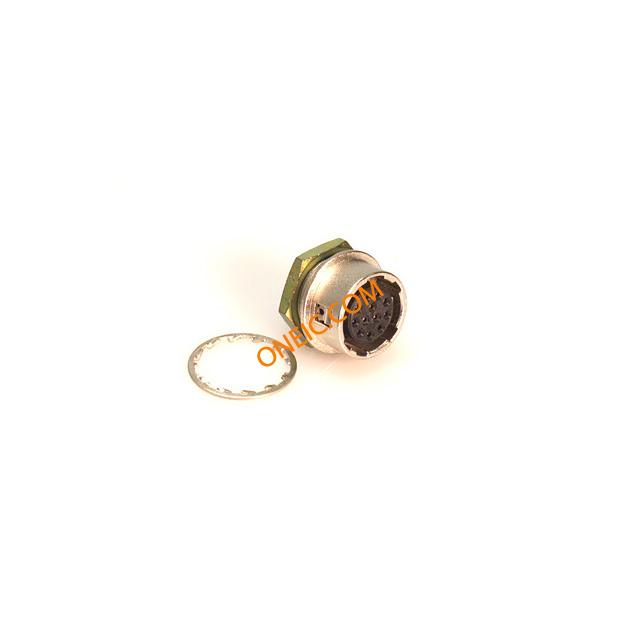

HR10A-10R-12S(71)
| 制造商 | |
| 描述 | Circular Push Pull Connectors 12P RECP SHELL SZ 10 FEMALE SIL TERM SLDR 12 CONT. RECEP. W/SOCKET INSERT 12 Pole Female Straight Panel Mount Industrial & Automation Circular Connector with Female Contacts, Push-Pull Conn Push-Pull F 12 POS Solder Cup ST Panel Mount 12 Terminal 1 Port Device bushing 12-pin Poles=12, HR10A-10R-12S(71), Hirose Hirose HR10 系列 12路 面板安装 直向 连接器 , 母触点, 推挽式接合 |
| 分类 |
商业参数
| 产品类别 | Circular Push Pull Connectors | 标准包装数量 | 20 |
| 工厂包装数量 | 1 | ||
合规参数
| RoHS | Compliant | 抗辐射加固 | No |
电气参数
| 额定电压 | 100VAC | 极数 | 12 |
| 最大额定电流 | 2A | 额定电流 - 设备输入口 | 2 |
机械参数

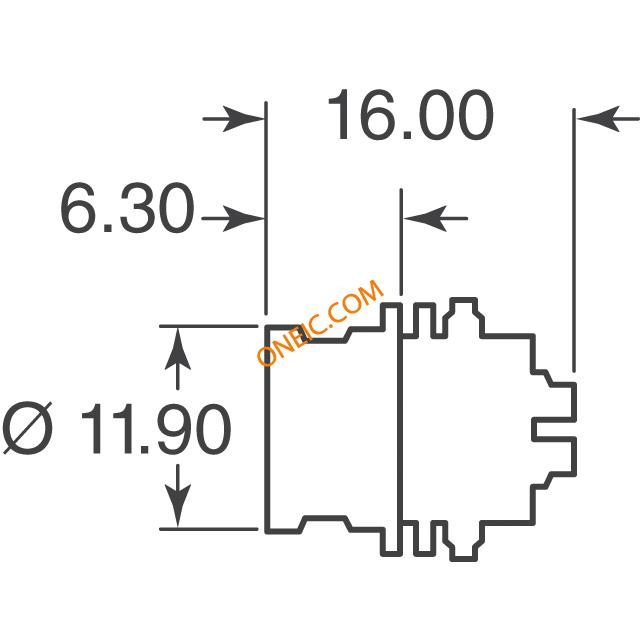

| 外形尺寸(长x宽) | 10mm | 直径 | 14 mm |
| 包装方式 | Bulk | 出线方向 | No |
| 外壳尺寸 | 10 | 方向 | Keyed |
| 外壳样式 | Receptacle | 端接方式 | Solder Cup |
| 触点形式 | 12Signal | 触头类型 | 母座 |
| 安装类型 | Panel Mount, Bulkhead - Rear Side Nut | 外壳镀层 | Nickel |
| 连接器类型 | Receptacle, Female Sockets | 接触镀层 | Silver |
| 紧固类型 | Push-Pull | 安装样式 | Panel |
| 外壳材料（壳体） | Metal | 连接器用途 | Push-Pull |
| 锁定特性 | Push-Pull | 触头材料 | Beryllium, Phosphor Bronze |
| 壳体材料 | Metal | 总长度 | 16 mm |
| 端接排数 | 焊接 | 端接样式 | Solder |
| 第一触头极性 | Female | 触点数 | 12 |
| 位数 | 12 | 外壳尺寸-插件 | 10 |
| 第一连接器极性 | Female | 外壳材料及表面处理 | Brass and Zinc, Nickel Plated |
产品信息
| 类型 | Push-Pull | 设计类型 | Panel-mount female receptacle |
| 连接器性别 | Female | 系列 | HR10 |
| 已删除 | Compliant | 产品子类型 | Connectors |
| 射频系列/标准 | HR10A | 输出配置 | Panel Mount, Bulkhead - Rear Side Nut |
环境参数
| 工作温度 | -25°C ~ 85°C | ||
