HR10A-10P-12PC(73)

制造商	Hirose Electric Co., Ltd.
描述	Circular Push Pull Connectors 12P PLUG SHELL SZ 10 MALE CRIMP CONN HR10A PLUG 12POS MALE Connector,circular,plug,male,size10,12w Hirose HR10 系列 12路电缆安装直向连接器 , 公触点, 推挽式接合
分类	连接器解决方案圆形连接器军用圆形连接器

对参数有疑问？问 AI 助手

商业参数

产品类别	Circular Push Pull Connectors	标准包装数量	20
工厂包装数量	1

合规参数

RoHS

RoHS Compliant By Exemption

电气参数

额定电压	100 V ac	连接器阻抗	微型
最大额定电流	2 A	连接器类型 - 电压输入	Micro

机械参数

外形尺寸(长x宽)	10mm	包装方式	Bulk
外壳尺寸	10	方向	Keyed
外壳样式	Plug	端接方式	Crimp
触点尺寸	1.0mm	触头类型	Crimp
安装类型	Free Hanging (In-Line)	外壳镀层	Nickel
连接器类型	Plug for Male Contacts	接触镀层	Gold
紧固类型	Push-Pull	安装样式	Cable
连接器用途	Push-Pull	触头材料	Brass, Bronze
壳体材料	Brass, Zinc Alloy	端接排数	压接
端接样式	Crimp	第一触头极性	Pin (Male)
触点数	12	位数	12
外壳尺寸-插件	10	外壳材料及表面处理	Brass and Zinc, Nickel Plated

产品信息

备注	Contacts Not Provided	连接器性别	Male
系列	HR10A	产品子类型	Connectors

环境参数

工作温度

+85°C

文档与媒体

PDF 文档

HR10 Series

PDF 文档

e11000216.pdf

相关型号

HR10A-10J-12SC

Hirose Connector

Circular Push Pull Connectors Obsolete CONN HR10A JACK 12POS FEMALE

详情

HR10A-10R-12S(72)

Hirose Connector

Circular Push Pull Connectors REC 12P FEM SLD GOLD CONN RECEPT 12POS FMALE SLD GOLD

¥67.2649

详情

HR10-PC-111

Hirose Connector

Circular Push Pull Connectors MALE CONTACTS GOLD LOOSE CONTACT PIN CRIMP 26-30AWG GOLD HR10-PC-111

¥0.5440

详情

HR10-PC-112

Hirose Connector

Circular Push Pull Connectors MALE CONTACTS SILVER LOOSE CONTACT PIN CRIMP 26-30AWG SILVR HR10 Series Size 1mm 2A Male Circular Connector Contact For Use With HR10 Series, Crimp,Wire size 30 to 26AWG Hirose HR10 系列 2A 压接端接圆形连接器触芯, 使用于HR10 系列, 30 → 26 AWG 线规格

¥0.4420

详情

暂无图片

HR10-PC-211

Hirose Connector

Circular Push Pull Connectors MALE CONTACTS GOLD REEL CONTACT CRIMP MALE GOLD AW26 REE CONTACT PIN CRIMP 26-30AWG GOLD

¥1.3600

详情

HR10A-10J-12S(73)

Hirose Connector

Circular Push Pull Connectors 12P JACK SHELL SZ 10 FEMALE SIL TERM SLDR 12 CONT. JACK/SOCKET INSERT Connector,circular,jack,female,sz10,12w Conn Push-Pull F 12 POS Solder Cup ST Cable Mount 12 Terminal 1 Port Hirose HR10 系列 12路电缆安装直向连接器 , 母触点, 推挽式接合

¥142.1915

详情

HR10A-10R-12SB(71)

Hirose Connector

Circular Push Pull Connectors 12P RECP SHELL SZ 10 F/M SIL TERM PCB DIP CONN RECEPT 12POS FEMALE DIP Hirose HR10 系列 12路面板安装、通孔直向连接器 , 母触点, 推挽式接合

¥72.2030

详情

HR10A-10R-12SD(72)

Hirose Connector

Circular Push Pull Connectors REC 12P FEM DIP GOLD CONN RECEPT 12POS FMALE DIP GOLD

¥195.3640

详情

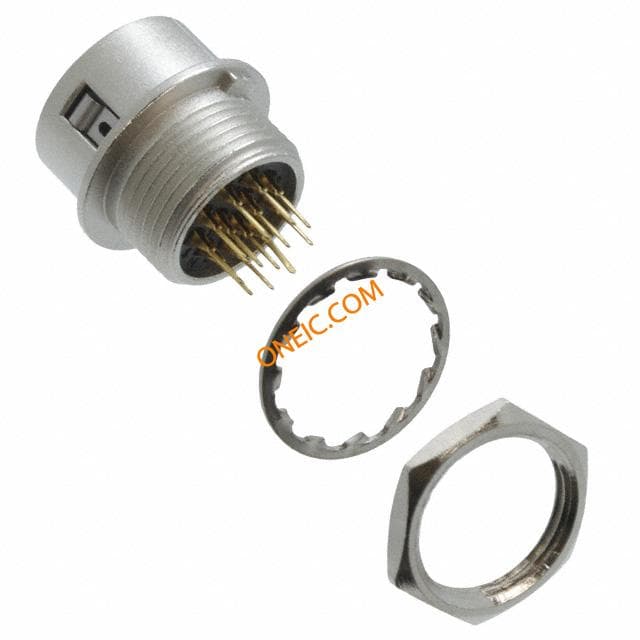

HR10A-10R-12SB(72)
