点击放大查看

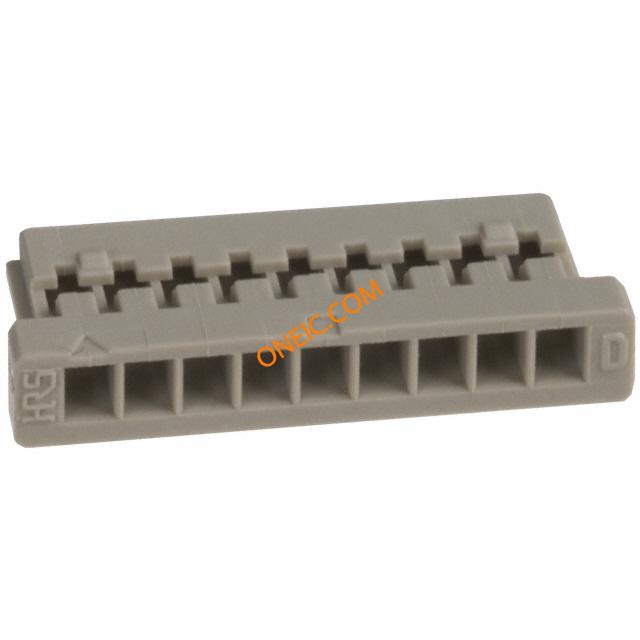

DF14-9S-1.25C

制造商	Hirose Electric Co., Ltd.
描述	ヘッダ & ワイヤハウジング 1.25MM SNG ROW SKT 9P HOUSING CONN SOCKET 9POS 1.25MM CRIMP Connector, PCB-Board-to-Wire, 1.25mm Headers & Wire Housings 1.25MM SNG ROW SKT 9P HOUSING
分类	连接器解决方案板对板连接器板对板连接器

对参数有疑问？问 AI 助手

商业参数

产品类别	Headers & Wire Housings	标准包装数量	100
工厂包装数量	100

合规参数

RoHS

Not Applicable

电气参数

额定电压	150 V	最大额定电流	1 A
绝缘电阻	500 MOhms

机械参数

颜色	Beige	深度	5.8mm
间距	0.049" (1.25mm)	宽度	2.3mm
长度	13.2mm	包装方式	Bulk
触头类型	Female Socket	安装类型	Free Hanging (In-Line)
连接器类型	Receptacle	排数	1
壳体材料	PA	第一触头极性	Socket (Female)
触点数	9	接触件端接	Crimp
位数	9

产品信息

备注	Contacts Not Provided	类型	Socket Housing
连接器性别	Female	系列	DF14
产品子类型	Wire Housings	适用产品/相关产品	Super Low Profile Crimping Connector

环境参数

工作温度

- 35 C to + 85 C

文档与媒体

PDF 文档

DF14 Series

PDF 文档

en_DF14_20130411.pdf
