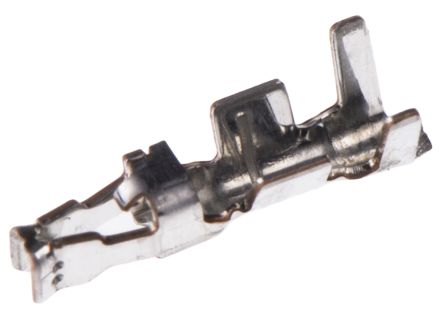

点击放大查看
DF14-2628SCF
| 制造商 | |
| 描述 | Headers & Wire Housings 26-28 AWG SOCKET TIN CONTACTS REEL CONN TERM 26-28AWG CRIMP TIN Crimp contact AWG 26-28 DF14-2628SCF Contact; female; 26÷28AWG; DF14; tinned; crimped, on cable Hirose DF14 系列 母 压接接线端子, 压接, 镀锡触点 |
| 分类 |
商业参数
| 产品类别 | Headers & Wire Housings | 标准包装数量 | 10,000 |
| 工厂包装数量 | 10000 | ||
合规参数
| RoHS | Lead free / RoHS Compliant | ||
电气参数
| 额定电压 | 150 V | 接触电阻 | 30mΩ |
| 最大额定电流 | 1 A | ||
机械参数
| 重量 | 1 g | 包装方式 | Tape & Reel (TR) |
| 导线线规 | 26-28 AWG | 端接方式 | Crimp |
| 安装类型 | crimped, on cable | 插针或插孔 | Socket |
| 连接器类型 | female | 接触镀层 | Tin |
| 触头材料 | Phosphor Copper | 端接排数 | 压接 |
| 连接器 - 电缆 | contact | 端接样式 | Crimp |
| 第一触头极性 | Socket (Female) | 接触件端接 | Crimp |
| 线规或范围 - AWG | 26AWG | 触点材料 - 镀层 | tinned |
产品信息
| 连接器性别 | Female | 系列 | DF14 |
| 产品子类型 | Contacts | 适配器系列 | DF14 |
| 单元数量 | 1 | 适用产品/相关产品 | DF14 系列超薄型压接连接器 |
环境参数
| 工作温度 | +85°C | ||
文档与媒体
