点击放大查看

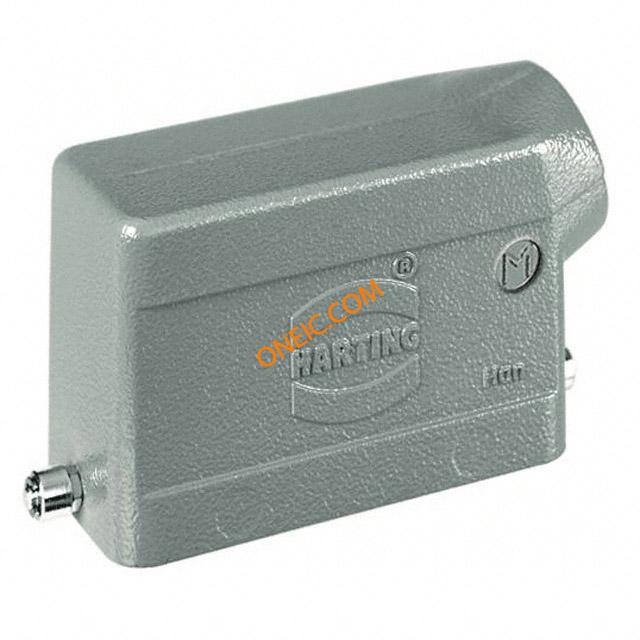

19300241541

制造商	HARTING Technology Group
描述	HAN B HOOD SIDE M25 Heavy Duty Power Connectors HAN 24B M25 SIDE METAL HOOD HanBHoodSideEntryM25 Han B Hoods: Han B Hood Side Entry M25 Harting Han B 系列侧入电源连接器
分类	连接器解决方案重载连接器重载圆形连接器

对参数有疑问？问 AI 助手

商业参数

其他名称	1195-3142	零件号别名	019 019-30-024-1541 024 1541 30
产品类别	Heavy Duty Power Connectors	标准包装数量	1
工厂包装数量	1

合规参数

RoHS

RoHS Compliant

机械参数

尺寸	24B	包装方式	Bulk
方向	侧入	螺纹尺寸	M25
外壳颜色	Gray	连接器类型	Hood
外壳涂层	Powder Coated	安装样式	Side
壳体材料	Aluminum, Die Cast	尺寸/外形	4.724" L x 1.693" W x 2.461" H (120.00mm x 43.00mm x 62.50mm)
端接样式	Cable

产品信息

类型	CONNECTORS	样式	Side Entry
系列	Han EEE	产品子类型	Hoods
锁定位置	Side Clip on Base Bottom	基础产品编号	1930

环境参数

防护等级

IP65 - Dust Tight, Water Resistant

工作温度

-40°C ~ 125°C
