点击放大查看

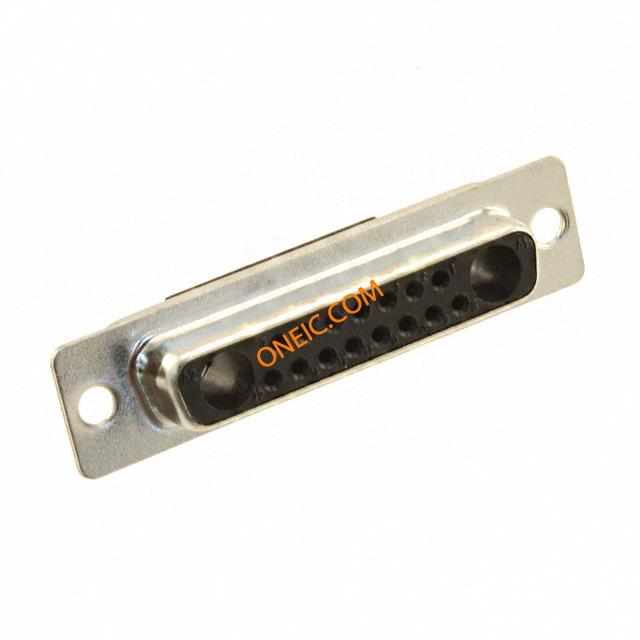

09693020172
| 制造商 | |
| 描述 | D-Sub Mixed Contact Connectors DSUB FEM 17W2 CRIMP INSULATOR DSUB FE 17W2 CRIMP INSULATOR D-Sub Mixed Connector 17W2 F D-SubMixedConnector17W2F Harting 15（信号），2（功率/同轴）路 直 混合压接 D-Sub 连接器, 插座 |
| 分类 |
商业参数
| 零件号别名 | 0172 09 09-69-302-0172 302 69 | 产品类别 | D-Sub Mixed Contact Connectors |
| 标准包装数量 | 1 | 工厂包装数量 | 50 |
合规参数
| RoHS | RoHS Compliant | ||
电气参数
| 最大额定电流 | 5A | ||
机械参数
| 深度 | 16.9mm | 宽度 | 12.5mm |
| 长度 | 53mm | 包装方式 | Bulk |
| 方向 | 直 | 触头类型 | Coax or Power and Signal |
| 安装类型 | Straight | 外壳镀层 | Tin |
| 连接器类型 | Receptacle for Female Contacts | 法兰特征 | Housing/Shell (Unthreaded) |
| 安装样式 | Wire | 排数 | 2 |
| 连接器样式 | D-Sub, Combo | 壳体材料 | Steel |
| 尺寸/外形 | 53 x 12.5 x 16.9mm | 端接样式 | Crimp |
| 触点数 | 17 | 介电材料 | Polyester, Glass Filled |
| 位数 | 17 (15 + 2 Coax or Power) | 外壳材料及表面处理 | Steel, Tin Plated |
| 典型触点布局 | 17W2 | 外壳尺寸，连接器布局 | 3 (DB, B) - 17W2 |
产品信息
| 备注 | Contacts Not Provided | 连接器性别 | Female |
环境参数
| 机械寿命 | New At Mouser | 工作温度 | -55°C ~ 125°C |
相关型号
09691817421
HARTING
D-Sub Contacts FEMALE CONTACT 20 AMPS SOLDER DSUB MIXED FE 20 A S POWER CONT D-Sub High current solder 20A F 12-14AWG D-SubHighcurrentsolder20AF12-14AWG Harting 母 焊接 功率 D-Sub 连接器电源触点, 镀金 触点, 14 → 12 AWG
09691817140
HARTING
D-Sub Contacts FML COAX CNT 50 OHM CRIMP/SLDR RG174 D SUB MIXED FE S CRIMP COAX 50 O Harting D-Sub Mixed系列 母 压接，焊接 同轴 D-Sub 连接器同轴触点, 镀金 触点 0969
09691817141
HARTING
D-Sub Contacts FML COAX CNT 50 OHM CRIMP/SLDR RG178 D SUB MIXED FE S CRIMP COAX 50 O
09691827310
HARTING
D-Sub Contacts D SUB M FE SIG CR CNTCT PL3 AWG 20-24 DSUB M FE SIG CR CONT AWG20-24 D-Sub Mixed Crimp contacts AWG 24-20 F D-SubMixedCrimpcontactsAWG24-20F

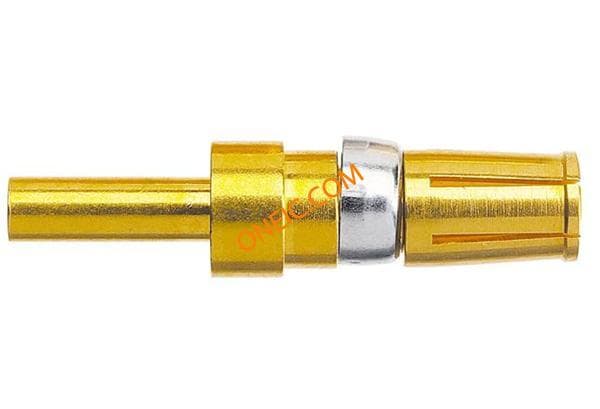

09691825421
