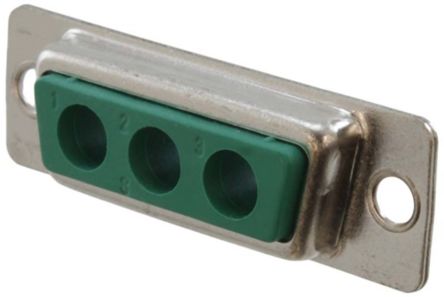

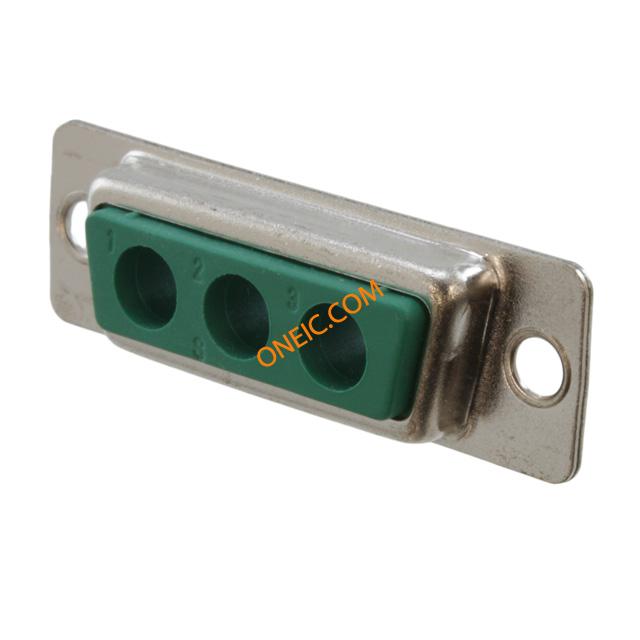

09692000033
| 制造商 | |
| 描述 | D-Sub Mixed Contact Connectors 3W3 FEMALE SHELL 3 SPECIAL CNTS Conn Housing F 3 POS 6.86mm ST Panel Mount DSUB FE 3W3 SHELL W/O CONTACTS Harting D-Sub Mixed 系列 电缆安装 3 路 焊接 D-sub 连接器 插座 |
| 分类 |
商业参数
| 零件号别名 | 0033 09 09-69-200-0033 200 69 | 产品类别 | D-Sub Mixed Contact Connectors |
| 标准包装数量 | 1 | 工厂包装数量 | 50 |
合规参数
| RoHS | RoHS Compliant | 欧盟RoHS | Compliant |
机械参数
| 深度 | 12.6 | 间距 | 6.86 mm |
| 高度 | 12.5 | 长度 | 39.1mm |
| 包装方式 | Bulk | 外壳尺寸 | A |
| 方向 | 直 | 触头类型 | Coax or Power |
| 安装类型 | Straight | 外壳镀层 | Tin |
| 连接器类型 | Receptacle for Female Contacts | 法兰特征 | Housing/Shell (Unthreaded) |
| 排数 | 1 | 连接器样式 | D-Sub, Combo |
| 壳体材料 | Polyester | 总长度 | 39.1 |
| 触点数 | 3 | 介电材料 | Polyester, Glass Filled |
| 位数 | 3 (Coax or Power) | 外壳材料及表面处理 | Steel, Tin Plated |
| 典型触点布局 | 3W3 | 外壳尺寸，连接器布局 | 2 (DA, A) - 3W3 |
产品信息
| 备注 | Contacts Not Provided | 类型 | Housing |
| 连接器性别 | F | 系列 | D-Sub Mixed |
环境参数
| 工作温度 | -55°C ~ 125°C | ||
文档与媒体
相关型号
09691817421
HARTING
D-Sub Contacts FEMALE CONTACT 20 AMPS SOLDER DSUB MIXED FE 20 A S POWER CONT D-Sub High current solder 20A F 12-14AWG D-SubHighcurrentsolder20AF12-14AWG Harting 母 焊接 功率 D-Sub 连接器电源触点, 镀金 触点, 14 → 12 AWG
09691817140
HARTING
D-Sub Contacts FML COAX CNT 50 OHM CRIMP/SLDR RG174 D SUB MIXED FE S CRIMP COAX 50 O Harting D-Sub Mixed系列 母 压接，焊接 同轴 D-Sub 连接器同轴触点, 镀金 触点 0969
09691817141
HARTING
D-Sub Contacts FML COAX CNT 50 OHM CRIMP/SLDR RG178 D SUB MIXED FE S CRIMP COAX 50 O
09691827421
HARTING
D-Sub Mixed Contact Connectors D SUB MIXED FE 20A S POWER CONTACT PL3 DSUB MIXED FE 20A POWER CONTACT D-Sub High current Crimp 20A F 12-14AWG D-SubHighcurrentCrimp20AF12-14AWG Harting 母 压接 功率 D-Sub 连接器电源触点, 14 → 12 AWG
09691825421
HARTING
D-Sub Contacts DSUB FE STR CRIMP CONTACT 20A POWER DSUB FE STR CRIMP CONT 20A POWER D-SUB crimp contact 20A D-SUBcrimpcontact20A Harting 母 压接 功率 D-Sub 连接器电源触点, 镀金 触点, 14 → 12 AWG
09692100033
HARTING
D-Sub Mixed Contact Connectors DSUB MA 3W3 SHELL W/O CONTACTS Conn Housing M 3 POS 6.86mm ST Panel Mount DSUB MA 3W3 SHELL W/O CONTACTS Harting D-Sub Mixed 系列 电缆安装 3 路 焊接 D-sub 连接器 插头
09691827230
HARTING
D-Sub Contacts DSUB MIXED FEM CRIMP COAX 75 OHMS-PL3 D SUB MIXED FE CRIMP COAX 75 OHM
09691815420
HARTING
D-Sub Contacts DSUB MIXED FEM 10A S4 SOLD.PWR CONT D-Sub Mixed Contact Connectors DSUB MIXED FEM 10A S4 SOLD.PWR CONT DSUB MIXED FE 10A SLD PWR CONT
09691825823
HARTING
D-Sub Mixed Contact Connectors DSUB MIXED FEM 40A SHORT CRIMP PWR CONT D SUB MIXED FE 40 A SHORT CRIMP
09691825821
HARTING
D-Sub Mixed Contact Connectors DSUB MIXED FEM 20A SHORT CRIMP PWR CONT D SUB MIXED FE 20 A SHORT CRIMP
09695812550
HARTING
D-Sub Contacts DSUB FEM RIGHT ANG HI VOLTAGE CONTACT DSUB FE RIGHT ANG HIGH VOLTAGE C
09691827423
HARTING
D-Sub Contacts D SUB MIXED FEM 40A POWER CONTACT PL3 D SUB MIXED FE 40 A C POWER CONT D-Sub High current Crimp 40A F 8-10AWG D-SubHighcurrentCrimp40AF8-10AWG Contact; female; soldering; 40A Harting 母 压接 功率 D-Sub 连接器电源触点, 镀金 触点, 10 → 8 AWG
09691815821
HARTING
D-Sub Mixed Contact Connectors DSUB MIXED FEM 20A SHORT S4 SOLDER PWR D SUB MIXED FE 20A_SHORT_S4 SOLD
09691817143
HARTING
D-Sub Mixed Contact Connectors DSUB MIXED FEM SOLDR CRIMP COAX 50 OHMS D SUB MIXED FE SOLDER CRIMP COAX
09691827823
HARTING
D-Sub Mixed Contact Connectors DSUB MIXED FEM 40A SHORT CRIMP PWR CONT D SUB MIXED FE 40 A SHORT CRIMP
09691827140
HARTING
D-Sub Contacts DSUB MIXED FEM CR CRIMP COAX 50OHMS D SUB MIXED FE CR CRIMP COAX 50
09691817821
HARTING
D-Sub Mixed Contact Connectors DSUB MIXED ML 20A PL3 SOLDER POWER CNT D SUB MIXED MA 20A PL3 SOLDER PO
09691817233
HARTING
D-Sub Mixed Contact Connectors DSUB MIXED FEM SOLDR CRIMP COAX 75 OHMS D SUB MIXED FE SOLDER CRIMP COAX
09691815140
HARTING
D-Sub Contacts DSUB FEM STR 50OHMS SOLDER CONTACT COAX DSUB FE STR SLD CONT 50 OHM COAX
09691827233
HARTING
D-Sub Mixed Contact Connectors DSUB MIXED FEM CRIMP CRIMP COAX 75 OHMS D SUB MIXED FE CRIMP/CRIMP COAX
