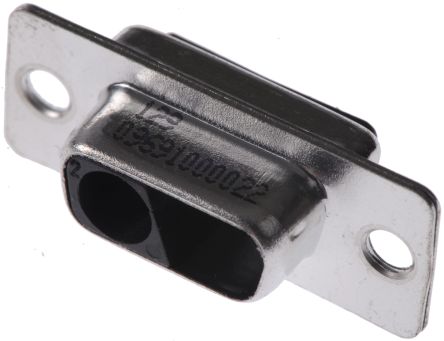

09691000022
| 制造商 | |
| 描述 | D-Sub Mixed Contact Connectors D SUB FE 2W2C WITHOUT CON DSUB FE 2W2C WITHOUT CONTACT D-Sub Mixed Connector 2W2C F D-SubMixedConnector2W2CF Special D-Sub; for special contacts; PIN:2; female; for cable Harting 电缆安装 2（功率/同轴） 路 混合焊接 D-sub 连接器 插座 |
| 分类 |
商业参数
| 零件号别名 | 0022 09 09-69-100-0022 100 69 | 标准包装数量 | 1 |
| 工厂包装数量 | 100 | ||
合规参数
| RoHS | RoHS Compliant | ||
电气参数
| 连接器类型 - 电压输入 | w/o terminals | ||
机械参数
| 深度 | 12.6mm | 间距 | 6.86mm |
| 宽度 | 12.5mm | 高度 | 12.5 mm |
| 长度 | 30.8mm | 重量 | 0.01 g |
| 包装方式 | Bulk | 绝缘类型 | Insulated |
| 外壳尺寸 | E | 方向 | 直 |
| 触头类型 | Coax or Power | 安装类型 | Straight |
| 外壳镀层 | Tin | 连接器类型 | Receptacle for Female Contacts |
| 法兰特征 | Housing/Shell (Unthreaded) | 安装样式 | Panel |
| 排数 | 1 | 外壳材料（壳体） | Metal |
| 连接器样式 | D-Sub, Combo | 壳体材料 | Steel |
| 尺寸/外形 | 30.8 x 12.5 x 12.6mm | 触点数 | 2 |
| 介电材料 | Polyester, Glass Filled | 绝缘材料 - 类型 | Polybutylene Terephthalate |
| 位数 | 2 (Coax or Power) | 外壳材料及表面处理 | Steel, Tin Plated |
| 典型触点布局 | 2W2 | 外壳尺寸，连接器布局 | 1 (DE, E) - 2V2, 2W2C |
| 第一连接器安装特征 | 2/2 | ||
产品信息
| 备注 | Contacts Not Provided | 连接器性别 | Female |
| 系列 | 9 | 单元数量 | 1 |
环境参数
| 工作温度 | -55°C ~ 125°C | ||
