点击放大查看

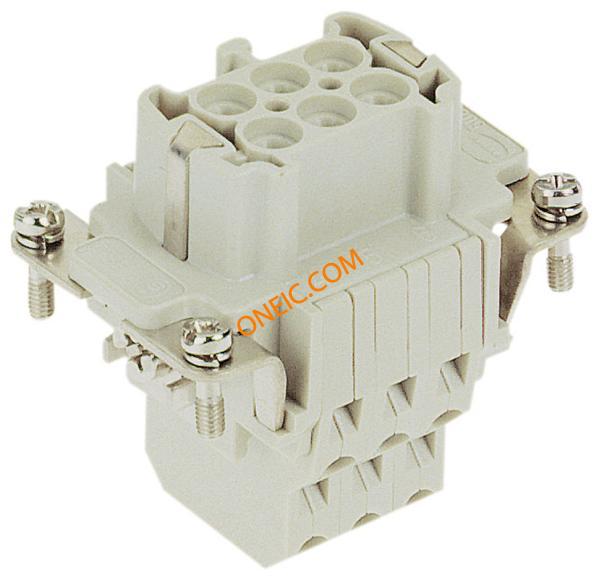

09330062772

制造商	HARTING Technology Group
描述	Heavy Duty Power Connectors FEMALE INSERT HAN 6ESS CAGE CLMP HAN ESS 06 POS. F INSERT DOUBLE INSERT FEMALE 6POS+1GND PUSH IN HanESS06Pos.FInsertDoubleCageCla Connector: HAN; female; Han ESS; PIN:6; 6+PE; size 6B; spring clamp Han E Female Insert: Han ESS 06 Position F Insert Double Cage Cla Harting HAN ESS 系列 2行 6针插座电源连接器
分类	连接器解决方案重载连接器重载连接器

对参数有疑问？问 AI 助手

商业参数

零件号别名	006 09 09-33-006-2772 2772 33	产品类别	Heavy Duty Power Connectors
标准包装数量	1	工厂包装数量	10

合规参数

RoHS

RoHS Compliant

材料阻燃等级

UL94 V-0

电气参数

额定电压

600V

最大额定电流

16A

机械参数

尺寸	6B	颜色	Gray
重量	0.05 kg	包装方式	Bulk
安装类型	spring clamp	连接器类型	Insert
接触镀层	Silver	排数	2
封装形式	size 6B	触头材料	Copper Alloy
壳体材料	Polycarbonate (PC)	包装数量	1
端接排数	笼式弹簧夹	端接样式	Push In
触点数	6	位数	6+Ground
镀层厚度（通用）	3µm	绝缘材料 - 材质	polycarbonate
线规或范围 - mm²	0.14...2.5mm2	触点材料 - 镀层	silver plated
第一连接器安装特征	6+PE

产品信息

SPG	1	类型	CONNECTORS
连接器性别	Female	系列	HAN ESS
产品子类型	Accessories	适配器系列	Han ESS
单元数量	1	基础产品编号	0933

环境参数

机械寿命

500cycles

工作温度

-40°C ~ 125°C
