19300061255

制造商	HARTING Technology Group

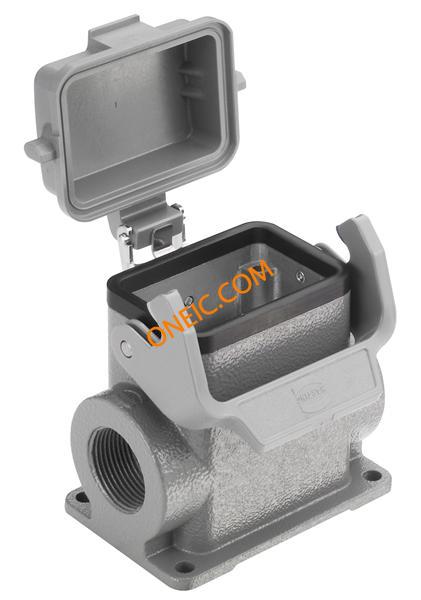

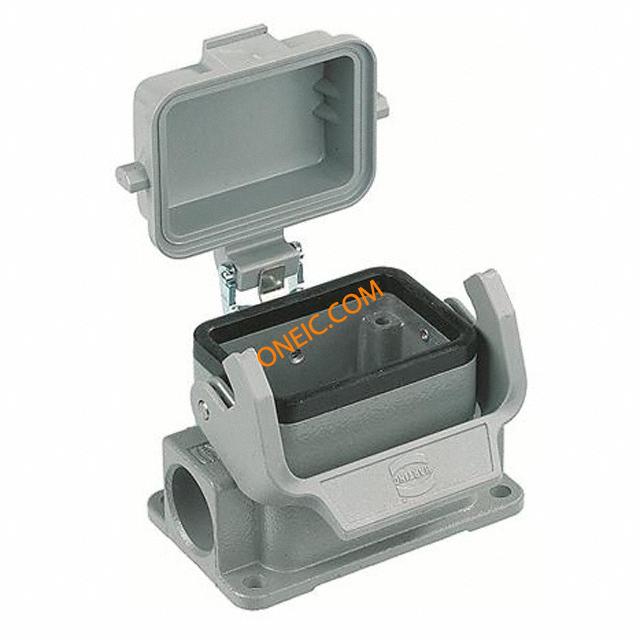

描述	HAN B BASE SURFACE LC 1 LEVER Heavy Duty Power Connectors 6B SURFACE MOUNT 1 LEVER METAL Han6B-asg1-LB-K-M20 Enclosure: for Han connectors; Han; size 6B; with lock; M20; IP65 Han B Housings: Han B Base Surface LC 1 Lever Harting Han B 系列电源连接器 , 表面安装
分类	连接器解决方案重载连接器重载圆形连接器

对参数有疑问？问 AI 助手

商业参数

其他名称	1195-3091	零件号别名	006 019 019-30-006-1255 1255 30
产品类别	Heavy Duty Power Connectors	标准包装数量	1
工厂包装数量	1

合规参数

RoHS

RoHS Compliant

机械参数

尺寸	6B	重量	0.21 kg
包装方式	Bulk	螺纹尺寸	M20
外壳颜色	Gray	安装类型	flange (4 holes), on panel, on cable
衬套螺纹	M20	电缆端类型	Side
连接器类型	Base - Box Mount with Cover	外壳涂层	Powder Coated
安装样式	Side	封装形式	size 6B
锁定特性	with lock	壳体材料	Aluminum, Die Cast
包装数量	3	尺寸/外形	3.228" L x 2.047" W x 2.028" H (82.00mm x 52.00mm x 51.50mm)
供应商器件封装	for Han connectors	外壳与棱镜材料	aluminium alloy

产品信息

SPG	3	类型	CONNECTORS
样式	Side Entry	系列	Han B
产品子类型	Hoods	锁定位置	Side Clip on Base Bottom
适配器系列	Han	单元数量	1
基础产品编号	1930	加载位置数	1

环境参数

防护等级

IP65 - Dust Tight, Water Resistant

工作温度

-40°C ~ 125°C
