点击放大查看

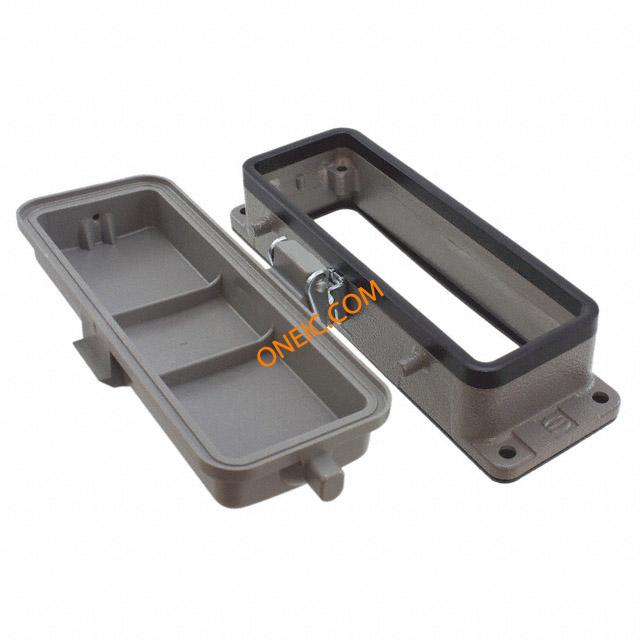

09300240302

制造商	HARTING Technology Group
描述	HAN B BASE PANEL 4 PEGS Heavy Duty Power Connectors HAN 24B BULKHEAD METAL 2 LEVERS Lo b/hd mount housing+cover for 2 lever HANBBASEPANEL4PEGSTHERMOPLASTICCO Han B Housings: Han B Base Panel 4 Pegs Thermoplastic Co Harting Han B 系列电源连接器外壳
分类	连接器解决方案重载连接器重载连接器

对参数有疑问？问 AI 助手

商业参数

零件号别名	024 0302 09 09-30-024-0302 30	产品类别	Heavy Duty Power Connectors
标准包装数量	1	工厂包装数量	10

合规参数

RoHS

Compliant

机械参数

尺寸	24B	包装方式	Bulk
外壳颜色	Gray	连接器类型	Base - Panel Mount with Cover
外壳涂层	Powder Coated	安装样式	Straight
插入力	Female	壳体材料	Aluminum, Die Cast
尺寸/外形	5.512" L x 1.709" W x 1.138" H (140.00mm x 43.40mm x 28.90mm)	端接样式	Cable
触点数	1

产品信息

类型	CONNECTORS	样式	Bottom Entry
系列	Han B	CAD图纸	3D CAD Model
产品子类型	Housings	锁定位置	Locking Clip on Hood

环境参数

防护等级

IP65 - Dust Tight, Water Resistant

工作温度

-40°C ~ 125°C
