点击放大查看

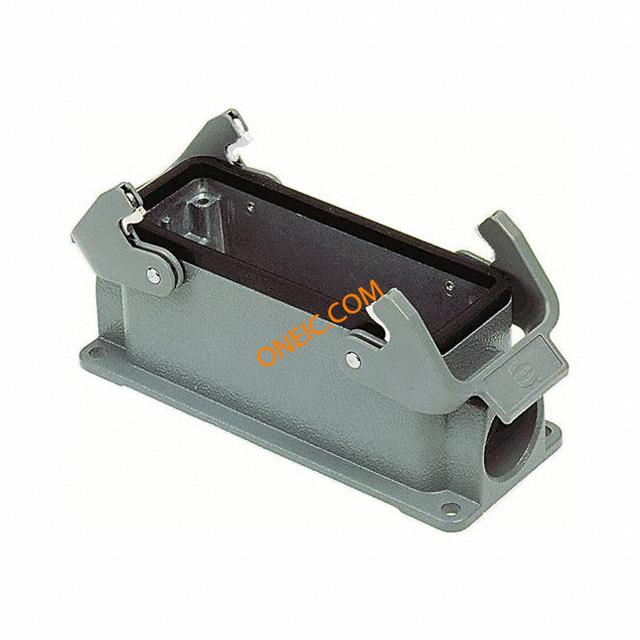

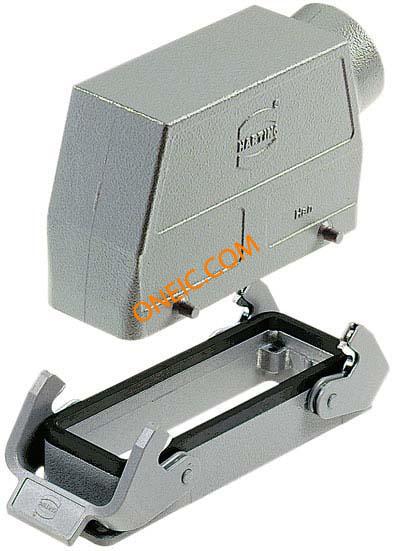

09300240231

制造商	HARTING Technology Group
描述	HAN B BASE HC 2 LEVER 1 P Heavy Duty Power Connectors HAN 24B PG29 SIDE METAL 2 LEVERS Hood; Metal; 144 mm L x 57 mm W x 81 mm H; Two Lever; RoHS Compliant Hood;Metal;144mmLx57mmWx81mmH;TwoLever;RoHSCompliant Han B Housings: Han B Base Surface HC 2 Levers 1 Entry P Harting Han B 系列电源连接器 , 表面安装
分类	连接器解决方案重载连接器重载连接器

对参数有疑问？问 AI 助手

商业参数

零件号别名	0231 024 09 09-30-024-0231 30	产品类别	Heavy Duty Power Connectors
标准包装数量	1	工厂包装数量	10

合规参数

RoHS

Not Applicable

机械参数

尺寸	24B	包装方式	Bulk
螺纹尺寸	PG29	重量（g）	434.00000
外壳颜色	Gray	安装类型	表面安装
连接器类型	Base - Box Mount	外壳涂层	Powder Coated
安装样式	Side	插入力	Female
壳体材料	Aluminum, Die Cast	尺寸/外形	5.669" L x 2.244" W x 3.181" H (144.00mm x 57.00mm x 80.80mm)
端接样式	Cable	触点数	1

产品信息

类型	CONNECTORS	样式	Side Entry
系列	Han B	产品子类型	Housings
锁定位置	Locking Clip on Base Bottom	基础产品编号	930

环境参数

防护等级

IP65 - Dust Tight, Water Resistant

工作温度

-40°C ~ 125°C
