点击放大查看

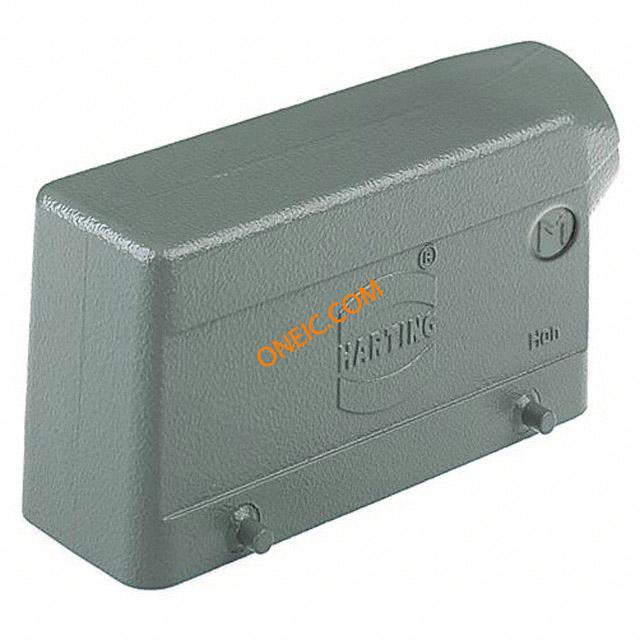

19300241521

制造商	HARTING Technology Group
描述	Connector Accessories Hood Metal Heavy Duty Power Connectors HAN 24B M25 SIDE METAL HOOD HAN B HOOD SIDE LC 4 PEGS M25 Low type side entry metric hood,M25 24B HOOD, 24B, SIDE ENTRY, M25 HANBHOODSIDEENTRYLC4PEGSM25 Enclosure: for rectangular connectors; Han; size 24B; for cable Han B Hoods: Han B Hood Side Entry LC 4 Pegs M25 Harting Han B 系列侧入电源连接器
分类	连接器解决方案重载连接器重载连接器

对参数有疑问？问 AI 助手

商业参数

其他名称	1195-3140	零件号别名	019 019-30-024-1521 024 1521 30
产品类别	Heavy Duty Power Connectors	标准包装数量	1
工厂包装数量	1

合规参数

RoHS	Lead free / RoHS Compliant	SVHC	:No SVHC (20-Jun-2013)
欧盟RoHS	Compliant	海关税号	85369010

电气参数

工作电压

:250V

机械参数

尺寸	24B	深度	56
宽度	:56mm	长度	:62.5mm
重量	0.24	材料（通用）	:Metal
包装方式	Bulk	出线方向	:Side
方向	angled	螺纹尺寸	M25
重量（g）	223.00000	外壳颜色	Gray
衬套螺纹	M25	连接器类型	Hood
外壳涂层	Powder Coated	安装样式	Side
封装形式	size 24B	锁定特性	for double latch
本体材料	:Metal	壳体材料	Aluminum, Die Cast
包装数量	2	尺寸/外形	4.724" L x 1.693" W x 2.461" H (120.00mm x 43.00mm x 62.50mm)
端接样式	Cable	连接器颜色	:Powder Coated, RAL 7037 Grey
外壳尺寸-插件	:24B	供应商器件封装	for rectangular connectors
外壳与棱镜材料	aluminium alloy

产品信息

SPG	2	类型	Hood
样式	Side Entry	系列	Han B
CAD图纸	3D CAD Model	产品子类型	Hoods
锁定位置	Locking Clip on Base Bottom	附件类型	Hood
适配器系列	Han	单元数量	1
适用产品/相关产品	:Standard Han Connectors

环境参数

防护等级

IP65 - Dust Tight, Water Resistant

工作温度

-40°C ~ 125°C
