点击放大查看

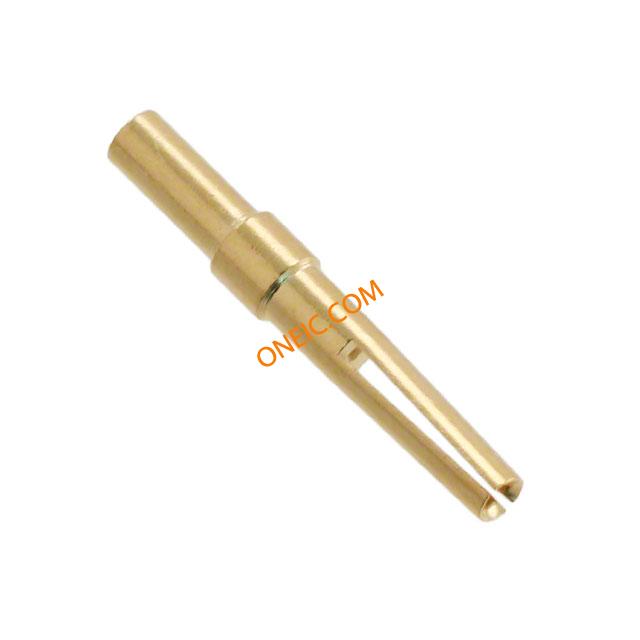

09670005476
| 制造商 | |
| 描述 | Contact SKT Crimp ST Cable Mount Individual CONTACT SKT 22-26AWG GOLD CRIMP Turned contact 22-26 AWG F D-Sub Contacts D SUB FE turned cont AWG 22-26 PL1 DSUBFEturnedcontactAWG22-26_PL1 Harting D-Sub Standard 系列 母 压接端接 圆形 连接器 触芯, 使用于D-sub 连接器, 26 → 22 AWG 线规格 |
| 分类 |
商业参数
| 零件号别名 | 000 09 09-67-000-5476 5476 67 | 标准包装数量 | 1 |
| 工厂包装数量 | 100 | ||
合规参数
| RoHS | Lead free / RoHS Compliant | 欧盟RoHS | Compliant |
机械参数
| 长度 | 13.6mm | 镀层 | Gold |
| 包装方式 | Individual | 导线线规 | 22-26 AWG |
| 屏蔽类型 | No | 端接方式 | Crimp |
| 重量（g） | 0.22000 | 触点尺寸 | 1.8mm |
| 触头类型 | Signal | 安装类型 | Cable Mount |
| 插针或插孔 | Socket | 连接器类型 | Connector Rectangular |
| 接触镀层 | Gold | 触头材料 | Copper Alloy |
| 总长度 | 13.6 | 端接排数 | 压接 |
| 接触件端接 | Crimp | 线规或范围 - mm² | 26 → 22 AWG |
产品信息
| 类型 | Machined | 连接器性别 | SKT |
| 系列 | D-Sub Standard | 适用产品/相关产品 | D-Sub Connector |
环境参数
| 工作温度 | 125 | ||
相关型号
21038822425
HARTING
Circular Metric Connectors PFT M12 CRMP SHIELD D-DCODE 4POL FEM Conn Circular 4 POS Crimp ST Panel Mount 4 Terminal 1 Port CONN HSG RCPT 4POS PNL MNT SKT 4 Pole Female Straight Panel Mount Industrial & Automation Circular Connector Han M12 Crimp: PFT M12 crimp shielded D-cod.4pol.female Harting 4路 面板安装 直向 连接器 插座

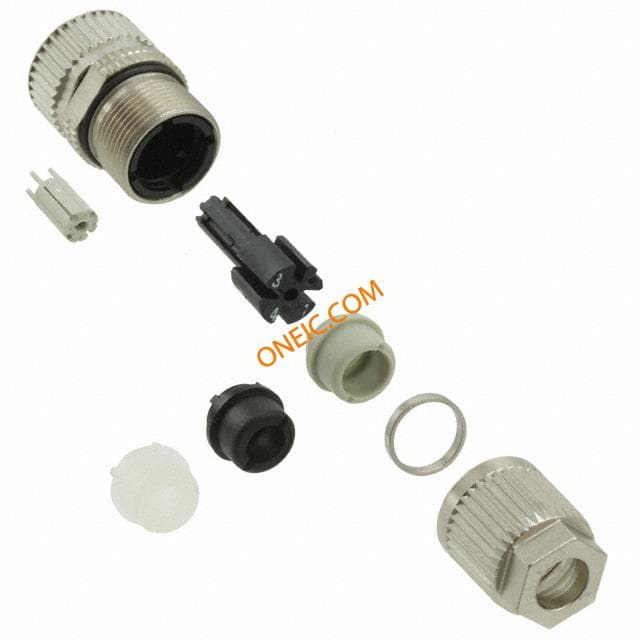

21038122405
HARTING
Circular Metric Connectors CIRCULAR CONNECTOR M12CRIMP FML A-CODE CONN HSG RCPT 4POS CABLE SKT 4 Pole Male Straight Cable Mount Industrial & Automation Circular Connector with Female Contacts CIRCULARCONNECTORM12 Han M12 Crimp: Circular ConnectorM12crimp female A-Code Harting 4路 电缆安装 直向 连接器 插头 , 母触点

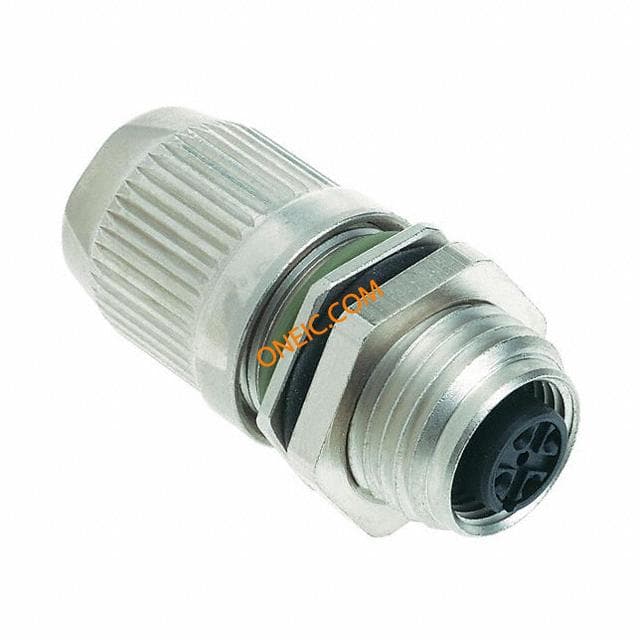

21038222425
HARTING
Circular Metric Connectors PFT M12 CRIMP SHIELD A-COD.4POL.FEM CONN HSG RCPT 4POS PNL MNT SKT
09140083111
Harting Technology Group
Conn Housing F 8 POS Crimp ST Cable Mount HAN GIGABIT CONT CARRIER FEMALE Female Gigabit module Heavy Duty Power Connectors FEMALE GIGIBIT INSRT FEMALECONNECTOR Han-Modular Contacts: Han GigaBit module female 8 + shielding Harting HAN Modular 系列 2 行 8 路 母座 RJ45-Rangierfeld
21038822405
Harting
CIRCULAR CONN M12 CRIMP FEMALE CONN HSG RCPT 4POS CABLE SKT 4 Pole Female Straight Cable Mount DIN Connector 21038822405 Circular Metric Connectors CIRCULAR CONNECTOR M12CRIMP FML D-CODE CIRCULARCONNECTORM12 Han M12 Crimp: Circular ConnectorM12crimp female D-Code Harting 4路 直向 Din 插座 插座 电缆安装

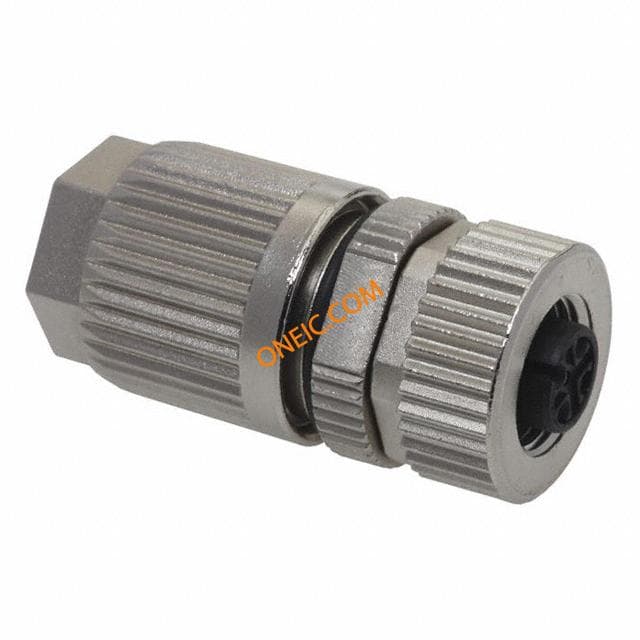

21038122505
Harting
CIRCULAR CON. M12CRIMP FEMALE CONN HSG RCPT 5POS CABLE SKT Circular Metric Connectors CIRCULAR CON. M12 CRIMP FML A-CODE5POL Han M12 Crimp: Circular Con. M12crimp female A-Code5pol
09120113111
Harting
Ethernet & Telecom Connectors .HAN Q-DATA RJ45-F HAN Q-DATA RJ45-F Modular Connectors / Ethernet Connectors .HAN Q-DATA RJ45-F INSERT W/RJ45 FEMALE 8P8C+10P Han Q Female Insert: Han Q-Data RJ45-F

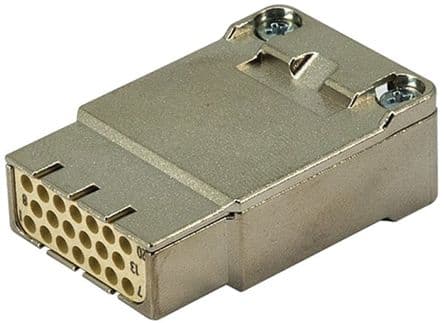

09140203113
