点击放大查看
570-260-002
| 制造商 | |
| 描述 | WIRE SEAL FOR 570 SERIES CONN BL Heavy Duty Power Connectors 568/570 WIRE SEAL BLUE .079 - .102 WIRE SEAL, 2.7MM DIA MAX, BLUE, 6MM LONG WIRE SEAL, 1.7-2.1MM, BLUE Seal for wire; 570; IP67; Gasket: silicone rubber; 2÷2.6mm Wire Seal 6 mm light blue, 570-260-002, Edac EDAC 570 系列 电线密封, 使用于防水连接器 |
| 分类 |
商业参数
| 产品类别 | Heavy Duty Power Connectors | 标准包装数量 | 280 |
| 工厂包装数量 | 100 | ||
合规参数
| RoHS | RoHS Compliant | SVHC | :No SVHC (20-Jun-2013) |
| 海关税号 | 85369010 | ||
机械参数
| 重量 | 0 | 包装方式 | Bulk |
| 外壳镀层 | :Silicone Rubber | 线径 | 2...2.6mm |
| 连接器用途 | seal for wire | 包装数量 | 100 |
| 绝缘材料 - 材质 | silicone rubber | 外径-未扩张 | :2.7mm |
产品信息
| SPG | 100 | 系列 | :- |
| 产品特性 | Splash-Proof | 产品子类型 | Accessories |
| 附件类型 | Seal | 适配器系列 | 570 |
| 单元数量 | 1 | 适用产品/相关产品 | 570 Series |
环境参数
| 防护等级 | IP67 | 工作温度 | -40...105°C |
文档与媒体
相关型号
570-003-420-101
EDAC
Automotive Connectors PLUG PCB ASSY 10A WATERPROOF CONN PLUG 3POS WATERPROOF PCB CONNECTOR, HEADER, 3POS, 1ROW
570-002-420-101
EDAC Inc
CONN PLUG 2POS WATERPROOF PCB Jones Plugs & Sockets PLUG PCB ASSY 10AMP WATERPROOF CONNECTOR, HEADER, 2POS, 1ROW Connector: wire-board; 570; socket; male; PIN:2; IP67; Locking: lock
570-001-420-101
EDAC Inc
CONN PLUG 1POS WATERPROOF PCB Headers & Wire Housings PLUG PCB ASSY 10A WATERPROOF CONNECTOR, HEADER, 1POS, 1ROW

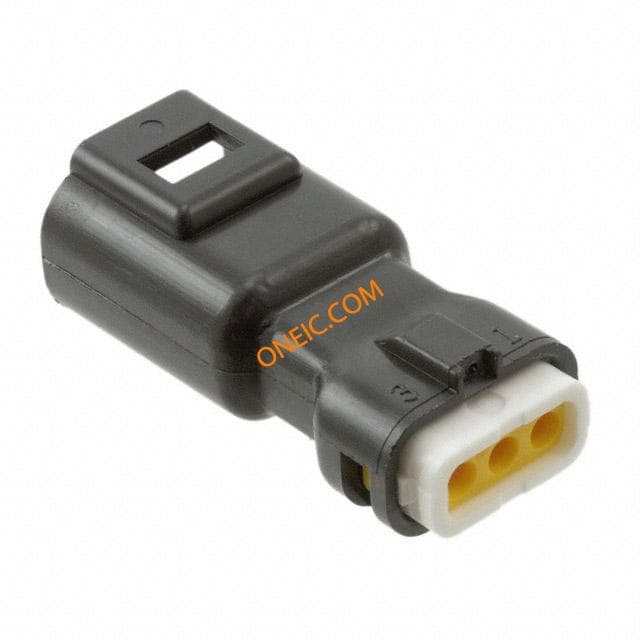

570-003-000-100
EDAC Inc
CONN PLUG 3POS WATERPROOF Rack & Panel Connectors 3POS PLUG CONNECTOR, HOUSING, PLUG, 3POS, 5.8MM CONNECTOR, PLUG, WIRE MOUNT, IP67, 3WAY Connector: wire-wire; 570; plug; male; PIN:3; IP67; Locking: lock sale
570-003-000-200
EDAC Inc
CONN RECEPTACLE 3POS WATERPROOF Rack & Panel Connectors 3POS RECEPTACLE CONNECTOR, HOUSING, RECEPTACLE, 3POS, 5.8MM CONNECTOR, RECPT, WIRE MOUNT, IP67, 3WAY Connector: wire-wire; 570; plug; female; PIN:3; IP67; Locking: lock sale
