商业参数
| 产品类别 | Rack & Panel Connectors | 标准包装数量 | 1 |
| 工厂包装数量 | 100 | ||
合规参数
| RoHS | RoHS Compliant | SVHC | :No SVHC (20-Jun-2013) |
| 海关税号 | 85369010 | 材料阻燃等级 | UL94V-0 |
电气参数
| 额定电压 | 300V | ||
机械参数
| 间距 | :5.8mm | 重量 | 0 |
| 包装方式 | Bulk | 触头类型 | Male Pin |
| 柱间距 | 5.8mm | 基体材料 | PBT |
| 安装类型 | Free Hanging (In-Line) | 连接器类型 | Plug |
| 紧固类型 | Latch Lock | 安装样式 | SMD/SMT |
| 排数 | 1 | 锁定特性 | :Latch |
| 本体材料 | :PBT (Polybutylene Terephthalate) | 包装数量 | 75 |
| 连接器 - 电缆 | plug | 触点数 | 68 |
| 接触件端接 | Crimp | 位数 | 3 |
| 绝缘材料 - 材质 | silicone rubber | ||
产品信息
| SPG | 75 | 备注 | Contacts Not Provided |
| 连接器性别 | :Plug | 系列 | :570 Waterproof |
| 产品特性 | Waterproof | 适配器系列 | 570 |
| 单元数量 | 1 | 适用产品/相关产品 | :570 Series Crimp Contacts |
环境参数
| 防护等级 | IP67 | 工作温度 | -40...105°C |
文档与媒体
相关型号
565-280-210
EDAC
Crimpers HANDTOOL - CRIMPING TOOL, CRIMP, HAND, EDAC 565/570 Crimp Tool, 565-280-210, Edac EDAC 560 and 572 系列 Hand Crimping Tool 压接工具 , 适用于22 → 28 AWG 线规格

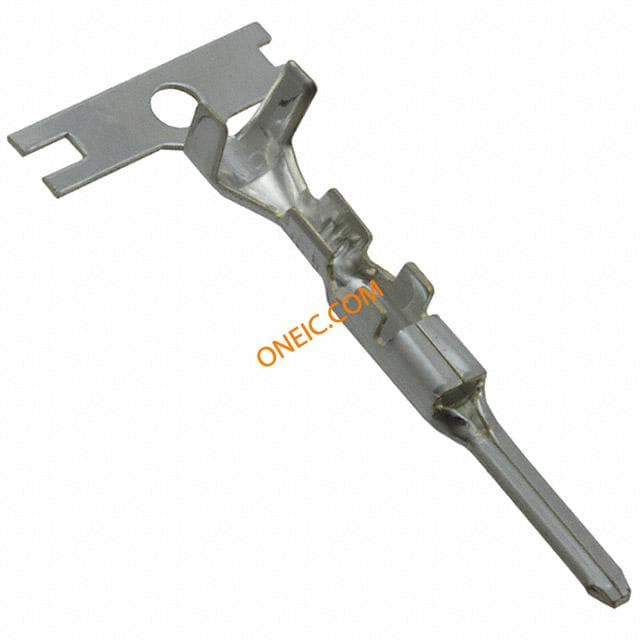

570-290-711
EDAC
Automotive Connectors 568/570 MALE CONTACT SMALL GAUGE 568/570 MALE CONTACT SMALL GAUGE CONTACT, PIN, 22-20AWG, CRIMP CONTACT, CRIMP, PIN, 22-20AWG Contact; male; 22÷28AWG; 570; tinned; crimped; for cable; 10A; brass Crimp contact, 10 A, 570-290-711, Edac
570-290-751
EDAC
Automotive Connectors MALE TERMINAL 14 AWG 567/568/570 SERIES CONNECTORS MODULAR Crimp contact, 10 A, 570-290-751, Edac

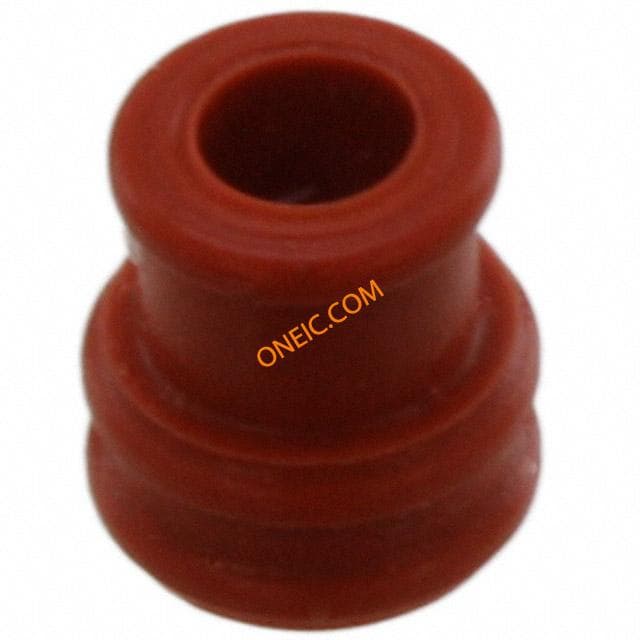

570-260-004
EDAC Inc
568/570 WIRE SEAL BRWN .106-.122 Heavy Duty Power Connectors 568/570 WIRE SEAL BROWN .106 TO .122 Cable Accessories Seal Silicon Rubber Brown WIRE SEAL, 3.1MM DIA MAX, BROWN, 5MM LONG Seal for wire; 570; IP67; Gasket: silicone rubber; 2.7÷3.1mm Wire Seal 5 mm brown, 570-260-004, Edac EDAC 570 系列 电线密封, 使用于防水连接器

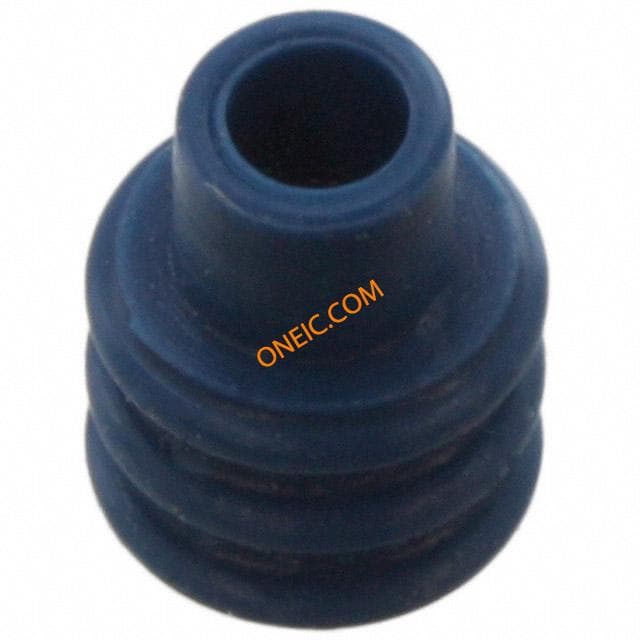

570-260-002
EDAC Inc
WIRE SEAL FOR 570 SERIES CONN BL Heavy Duty Power Connectors 568/570 WIRE SEAL BLUE .079 - .102 WIRE SEAL, 2.7MM DIA MAX, BLUE, 6MM LONG WIRE SEAL, 1.7-2.1MM, BLUE Seal for wire; 570; IP67; Gasket: silicone rubber; 2÷2.6mm Wire Seal 6 mm light blue, 570-260-002, Edac EDAC 570 系列 电线密封, 使用于防水连接器
570-260-003
EDAC Inc
568/570 WIRE SEAL BLUE .083-.106 Heavy Duty Power Connectors 568/570 WIRE SEAL BLUE .083 TO .106 WIRE SEAL, 2.7MM DIA MAX, BLUE, 6.7MM LONG WIRE SEAL, 2.1-2.7MM, BLUE Seal for wire; 570; IP67; Gasket: silicone rubber; 2.1÷2.7mm Wire Seal 6.7 mm blue, 570-260-003, Edac EDAC 570 系列 电线密封, 使用于防水连接器

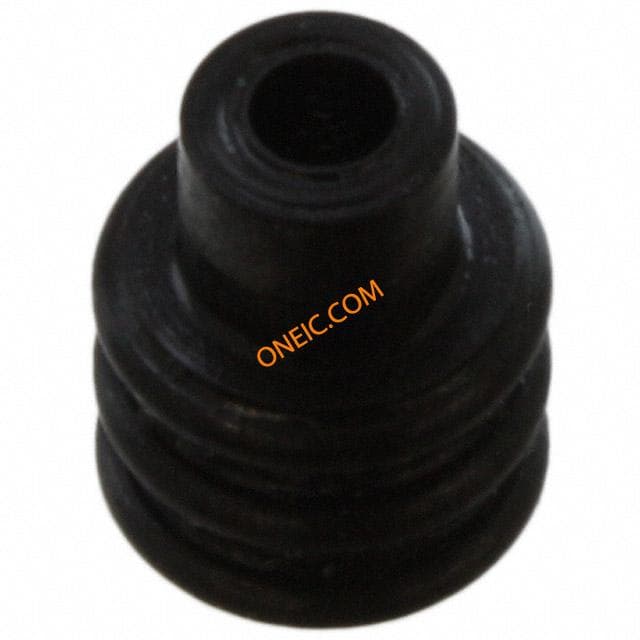

570-260-001
EDAC Inc
568/570 WIRE SEAL BLCK .067-.075 Heavy Duty Power Connectors 568/570 Wire Seal Blk .067 - .075 WIRE SEAL, 2.1MM DIA MAX, BLACK, 6MM LONG WIRE SEAL, 1.7-2.1MM, BLACK Seal for wire; 570; IP67; Gasket: silicone rubber; 1.7÷1.9mm Wire Seal 6 mm black, 570-260-001, Edac EDAC 570 系列 电线密封, 使用于防水连接器
570-290-731
EDAC Inc
CONN TERM MALE Rack & Panel Connectors 568/570 MALE CONTACT LARGE GAUGE Contact PIN Crimp ST Cable Mount CONTACT, PIN, 20-16AWG, CRIMP CONTACT, CRIMP, PIN, 20-16AWG Contact; male; 16÷22AWG; 570; tinned; crimped; for cable; 10A; brass Crimp contact, 10 A, 570-290-731, Edac

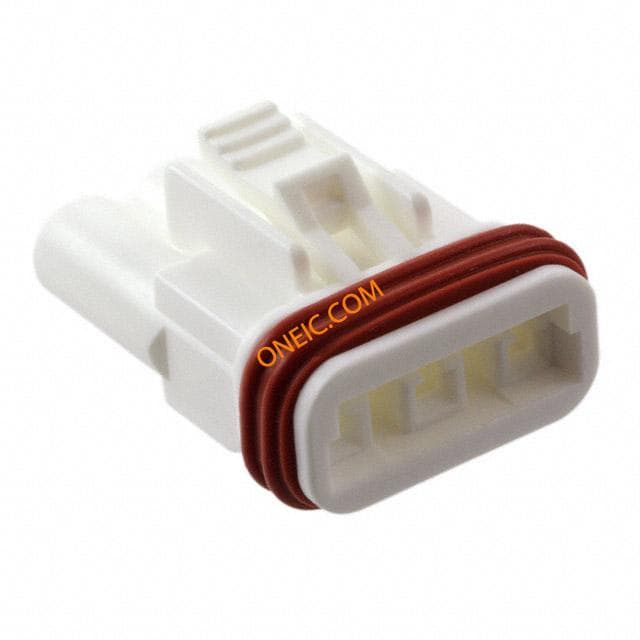

570-003-000-200
EDAC Inc
CONN RECEPTACLE 3POS WATERPROOF Rack & Panel Connectors 3POS RECEPTACLE CONNECTOR, HOUSING, RECEPTACLE, 3POS, 5.8MM CONNECTOR, RECPT, WIRE MOUNT, IP67, 3WAY Connector: wire-wire; 570; plug; female; PIN:3; IP67; Locking: lock sale
