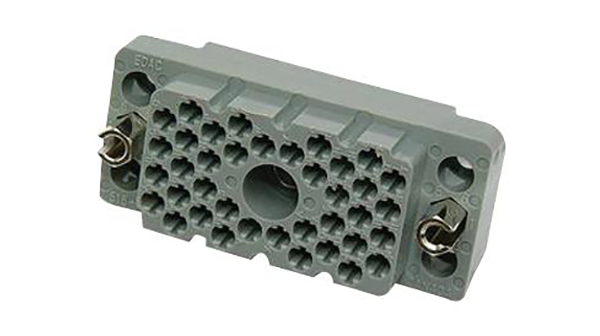

516-056-000-321
| 制造商 | |
| 描述 | CONN PLUG 56POS RACK & PANEL Rack & Panel Connectors 56P PLUG PLASTIC CVR SIDE ENTRY Plug housing Pitch3.81 mm Poles 56 for panel mount / For hermaphroditic contacts 516, 516-056-000-321, Edac |
| 分类 |
商业参数
| 产品类别 | Rack & Panel Connectors | 标准包装数量 | 25 |
| 工厂包装数量 | 1 | ||
合规参数
| RoHS | RoHS Compliant | 材料阻燃等级 | UL 94 V-0 |
电气参数
| 测试电压 | 2000 | 极数 | 56 |
| 接触电阻 | 10 mOhm | 最大额定电流 | 8.5 A |
| 绝缘电阻 | 5000 MOhm | ||
机械参数
| 颜色 | Gray | 间距 | 0.150" (3.81mm) |
| 包装方式 | Bulk | 触头类型 | Socket |
| 安装类型 | Varies by Contact | 连接器类型 | Housing for Non Gendered Contacts |
| 接触镀层 | Gold | 排数 | 9 |
| 连接器样式 | Rack and Panel | 连接器用途 | Plug |
| 触头材料 | Phosphor Bronze | 壳体材料 | Polycarbonate (PC) |
| 连接器颜色 | grey | 触点数 | 56 |
| 位数 | 56 | ||
产品信息
| 备注 | Contacts Not Provided | 系列 | 516 |
| 产品特性 | Backshell, Jackscrew, Guide Pin | 产品子类型 | Plug Connectors |
| 连接方式 | Wire-Wire | ||
环境参数
| 工作温度 | -65...+105 °C | ||
